Clé Caractéristiques
  • Impressively large, yet seamless view
  • All-in-One design without complicated setup
  • Easy delivery, installation, and maintenance
  • Engaging front-facing presentation solution
  • Flexible wireless content sharing solution

LD216-251
Produit Description
The ViewSonic® LD216-251 is an innovative 216” All-in-One Direct View LED display that complements the design of high-end, enterprise conference rooms and lobbies. With 120% Rec. 709 wide color gamut, millions of mounted tiny LEDs for direct image production, and an ultra-slim 3.5 cm thickness & bezel-free seamless design, the LD216-251 offers greater color, brightness, and contrast performance, giving viewers a magnificent visual impact. The All-in-One large screen display boasts easy delivery, installation, and maintenance with front-assembly modular design. The built-in screen sharing software enables multiple meeting presenters to cast out content wirelessly, whether using laptops, phones, or tablets. Compatible with AV control systems, the ViewSonic® LD216-251 enables IT personnel to remotely setup and configure.

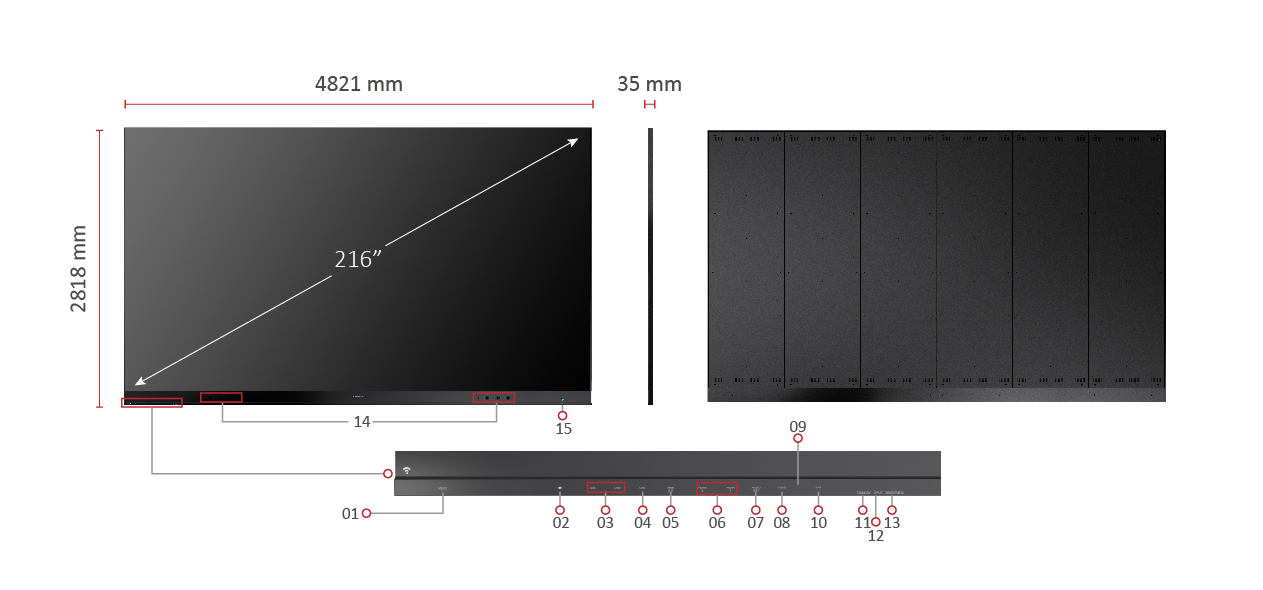

  1. RS-232
  2. Ambient Light Sensor
  3. USB 2.0 (5V/0.5A)
  4. USB 3.0 (5V/1A)
  5. HDMI Out
  6. HDMI In
  7. Audio Out
  8. USB-B (Service)
  9. IR Receiver
  10. LAN
  11. Menu Control: Stand-by
  12. Menu Control: Input Source
  13. Menu Control: Brightness Level
  14. Speakers
  15. Power Button
Visitez Nous
  • www.viewsonic.com
  • SPéCIFICATIONS
    Screen Size: 216''
    Surface d'affichage (mm): 4800 (H) x 2700(V)
    Résolution native: 1920x1080
    Panel Technology: Direct view LED
    Bonding Wire: Gold
    Pixel Pitch (mm): 2.50
    Refresh Rate: 4440Hz
    Brightness (max.): 600 nits (8 levels adjustable)
    Contrast Ratio (typ.): 6000:1
    Orientation: Landscape
    Viewing Angles (typ.): H = 160, V = 160
    LED Lifetime (typ.): 100,000 Hours
    Stockage local: Total 32GB
    (26GB available storage)
    Prise en charge de la résolution: HDMI(640 x 480) to
    1080p(1920 x 1080)
    Compatibilité HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Fréquence horizontale: 31K-94kHz
    Fréquence de balayage vertical: 56-85Hz
  • ENTRéE
    HDMI: x2
    (HDMI 1.4, HDCP 1.4)
    USB Type A: x3
    (USB3.0 x1, USB2.0 x2)
    RJ45 Input (Internet): x1
    Wi-Fi Input: 2.4G/5G Hz
  • SORTIE
    HDMI out: x1
    (HDMI 1.4, HDCP 1.4)
    Haut-parleur: 5W*2
    Sortie audio (3,5 mm): x1
    USB Type A (Alimentation): Shared with USB input
    (5V/1A x1, 5V/0.5A x2)
  • CONTRôLE
    RJ45 (LAN control): x1(shared with internet)
    USB Type A (Services): x1
    (shared with USB A input)
    USB Type B (Debug): x1
    RS232 (DB 9-pin female): x1
    IR Receiver: x1
  • AUTRES
    Tension d'alimentation: 100-120V/30A~ 50/60Hz
    220-240V/15A~ 50Hz
    (vary by country)
    Consommation électrique: 3430W (typ), 4900W (max)
    < 0.5W (Sleep), < 0W (Off)
    Température de fonctionnement: 0~40℃
    LED Module Quantity: 128
    Ingress Protection Rating: IP30
    Poids net: 750 lbs
    (340kg)
    Gross Weight: 992 lbs
    (450kg)
    Screen Dimensions (WxHxD): 189.8x110.9x1.4 inches
    (4820.95x2818.45x 35mm)
    Screen Dimensions (WxHxD) with wall mount: 189.8x110.9x2.2 inches
    (4820.95x2818.45x 56mm)
    Packing Dimensions: 109.4x33.5x40.2 inches
    (2780x850x1020mm)
  • STANDARD ACCESSORIES
    Cordon d'alimentation: x1
    USB Cable (A-B): x1
    Télécommande: x1
    Guide de démarrage rapide: x1
    Montage mural: x1
    Spare Parts: LED PCB Unit x7
    Maintenance Tool: LD-MK-001 x1
  • OPTIONAL ACCESSORIES
    Maintenance Tool: LD-MK-001
    ViewBoard Cast Button(USB-C): VB-WPS-001
    ViewBoard Cast Button(USB-A+HDMI): VB-WPS-003
