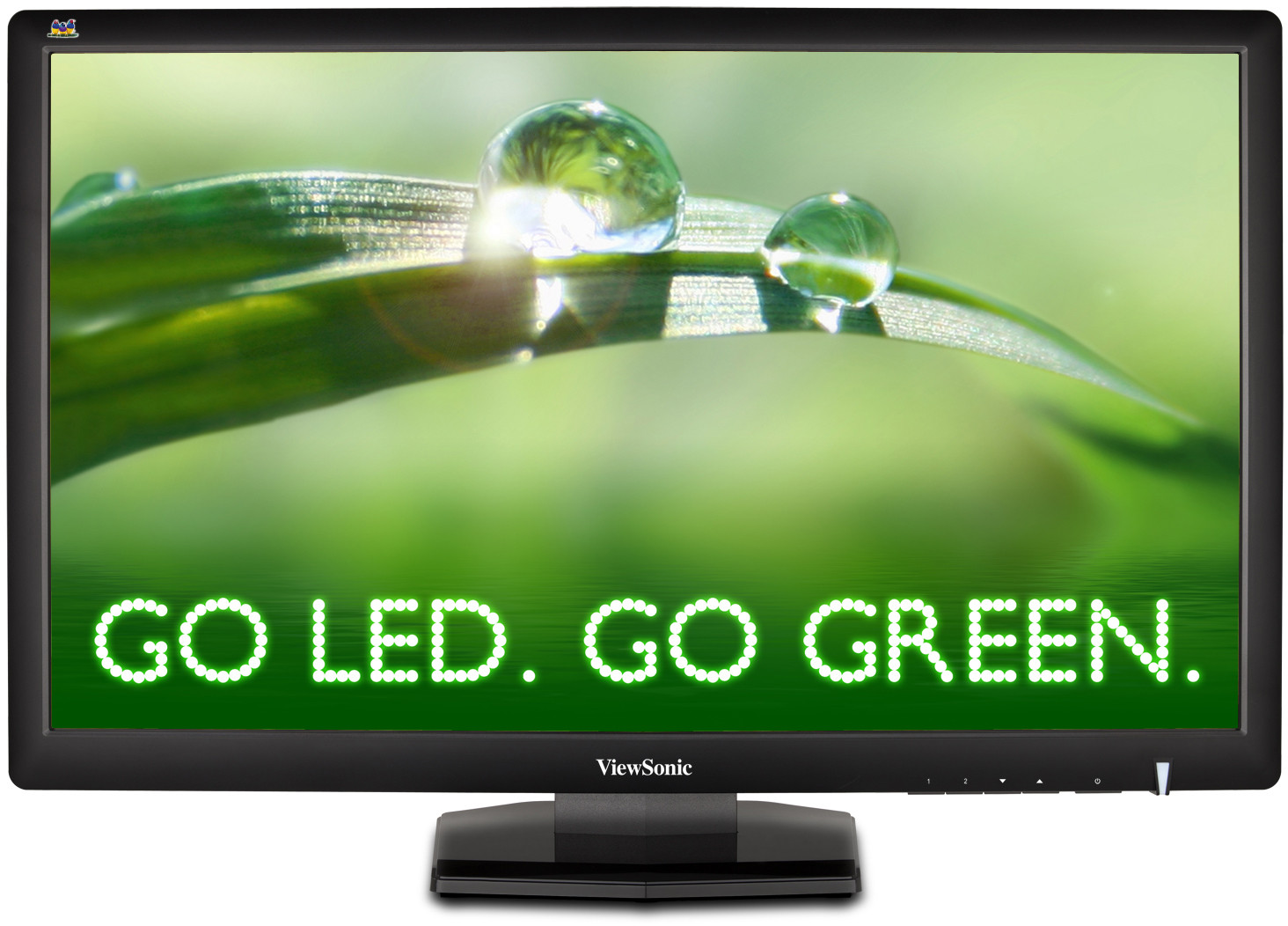

ViewSonic VX2703mh-LED 68.6cm / 27” LED Full HD 1080p Display

Key Features

Product Description

Remove boundaries and immerse yourself in a sensational audiovisual experience with the brand-new VX2703mh-LED. This 27” LED display, featuring a Full HD 1080p resolution, provides crystal clear image quality in a high 20,000,000:1 Dynamic Contrast Ratio. For significantly darker and brighter image contrasts, the VX2703mh- LED delivers an immersive viewing experience for multimedia heavy users. An embedded HDMI input along with advanced SRS Premium Sound® effects makes images and videos for movies, games, online material or any high definition multimedia content life-like and exciting. Enjoy the beauty of vivid video quality in a higher level of visual and auditory quality. The VX2703mh-LED redefines personal entertainment by bringing an immersive viewing adventure.

Visit Us

www.viewsonic.com

LCD

Optimum Resolution:	1920 x 1080
Contrast Ratio:	1,200:1 (typ.)
Viewing Angles:	170° / 160° (typ.)
Response Time:	Tr+Tf: Typ. 3.4 ms
Panel Surface:	Anti-glare type, 3H hardness
Display Area:	68.6cm / 27” wide
Pixel Pitch:	0.3114 mm x 0.3114 mm
Brightness:	300 cd / m²
Dynamic Contrast Ratio:	20,000,000:1
Backlight:	White-light LED
Backlight Life:	30,000 hours (min.)

AUDIO

Speakers: 2W x 2
COMPATIBILITY

PC: VGA up to 1920 x 1080

Mac®: MAC up to 1920 x 1080

CONNECTOR

Power:	Internal Power Board , 3-pin Plug (CEE22) x 1
Video:	Analog: D-sub x 1 Digital: DVI- D *1, HDMI 1.3 x 1
Audio Out:	3.5mm Mini Phone Jack Audio (Blue) x 1
Audio Input:	3.5mm Mini Phone Jack Audio (Green) x 1

DIMENSIONS

Physical With Stand: 644 x 436 x 174mm (23.35” x 17.18” x 6.83”)(W x H x D)

Physical Without Stand: 644 x 390.9 x 55.8mm (25.35” x 15.38” x 2.19”)(W x H x D)
INPUT

Frequency: Fh = 24 ~ 83 kHz ; Fv = 50 ~ 76 Hz

Sync: Separate Sync / Composite Sync / SOG

Analogue: RGB analog (75 Ω, 0.7 / 1.0 Vp-p)
POWER

Eco Mode: Optimize: 23W (Typ.)

Conserve:17W (Typ.)

Voltage: AC 100 - 240V (universal); 50 / 60 Hz

Consumption: 28W (Typ.) / 36W (Max.)
VESA® MOUNT

100mm x 100mm
ERGONOMICS

Tilt: 16° ~ -3°
WEIGHT

Net With Stand: 5.43 Kg (11.97 lbs)

Net Without Stand: 4.93 Kg (10.87 lbs)
OPERATING CONDITIONS

Humidity: 20% to 90% (no condensation)

Temperature: 32° F to 104° F (0° C to 40° C)

Physical With Stand:	644 x 436 x 174mm (23.35” x 17.18” x 6.83”)(W x H x D)
Physical Without Stand:	644 x 390.9 x 55.8mm (25.35” x 15.38” x 2.19”)(W x H x D)

Frequency:	Fh = 24 ~ 83 kHz ; Fv = 50 ~ 76 Hz
Sync:	Separate Sync / Composite Sync / SOG
Analogue:	RGB analog (75 Ω, 0.7 / 1.0 Vp-p)

Eco Mode:	Optimize: 23W (Typ.) Conserve:17W (Typ.)
Voltage:	AC 100 - 240V (universal); 50 / 60 Hz
Consumption:	28W (Typ.) / 36W (Max.)

Net With Stand:	5.43 Kg (11.97 lbs)
Net Without Stand:	4.93 Kg (10.87 lbs)

Humidity:	20% to 90% (no condensation)
Temperature:	32° F to 104° F (0° C to 40° C)

PC:	VGA up to 1920 x 1080
Mac®:	MAC up to 1920 x 1080
