Key Features

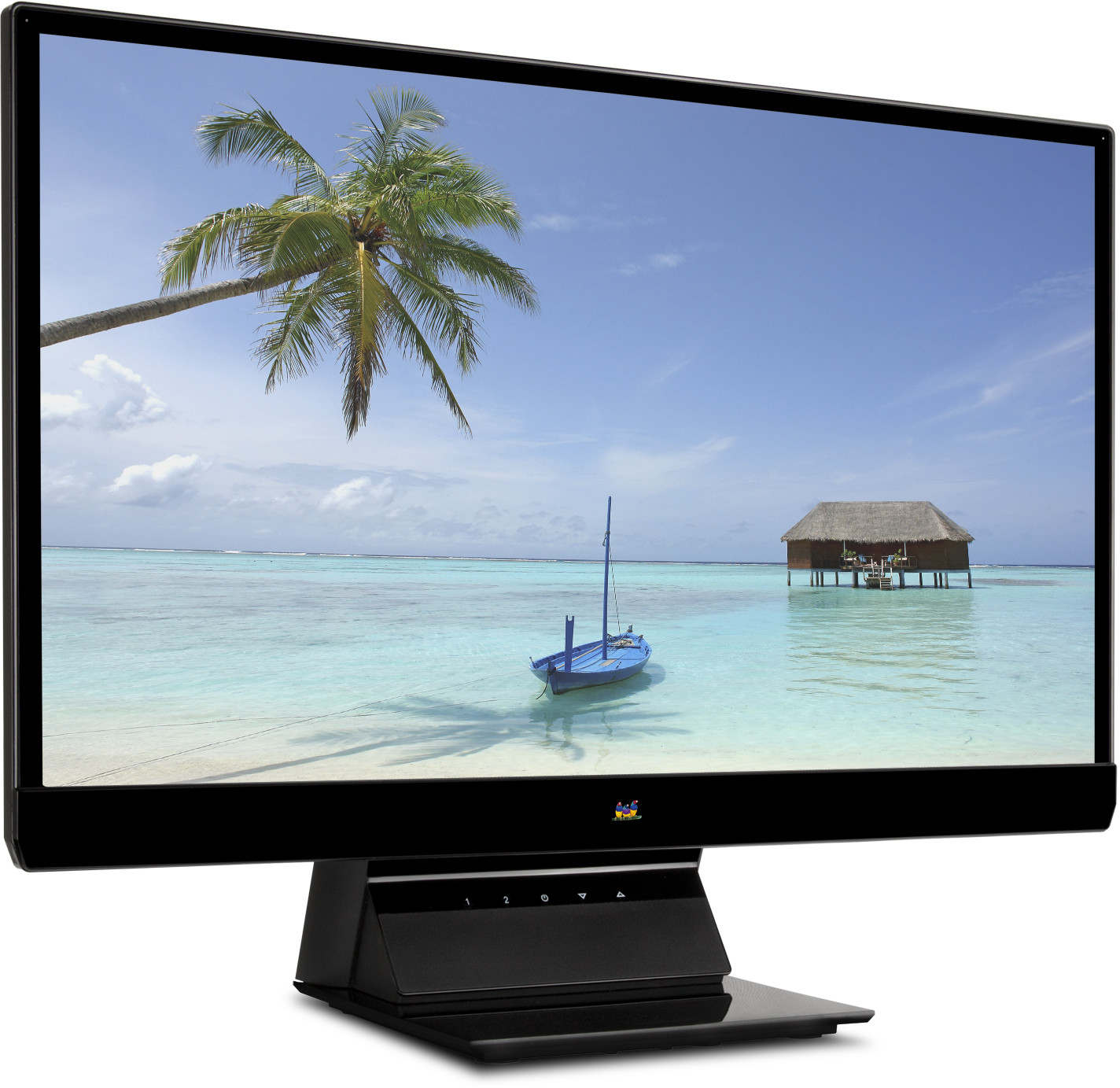

VX2370Smh-LED
Product Description
Visit Us
  • www.viewsonic.com
  • LCD
    Contrast Ratio: 1,000:1 (typ.)
    Viewing Angles: 178° horizontal / 178° vertical (typ.)
    Display Area: 58cm (23”) wide
    Optimum Resolution: 1920 x 1080
    Response Time: 7ms GtG.
    Panel Surface: Anti-glare Type, 3H Hardness
    Pixel Clock: 0.265 mm x 0.265 mm
    Brightness: 250 cd / m²
    Dynamic Contrast Ratio: 30,000,000:1
    Backlight: White-light LED
    Backlight Life: 30,000 hours (min.)
  • COMPATIBILITY
    PC: VGA up to 1920 x 1080 non-interlaced
    Mac®: MAC up to 1920 x 1080
  • DIMENSIONS
    Physical With Stand: 532 x 409 x 180mm (20.94” x 16.10” x 7.08”)(W x H x D)
  • AUDIO
    Speaker: 1.5W x 2
  • INPUT
    Sync: Separate Sync / Composite Sync / SOG
    Analogue: RGB analogue (75 Ω, 0.7 / 1.0 Vp-p)
    Digital: DVI / HDMI (TMDS, 100 Ω)
    Frequency: Fh = 24 ~ 83 kHz ; Fv = 50 ~ 76 Hz
  • CONNECTOR
    Video: Analogue: D-sub x 1

    Digital: DVI- D x 1, HDMI 1.3 x 1
    Audio Out: 3.5mm Mini Phone Jack Audio (Blue) x 1
    Power: External Power Adapter
    Audio Input: 3.5mm Mini Phone Jack Audio (Green) x 1
  • POWER
    Voltage: AC 100 - 240V (universal); 50 / 60 Hz
    Consumption: 27W (typ.)
    Save mode: <0.5W
  • ERGONOMICS
    Tilt: 20° ~ -5°
  • WEIGHT
    Net With Stand: 3.9 Kg (8.59 lbs)
  • OPERATING CONDITIONS
    Humidity: 20% to 90% (no condensation)
    Temperature: 32° F to 104° F (0° C to 40° C)
