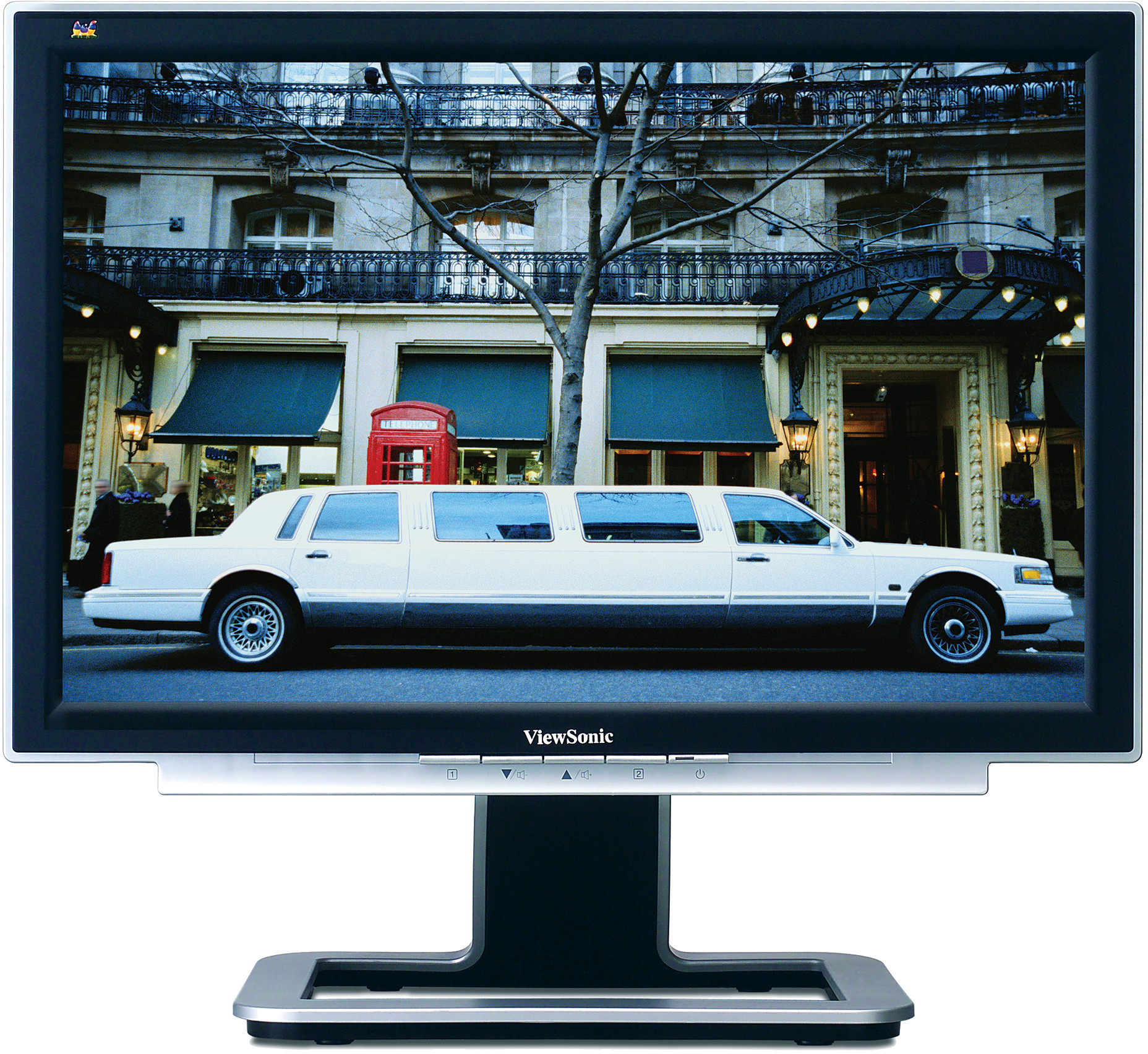

ViewSonic VX2025wm 20.1" WIDE-SCREEN LCD MONITOR WITH 8MS CLEARMOTIV™ BROADCAST QUALITY

LCD

Type:	20.1” Wide MVA colour TFT active matrix WSXGA+ LCD
Contrast Ratio:	800:1 (typ.)
Viewing Angles:	176° horizontal, 176° vertical (at 10:1)
Display Area:	43.3cm horizontal x 27.1cm vertical; 51.1cm diagonal
Optimum Resolution:	1680 x 1050
Response Time:	8ms (Grey-to-Grey) (typ.), 16ms (off-on-off) (typ.)
Light Source:	Long life, 40000 hrs. (typ.)
Panel Surface:	Anti-glare
Pixel Pitch:	0.258mm
Colour Support:	16.7M colours (8-bit)
Pixel Clock:	205MHz analogue, 165MHz digital
Brightness:	300cd/m²

COMPATIBILITY

PC: VGA up to 1680 x 1050 non-interlaced (max. 60Hz)

Mac®: Power Mac™ G3/G4/G5 up to 1680 x 1050 non-interlaced (max. 60Hz)
DIMENSIONS

W x H x D mm: 485 x 441 x 201 (with stand)
485 x 340 x 67 (without stand)
PACKAGE CONTENTS

LCD Monitor, power cable, 15-pin VGA video cable, DVI cable, Quick Start Guide,
ViewSonic Wizard CD-ROM (User Guide/drivers)
WARRANTY

Please see: www.viewsoniceurope.com/UK/Support/warranty.htm
INPUT

Sync: H/V separate (TTL), composite, sync on green

Analogue: RGB analogue (0.7 Vp-p, 75 ohm)

Digital: DVI-D (TMDS, 100 ohm)

Frequency: Fh: 30 – 82kHz, Fv: 50 – 75Hz
CONNECTOR

Analogue: Power Mac™ G3/G4/G5 up to 1680 x 1050 non-interlaced (max. 60Hz)

Digital: 24-pin DVI-D (detachable cable)

Audio: 3.5mm stereo audio line-in

Power: 3-pin AC plug (CEE22)
POWER

Voltage: AC 100 – 240V, 50/60Hz (auto switch), internal power supply

Consumption: 35 watt (max.), <1 watt in power save mode

CONTROLS

Basic:	Down 5°, Up 20°
OSD:	Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), ViewMatch® colour adjust (sRGB, 9300K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall

OPERATING CONDITIONS

Temperature: 0°C – 40°C

Humidity: 10% – 90% (non-condensation)
WEIGHT

Net: 6.3kg (with stand)
POWER MANAGEMENT

Meets TCO’99 and ENERGY standards
SECURITY

Kensington® security port
VESA MOUNT COMPLIANT

VESA® FPMPMI 100mm x 100mm
ERGONOMICS

Tilt: Down 5°, Up 20°
AUDIO

Speakers: Integrated invisible stereo speakers

PC:	VGA up to 1680 x 1050 non-interlaced (max. 60Hz)
Mac®:	Power Mac™ G3/G4/G5 up to 1680 x 1050 non-interlaced (max. 60Hz)

Sync:	H/V separate (TTL), composite, sync on green
Analogue:	RGB analogue (0.7 Vp-p, 75 ohm)
Digital:	DVI-D (TMDS, 100 ohm)
Frequency:	Fh: 30 – 82kHz, Fv: 50 – 75Hz

Voltage:	AC 100 – 240V, 50/60Hz (auto switch), internal power supply
Consumption:	35 watt (max.), <1 watt in power save mode

Temperature:	0°C – 40°C
Humidity:	10% – 90% (non-condensation)

Analogue:	Power Mac™ G3/G4/G5 up to 1680 x 1050 non-interlaced (max. 60Hz)
Digital:	24-pin DVI-D (detachable cable)
Audio:	3.5mm stereo audio line-in
Power:	3-pin AC plug (CEE22)
