Key Features

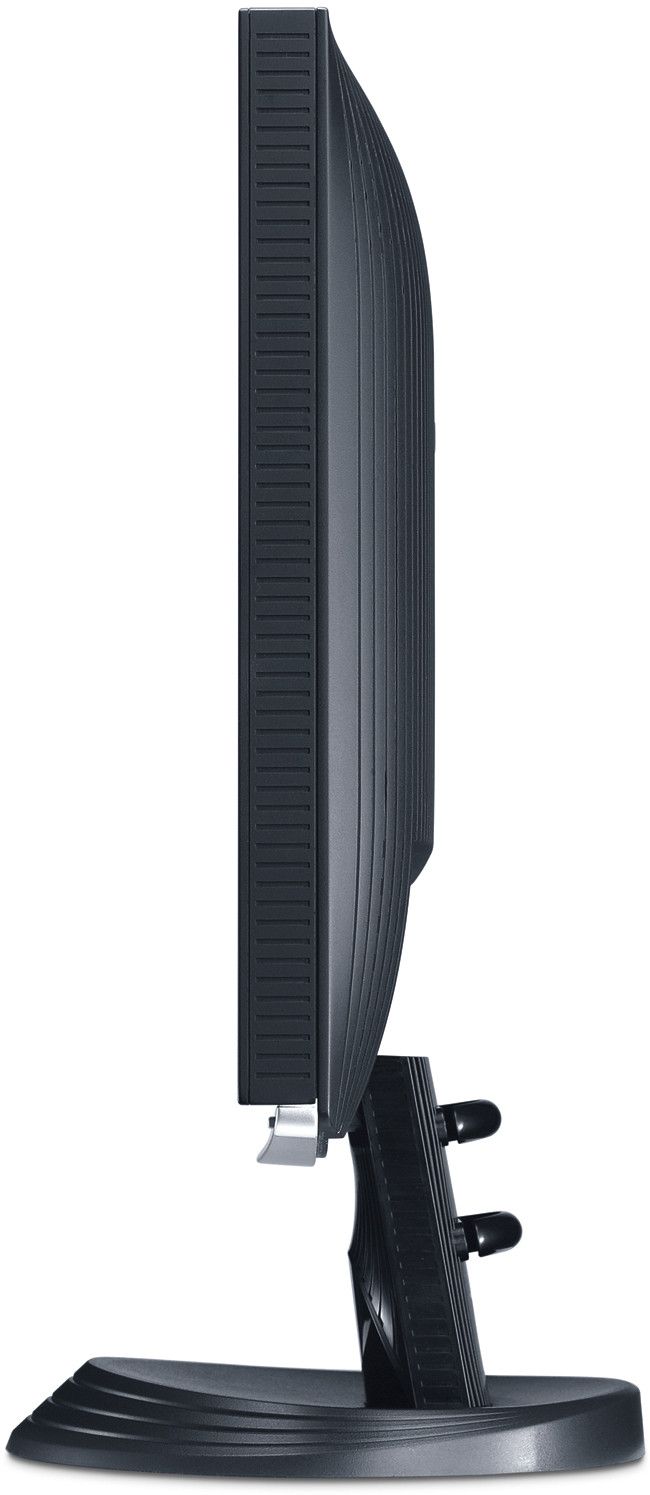

VX1940w-4
Product Description
ViewSonic’s 49 cm / 19"VX1940w widescreen LCD delivers unparalleled performance with video response as fast as 2ms, 3000:1 DYNAMIC CONTRAST RATIO (typ.) and SUPER-HD 1680 x 1050 RESOLUTION. Games, HD movies, videos and graphic-intensive applications have never looked better on your desktop. This Vista™ premium certified WIDESCREEN DISPLAY ENHANCES RODUCTIVITY by allowing you to view two documents side-by-side or work in two applications without toggling. Connect your game console, DVD player and other components through the DIGITAL (DVI-D HDCP) AND ANALOGUE INPUTS. The Kensington security port provides theft deterrence and the OSD and power lock prevent unauthorised changes to your optimal screen settings.
Visit Us
  • www.viewsonic.com
  • COLORS
    Black
  • LCD
    Type: 49 cm / 19" Wide TN colour TFT active matrix WSXGA+ LCD
    Contrast Ratio: 1000:1 (typ.), 3000:1 DCR (typ.)
    Viewing Angles: 170° horizontal, 160° vertical (at 0:1)

    170° horizontal, 170° vertical (at 5:1)
    Brightness: 300 cd/m2
    Display Area: 41.0cm horizontal x 25.7cm vertical, 48.3cm diagonal
    Optimum Resolution: 1680 x 1050@60Hz
    Response Time: 2ms (grey-to-grey), 5ms (off-on-off) (typ.)
    Light Source: Long life, 40000 hrs. (typ.)
    Panel Surface: Anti-glare
    Pixel Pitch: 0.243mm
    Colour Support: 16.7M colours supported (6-bit+2-bit FRC)
    Pixel Clock: 165MHz
  • COMPATIBILITY
    PC: VGA up to 1680 x 1050 non-interlaced
    Mac®: Power Mac™ up to 1680 x 1050 non-interlaced
  • DIMENSIONS
    Physical With Stand: 442 x 385 x 195
    Physical Without Stand: 442 x 310 x 54
    W x H x D mm: 520 x 469 x 145
  • PACKAGE CONTENTS
    LCD Monitor, power cable, 15-pin VGA video cable, DVI cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language)
  • CONNECTOR
    Analogue: 15-pin mini D-Sub (detachable cable)
    Digital: 24-pin DVI-D (detachable cable) (HDCP enabled)
    Power: 3-pin AC plug (CEE22)certified)
  • POWER
    Voltage: AC 100–240V, 50/60Hz (auto switch), internal power supply
    Consumption: 44 watt (typ.), <1 watt in power save mode
  • CONTROLS
    Basic: Power, menu [1], up, down, select [2]
    OSD: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), ViewMatch® colour adjust (sRGB, 9300K, 7500K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness, aspect ratio [4:3, full screen], response time), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), auto white balance, OSD/power lock, memory recall
  • OPERATING CONDITIONS
    Temperature: 0°C – 40°C
    Humidity: 10%–90% (non-condensation)
  • WEIGHT
    Net With Stand: 4.6kg
    Net Without Stand: 3.8kg
    Gross With Stand: 5.8kg
  • VIDEO INPUT
    Frequency: Fh: 24~82kHz, Fv: 50~85Hz
    Sync: H/V separate (TTL), composite, sync on green
    Analogue: RGB analogue (0.7/1.0 Vp-p, 75 ohm)
    Digital: DVI-D (HDCP enabled, TMDS, 100 ohm, DDC/CI)
  • POWER MANAGEMENT
    TCO’03 and ENERGY STAR standards
  • SECURITY
    Kensington® security port
  • VESA MOUNT COMPLIANT
    VESA FDMI 100mm x 100mm
  • ERGONOMICS
    Tilt: Down 5°, Up 20°
