Key Features

VP950b
Product Description

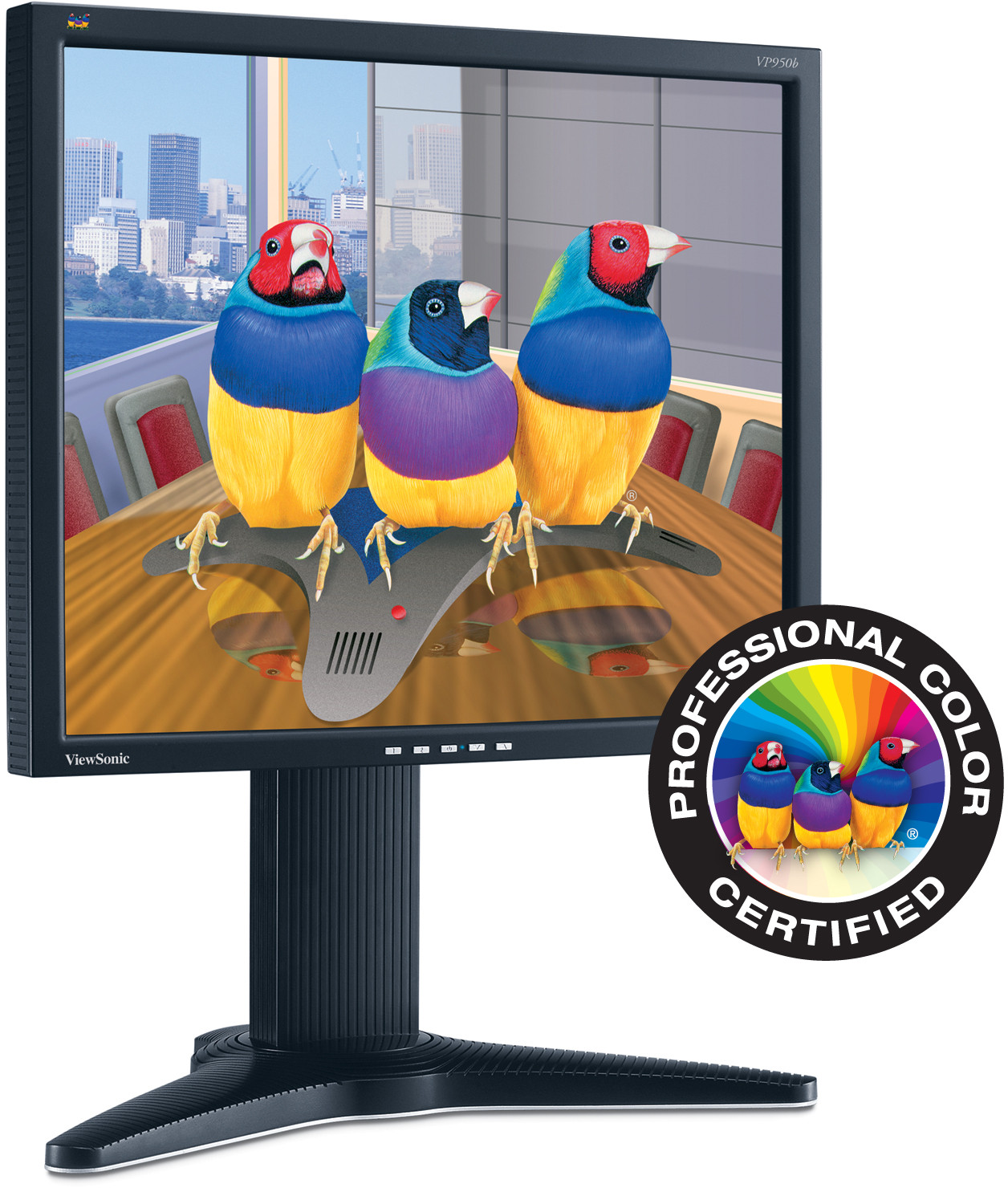

ViewSonic’s 48 cm / 19" VP950b LCD is a professional-grade display with 98% NTSC colour capability for richer, more natural colours across the entire colour spectrum. It is ideal for medical imaging, where precise colour rendition is vital to diagnosis. Graphics production, film and financial professionals will also find this display perfectly suited to their needs. 2000:1 DYNAMIC CONTRAST RATIO (typ.) and ultra-fast ClearMotiv 2ms response time (GtoG) deliver SUPERIOR FRONT-OF-SCREEN PERFORMANCE. The VP950b offers extensive ergonomic adjustments including height adjust, tilt, 120º swivel and pivot, and even a quick release stand. Certified for Windows Vista, this display is also HDCP compatible and features OptiSync digital/ analogue inputs plus 4 USB PORTS TO DELIVER A VERSATILE AND FLEXIBLE professional package. Step into a world of amazing colour and accuracy with the VP950b.
Visit Us
  • www.viewsonic.com
  • COLORS
    Black
  • LCD
    Type: 48cm / 19" TN colour TFT active matrix SXGA LCD
    Contrast Ratio: 800:1 (typ.), 2000:1 DCR (typ.)
    Viewing Angles: 170° horizontal, 160° vertical (at 10:1)

    170° horizontal, 170° vertical (at 5:1)
    Brightness: 280cd/m2 (typ.)
    Display Area: 37.6cm horizontal x 30.1cm vertical, 48.3cm diagonal
    Optimum Resolution: 1280 x 1024@60Hz
    Response Time: 2ms (grey-to-grey), 5ms (off-on-off, typ.)
    Light Source: Long life, 50000 hrs. (typ.)
    Panel Surface: Anti-glare (3H)
    Pixel Pitch: 0.294mm
    Colour Support: 16.7M colours supported (6-bit+2-bit HI FRC)
    Pixel Clock: 140MHz
    Colour Gamut: Wide colour gamut, 98% of NTSC
  • COMPATIBILITY
    PC: VGA up to 1280 x 1024 non-interlaced
    Mac®: Power Mac™ up to 1280 x 1024 non-interlaced
  • DIMENSIONS
    Physical With Stand: 412 x 391-510 x 279
    Physical Without Stand: 412 x 331 x 63
    W x H x D mm: 470 x 523 x 195
  • PACKAGE CONTENTS
    LCD Monitor, power cable, 15-pin VGA video cable, DVI-D cable, USB cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers)
    (multi-language)
  • CONNECTOR
    Analogue: 15-pin mini D-sub (detachable cable)
    Digital: 24-pin DVI-D (detachable cable) (HDCP enabled)
    Power: 3-pin plug (CEE22)
    USB: 1 x upstream (4-pin Typ B)/4 x downstream (4-pin Typ A), USB 2.0
  • POWER
    Voltage: AC 100–240V, 50–60Hz (Auto-Switch), internal power supply
    Consumption: 40 watt (typ., without USB peripheral connected), <1 watt in power save mode
  • CONTROLS
    Basic: Power, menu [1], up, down, select [2]
    OSD: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D),
    ViewMatch® colour adjust (sRGB, 9300K, 7500K, 6500K, 5000K, user RGB),
    information (resolution, H/V frequency, pixel clock, model number, serial
    number), manual image adjust (H/V position, H size, fine tune, sharpness, DCR [on/off], response time [standard, advanced, ultra-fast]), setup menu
    (language, resolution notice, OSD position, OSD timeout, OSD background, OSD pivot), auto white balance, OSD/power lock
  • OPERATING CONDITIONS
    Temperature: 0° to 40°
    Humidity: 10% to 90% (non-condensation)
  • WEIGHT
    Net With Stand: 5.6kg
    Net Without Stand: 4.4kg
    Gross: 7.5 kg
  • VIDEO INPUT
    Frequency: Fh: 24-82kHz, fv: 50-85Hz
    Sync: H/V separated (TTL), composite, sync on green
    Analogue: RGB analogue (0.7/1.0 Vp-p , 75 ohms)
    Digital: DVI-D (HDCP enabled, TMDS, 100 ohms, DDC/CI)
  • POWER MANAGEMENT
    Meets TCO’03 and ENERGY STAR standards
  • SECURITY
    Kensington security port
  • VESA MOUNT COMPLIANT
    VESA FDMI 100mm x 100mm
  • ERGONOMICS
    Tilt: Down 5°, up 20°
    Swivel: 120° (60° left/right)
    Height Adjustment: 0~120mm
    Pivot: 0°~90°
