Key Features

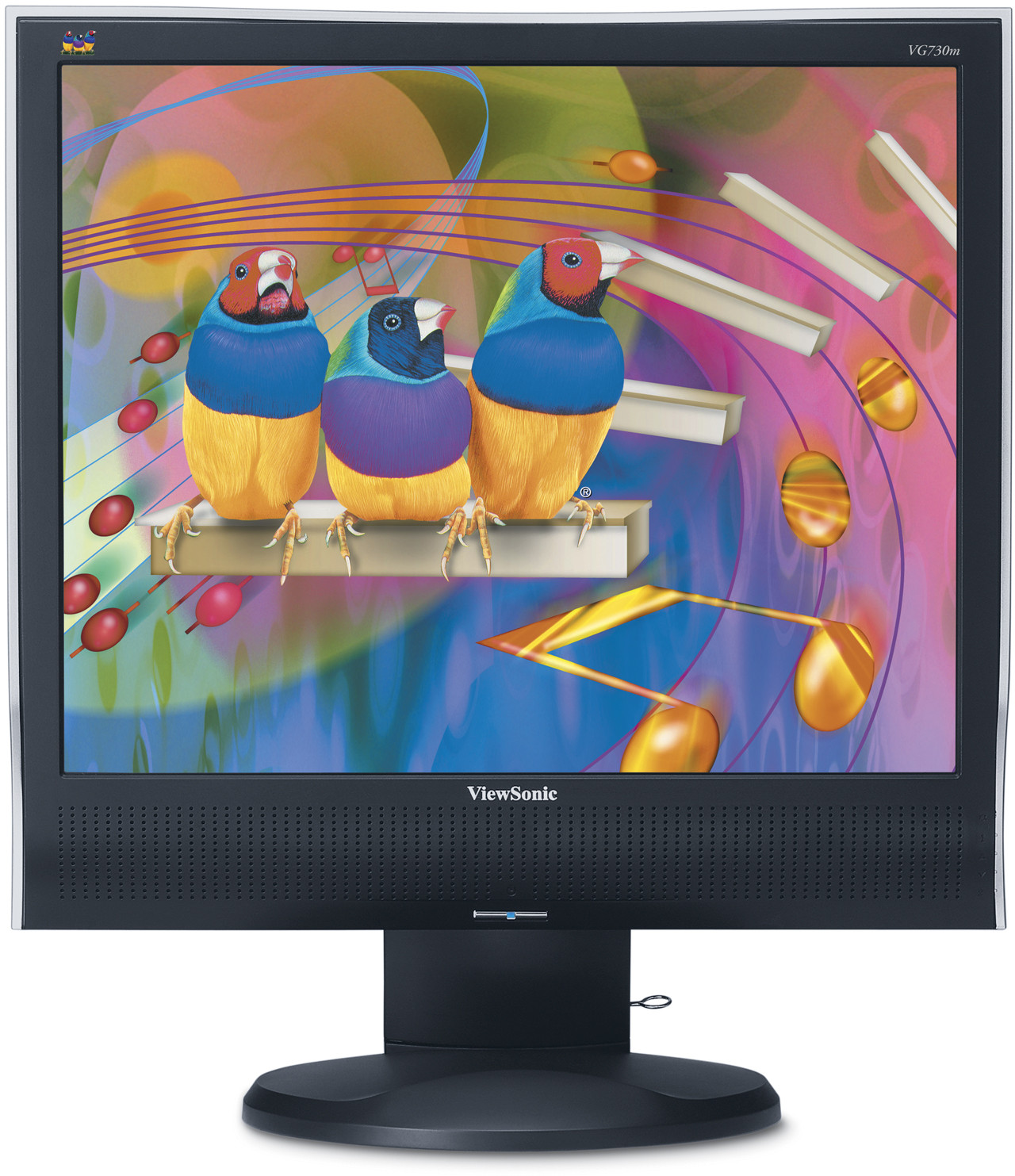

VG730m
Product Description
The 17” ViewSonic VG730m LCD monitor is the ultimate value LCD business display. Featuring height adjustment, tilt and 360° swivelfeatures, the VG730m allows the user to set the ergonomic position of the monitor to generate the best possible viewing position andgreatest viewing comfort. Image quality is guaranteed with premium contrast and brightness levels to deliver superb pictures with vivid, brilliant colours and crisp detail. Digital and analogue inputs ensure maximum connectivity and integrated stereo speakers provide space-saving high quality sound to your desktop. The full featured VG730m is the ideal LCD monitor for business, home office, government or education use.
Visit Us
  • www.viewsonic.com
  • COLORS
    Black
  • LCD
    Type: 43cm / 17" TN colour TFT active matrix SXGA LCD
    Contrast Ratio: 600:1 (typ.)
    Viewing Angles: 150° horizontal, 145° vertical (at 10:1)

    170° horizontal, 155° vertical (at 5:1)
    Brightness: 280cd/m² (typ.)
    Display Area: 33.8cm (horizontal) x 27.0cm (vertical), 43.2cm diagonal
    Optimum Resolution: 1280 x 1024@60Hz
    Response Time: 8ms (off-on-off) (typ.)
    Light Source: Long life, 50,000 hrs. (typ)
    Panel Surface: Anti-glare (3H)
    Pixel Pitch: 0.264mm
    Colour Support: 16.7M colours supported (6-bit + 2-bit FRC)
    Pixel Clock: 140MHz
  • COMPATIBILITY
    PC: VGA up to 1280 x 1024 non-interlaced
    Mac®: Power Mac™ up to 1280 x 1024 non-interlaced
  • DIMENSIONS
    Physical With Stand: 387 x 475-555 x 230
    Physical Without Stand: 387 x 367 x 67
    W x H x D mm: 445 x 552 x 278
  • PACKAGE CONTENTS
    LCD Monitor, power cable, D-sub video cable, audio cable, Quick Start
    Guide, ViewSonic Wizard CD-ROM (User Guide/ drivers) (multi-language)
  • AUDIO
    Speaker: 2 x 1.5 watt integrated stereo speakers
  • CONNECTOR
    Analogue: 15-pin mini D-Sub (detachable cable)
    Digital: 24-pin DVI-D (detachable cable)
    Power: 3-pin AC plug (CEE22)
    Audio: 3.5mm stereo audio line-in
  • POWER
    Voltage: AC 100–240V, 50/60Hz (auto switch), internal power supply
    Consumption: 35 watt (typ.), <1 watt in power save mode
  • CONTROLS
    Basic: Power, menu [1], up, down, select [2], mute
    OSD: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), audio (volume, mute), ViewMatch® colour adjust (sRGB, 9300K, 6500K, 5400K,
    user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall
  • OPERATING CONDITIONS
    Temperature: 5°C–35°C
    Humidity: 20%–80% (non-condensation)
  • WEIGHT
    Net With Stand: 5.0kg
    Gross: 6.9kg
  • VIDEO INPUT
    Frequency: Fh: 30–82kHz, Fv: 50–75Hz
    Sync: H/V separated (TTL)
    Analogue: RGB analogue (0.7/1.0 Vp-p, 75 ohm)
    Digital: DVI-D (TMDS, 100 ohms)
  • POWER MANAGEMENT
    Meets TCO’03 and ENERGY STAR standards
  • SECURITY
    Kensington security port
  • VESA MOUNT COMPLIANT
    VESA FDMI 100mm x 100mm
  • ERGONOMICS
    Tilt: Down 5°, up 20°
    Swivel: 360° swivel base
    Height Adjustment: 0~80mm
