Key Features
  • WQHD for incredible visuals
  • Integrated USB TypeC and Ethernet
  • Ergonomic flexibility with quick release stand
  • vDisplay Manager software for multitasking
  • Lower total cost of ownership

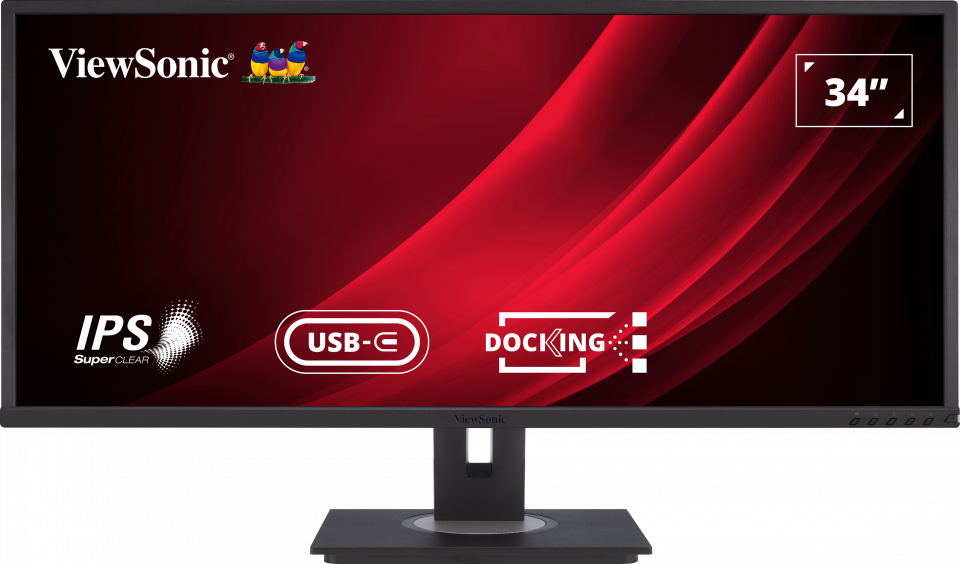

VG3456
Product Description
The ViewSonic VG56 docking monitor series will keep the workstation tidy and productive with USB Type-C and Ethernet connectivity that turn your monitor into a hub for charging, data, network, and devices, while reducing clutter on your desk and simplifying cable management. With a 34” WQHD display that delivers larger and stunning visuals, the VG3456 monitor expands your productivity, especially if you work in graphic design or software engineering. A range of ergonomic features such as 40-degree tilt, swivel, and height adjustment, along with eye-care technology let you stay comfortable at work all day. In addition, the supported vDisplay Manager software for multi-tasking provides efficient on-screen display control. The monitor and quick release stand ship in an eco-friendly, biodegradable package, thus minimizing total cost of ownership.

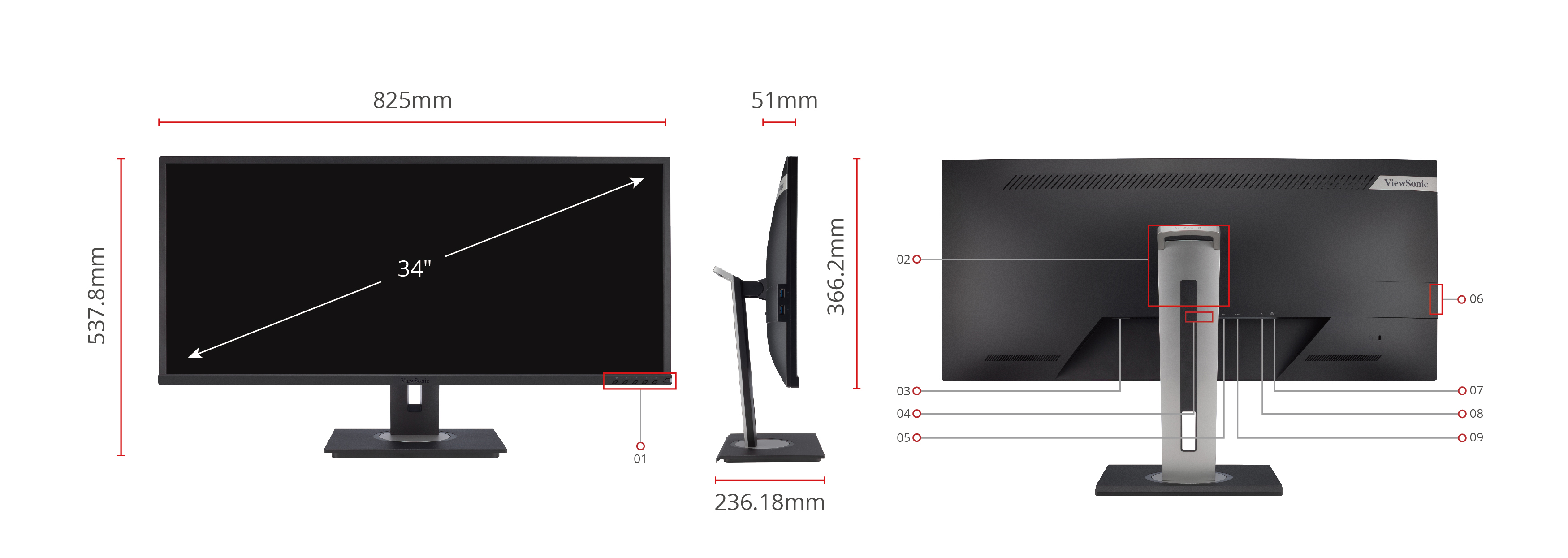

  1. Menu Control Panel
  2. VESA Compatible(Wall Mount 100 x 100mm)
  3. AC IN
  4. HDMI x 2
  5. Display Port
  6. USB down stream x 2
  7. Rj45
  8. USB-B
  9. USB-C
Visit Us
  • www.viewsonic.com
  • DISPLAY
    Display Size (in.): 34
    Viewable Area (in.): 34.1
    Panel Type: VA Technology
    Resolution: 3440 x 1440
    Resolution Type: UWQHD (UltraWide QHD)
    Static Contrast Ratio: 3,000:1 (typ)
    Dynamic Contrast Ratio: 50M:1
    Light Source: LED
    Brightness: 300 cd/m² (typ)
    Colors: 1.07B
    Color Space Support: 10 bit (8 bit + FRC)
    Aspect Ratio: 21:9
    Response Time (Typical GTG): 5ms
    Response Time (GTG w/OD): 5ms
    Response Time (Typical Tr+Tf): 25ms
    Viewing Angles: 178º horizontal, 178º vertical
    Backlight Life (Hours): 40000 Hrs (Min)
    Curvature: Flat
    Refresh Rate (Hz): 60
    Variable Refresh Rate Technology: FreeSync
    Blue Light Filter: Yes
    Flicker-Free: Yes
    Color Gamut: Adobe RGB: 79% size / 74% coverage (Typ)
    NTSC: 72% size (Typ)
    sRGB: 106% size / 95% coverage (Typ)
    Pixel Size: 0.233 mm (H) x 0.233 mm (V)
    Surface Treatment: Anti-Glare, Hard Coating (3H)
  • COMPATIBILITY
    PC Resolution (max): 3440x1440
    Mac® Resolution (max): 3440x1440
    PC Operating System: Windows 7/8/8.1/10 certified; macOS tested
    Mac® Resolution (min): 3440x1440
  • CONNECTOR
    USB 3.2 Type A Down Stream: 2
    USB 3.2 Type B Up Stream: 1
    USB 3.2 Type C Up Stream; DisplayPort Alt mode : 1 (90W power charger)
    HDMI 1.4: 2
    DisplayPort: 1
    Power in: 3-pin Socket (IEC C14 / CEE22)
    Ethernet LAN (RJ45): 1
  • AUDIO
    Internal Speakers: 3Watts x2
  • POWER
    Eco Mode (Conserve): 30W
    Eco Mode (optimized): 32W
    Consumption (typical): 35W
    Consumption (max): 46W
    Voltage: AC 100-240V
    Stand-by: 0.3W
    Power Supply: Internal Power Supply
  • ADDITIONAL HARDWARE
    Kensington Lock Slot: 1
    Cable Organization: Yes
  • CONTROLS
    Physical Controls: Key 1 (eye), Key 2, Key 3, Key 4, Key 5, Key 6 (power)
    On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
  • OPERATING CONDITIONS
    Temperature: 32°F to 104°F (0°C to 40°C)
    Humidity (non-condensing): 20% to 90%
  • WALL MOUNT
    VESA Compatible: 100 x 100 mm
  • INPUT SIGNAL
    Frequency Horizontal: 15 ~ 150KHz
    Frequency Vertical: 24 ~ 100Hz
  • VIDEO INPUT
    Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2), Micro-Packet - Type C
  • ERGONOMICS
    Height Adjust (mm): 130
    Swivel: 120º
    Tilt (Forward/Back): -5º / 40º
  • WEIGHT (IMPERIAL)
    Net (lbs): 19.4
    Net Without Stand (lbs): 13.5
    Gross (lbs): 29.5
  • WEIGHT (METRIC)
    Net (kg): 8.8
    Net Without Stand (kg): 6.1
    Gross (kg): 13.4
  • DIMENSIONS (IMPERIAL) (WXHXD)
    Packaging (in.): 37.2 x 20.7 x 9.2
    Physical (in.): 32.5 x 16.07~21.19 x 9.3
    Physical Without Stand (in.): 32.5 x 14.4 x 2
  • DIMENSIONS (METRIC) (WXHXD)
    Packaging (mm): 945 x 525 x 234
    Physical (mm): 825 x 407.8~537.8 x 236
    Physical Without Stand (mm): 825 x 366 x 51
  • GENERAL
    Regulations: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, UKCA, RCM
    PACKAGE CONTENTS: VG3456 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB Type-C Cable (Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Quick Start Guide x1
    Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
    Warranty: *Warranty offered may differ from market to market
    Power Management: Energy Star standards, EPEAT
