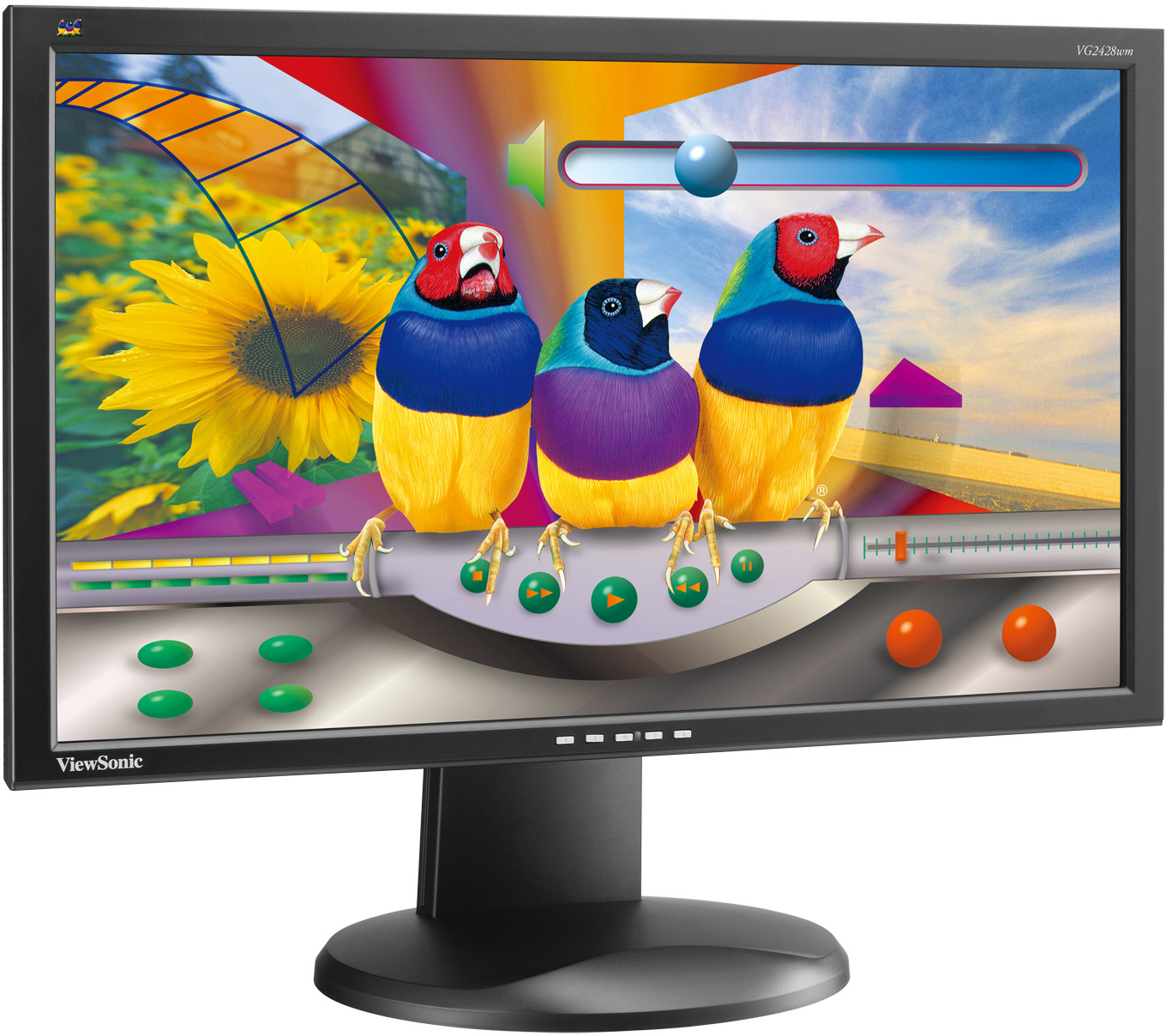

ViewSonic VG2428wm 24" (23.6"/60cm VIEWABLE) WIDESCREEN LCD WITH FULL HD RESOLUTION

LCD

Contrast Ratio:	1000:1(typical); 100,000:1 dynamic
Viewing Angles:	170° (H), 160° (V)
Display Area:	521mm (H) x 293mm (V)
Optimum Resolution:	1920×1080
Response Time:	5ms(typical)
Light Source:	50,000 hrs(typical)
Panel Surface:	Anti-Glare
Pixel Pitch:	0.2715mm(H)×0.2715mm(V)
Colour Support:	16.7 M(6-bits + Hi FRC)
Size:	23.6" wide Color TFT Active Matrix LCD with 16:9 aspect ratio
Brightness:	300 cd/m² (typical)

COMPATIBILITY

PC: VGA up to 1920×1080 non-interlaced

Mac®: Power Mac, up to 1920×1080
DIMENSIONS

Physical With Stand: 564mmx442mmx250mm(22.2"x17.4"x9.8")

Physical Without Stand: 564mmx335mmx67mm(22.2"x13.2"x2.6")
PACKAGE CONTENTS

DVI-D Cable, Power Cable, Audio cable, USB cable
INPUT

Sync: H/V Separated

Analogue: RGB Analog (75 ohms, 0.7/1.0 Vp-p)

Digital: DVI-D(TMDS, 100ohms)

Frequency: Fh: 22-82kHz, Fv: 50-75Hz
CONNECTOR

Analogue: 15 pin mini D-sub×1

Digital: DVI-D

USB: down stream x2 / up stream x1

Audio: 3.5 mm Audio in

Power: Built-in power Adapter, 3-Pin plug
POWER

Voltage: AC 100-240V(Universal); 50/60Hz(Switch)

Consumption: 45(Typical)

Eco Mode: Optimize 31W (typ.) / conserve 26W (typ.)

Save Mode (W): ≦0.5W

CONTROLS

Basic:	Power, Mute,[1], Up[▲], Down[▼], [2]
OnView®:	Auto image adjust, Contrast/Brightness, Audio adjust: Volume, mute, Colour adjust: sRGB, 9300K, 7500K, 6500K, 5000K, user colour [R, G, B] Information, Manual image adjust: H/V position, Horizontal size, fine tune, sharpness, dynamic contrast, aspect ratio, Eco mode, Setup menu: Language select, resolution notice, OSD position, OSD timeout, OSD background, memory recall

POWER MANAGEMENT

TCO 5.0, ENERGY STAR®
VESA MOUNT COMPLIANT

VESA® 100mmx100mm
ERGONOMICS

Tilt: 20˚~-5˚

Swivel: 360˚(180 ˚left / 180 ˚right)

Height Adjustment: 0~135mm

Pivot: 0˚~90˚ clock wise
AUDIO

Speakers: 2x2 watt
WEIGHT

Gross: 9.6 kg(21.2 lb)

Net: 7 kg(15.4 lb)
OPERATING CONDITIONS

Humidity: 10-90%(Non condensed)

Temperature: 32-104°F(0-40°C)

PC:	VGA up to 1920×1080 non-interlaced
Mac®:	Power Mac, up to 1920×1080

Physical With Stand:	564mmx442mmx250mm(22.2"x17.4"x9.8")
Physical Without Stand:	564mmx335mmx67mm(22.2"x13.2"x2.6")

Analogue:	15 pin mini D-sub×1
Digital:	DVI-D
USB:	down stream x2 / up stream x1
Audio:	3.5 mm Audio in
Power:	Built-in power Adapter, 3-Pin plug

Humidity:	10-90%(Non condensed)
Temperature:	32-104°F(0-40°C)

Gross:	9.6 kg(21.2 lb)
Net:	7 kg(15.4 lb)
