Key Features

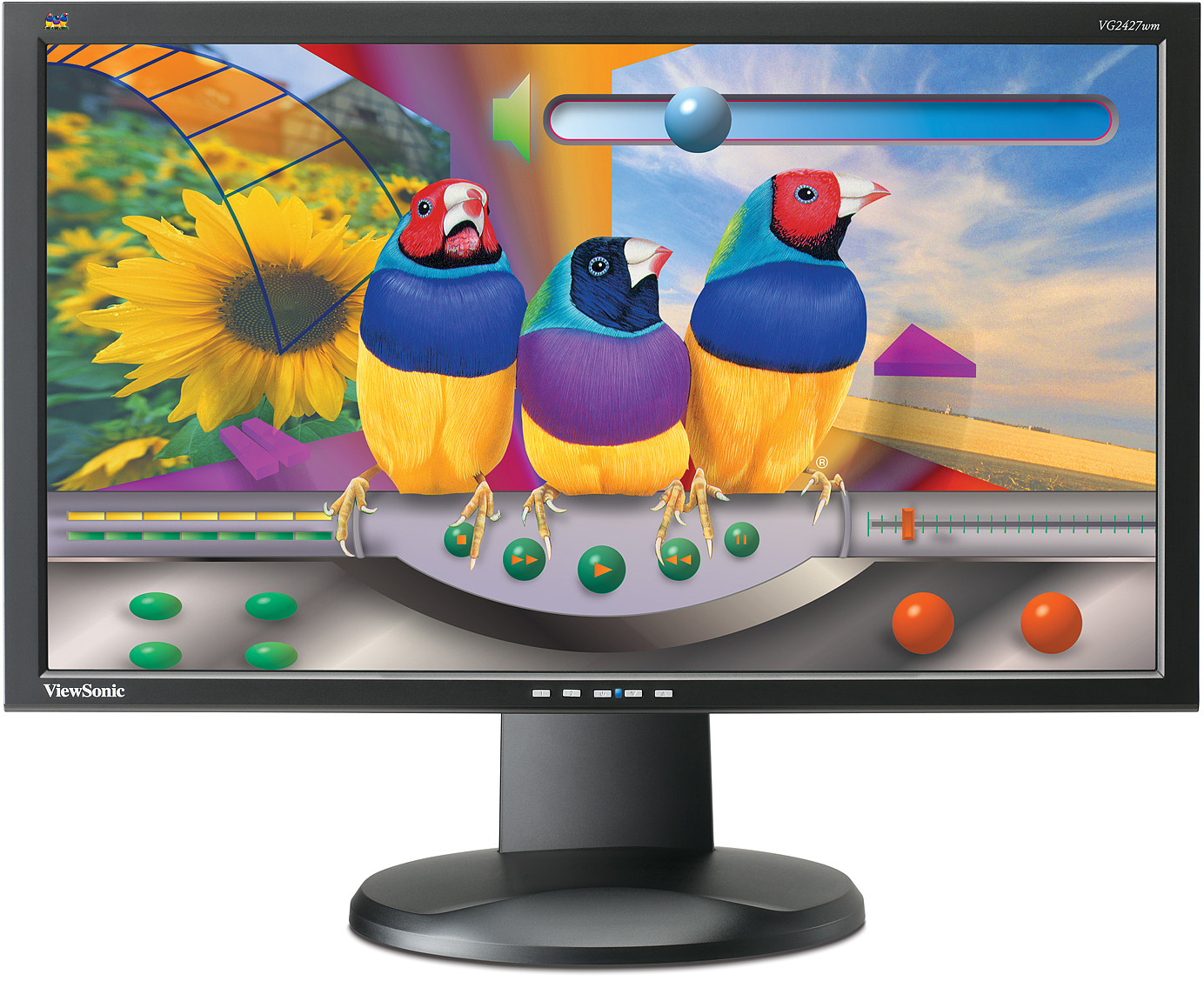

VG2427wm
Product Description
Visit Us
  • www.viewsonic.com
  • COLORS
    Black
  • LCD
    Contrast Ratio: 1000:1(typ.) ; 20000:1 dynamic
    Viewing Angles: 170o(H), 160o(V) at 10:1 c/r, 170o(H), 170o(V) at 5:1 c/r
    Brightness: 300 cd/m² (typ.)
    Display Area: 521mm (H) x 293mm (V)
    Optimum Resolution: 1920×1080
    Response Time: 5ms(typ.)
    Light Source: 50,000 hrs(typ.)
    Panel Surface: Anti-Glare
    Pixel Pitch: 0.2715mm(H)×0.2715mm(V)
    Colour Support: 16.7 M(6-bits + Hi FRC)
    Size: 60 cm (23.6") wide Color TFT Active Matrix LCD with 16:9 aspect ratio
  • COMPATIBILITY
    PC: VGA up to 1920×1080 non-interlaced
    Mac®: Power Mac, up to 1920×1080
  • DIMENSIONS
    Physical With Stand: 564mmx442mmx250mm(22.2"x17.4"x9.8")
    Physical Without Stand: 564mmx335mmx67mm(22.2"x13.2"x2.6")
  • PACKAGE CONTENTS
    D-Sub Cable, DVI-D Cable, Power Cable, Audio cable, USB cable
  • AUDIO
    Speaker: 2x2 watt
  • INPUT
    Sync: H/V Separated
    Digital: DVI-D(TMDS, 100ohms)
    Analogue: RGB Analog (75 ohms, 0.7/1.0 Vp-p)
    Frequency: Fh: 22-82kHz, Fv: 50-75Hz
  • CONNECTOR
    Analogue: 15 pin mini D-sub×1
    Digital: DVI-D
    Power: Built-in power Adapter, 3-Pin plug
    USB: down stream x2 / up stream x1
    Audio: 3.5 mm Audio in
  • POWER
    Voltage: AC 100-240V(Universal); 50/60Hz(Switch)
    Consumption: 45(typ.)
    Eco Mode: optimize 31W(typ.)/conserve 26W(typ.)
    Save mode: ≦1W
  • CONTROLS
    Basic: Power, Mute,[1], Up[▲], Down[▼], [2]
    On View (PC mode): Auto image adjust, Contrast/Brightness, Audio adjust: Volume, mute,
    Color adjust: sRGB, 9300K, 7500K, 6500K, 5000K, user color [R, G, B]
    Information, Manual image adjust: H/V position, Horizontal size, fine tune, sharpness, dynamic contrast, aspect ratio, Eco mode, Setup menu: Language select, resolution notice, OSD position, OSD timeout, OSD background, memory recall
  • OPERATING CONDITIONS
    Temperature: 32-104°F(0-40°C)
    Humidity: 10-90%(Non condensed)
  • WEIGHT
    Net: 7 kg(15.4 lb)
    Gross: 9.6 kg(21.2 lb)
  • POWER MANAGEMENT
    TCO'03, ENERGY STAR®
  • VESA MOUNT COMPLIANT
    VESA® 100mmx100mm
  • ERGONOMICS
    Tilt: 20˚~-5˚
    Swivel: 360˚(180 ˚left / 180 ˚right)
    Height Adjustment: 0~135mm
