LCD Display
VG2239Smh
Key Features
Product Description

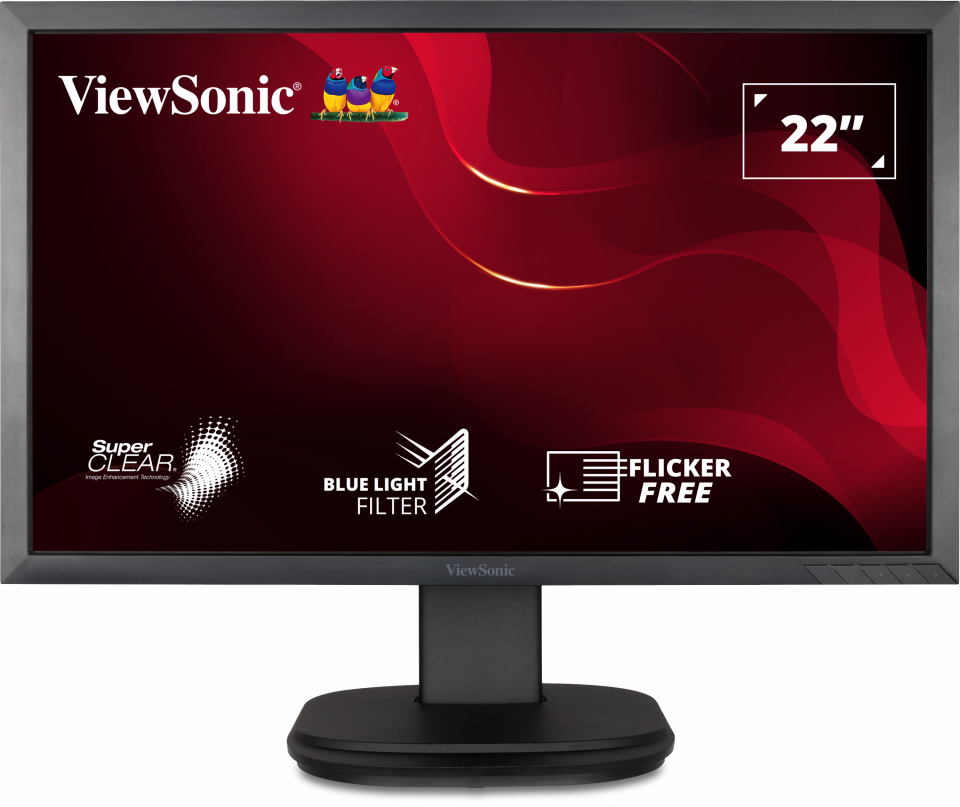

The ViewSonic VG2239Smh is a 22" (21.5" viewable) Full HD LED multimedia monitor with future-proof connectivity and full ergonomic functionality ideal for corporate, government and education. With SuperClear® VA Technology for wide-angle viewing, and 20M:1 dynamic contrast ratio, this monitor delivers stunning colour and contrast with amazing screen performance at any viewing angle. Integrated with HDMI, DisplayPort and 2 USB ports, the VG2239Smh allows flexible connection to PC systems, laptops and other multimedia peripheral devices. ViewSonic’s exclusive ViewMode provides intuitive presets to deliver optimized screen performance in different applications. In addition, Flicker-Free and Blue Light Filter technology help to eliminate eye strain from extended viewing periods. The full erognomic stand supports pivot, height adjustment, swivel and tilt, and VESA-mountable design offers additional mount flexibility. In addition, 3 years standard warranty and one of the industry’s best pixel performance policies make this TCO, EnergyStar and EPEAT certified monitor the best asset investment.
Visit Us
- www.viewsonic.com
-
DISPLAY
Display Size (in.): 22 Viewable Area (in.): 21.5 Panel Type: VA Technology Resolution: 1920 x 1080 Resolution Type: FHD (Full HD) Static Contrast Ratio: 3,000:1 (typ) Dynamic Contrast Ratio: 20M:1 Light Source: LED Brightness: 250 cd/m² (typ) Colors: 16.7M Color Space Support: 8 bit (6 bit + Hi-FRC) Aspect Ratio: 16:9 Response Time (Typical GTG): 6.5ms Response Time (GTG w/OD): 6.5ms Response Time (Typical Tr+Tf): 25ms Viewing Angles: 178º horizontal, 178º vertical Backlight Life (Hours): 40000 Hrs (Min) Curvature: Flat Refresh Rate (Hz): 60 Low Blue Light: Software solution Flicker-Free: Yes Color Gamut: NTSC: 72% size (Typ) sRGB: 103% size (Typ) Pixel Size: 0.248 mm (H) x 0.248 mm (V) Surface Treatment: Anti-Glare, Hard Coating (3H) -
COMPATIBILITY
PC Resolution (max): 1920x1080 Mac® Resolution (max): 1920x1080 PC Operating System: Windows 8 certified; macOS tested Mac® Resolution (min): 1920x1080 -
CONNECTOR
VGA: 1 USB 2.0 Type A: 2 USB 2.0 Type B: 1 3.5mm Audio In: 1 3.5mm Audio Out: 1 HDMI 1.4: 1 DisplayPort: 1 Power in: 3-pin Socket (IEC C14 / CEE22) -
AUDIO
Internal Speakers: 2Watts x2 -
POWER
Eco Mode (Conserve): 15W Eco Mode (optimized): 18W Consumption (typical): 20.5W Consumption (max): 22W Voltage: AC 100-240V Stand-by: 0.5W Power Supply: Internal Power Supply -
ADDITIONAL HARDWARE
Kensington Lock Slot: 1 -
CONTROLS
Physical Controls: 1, 2, Up, Down, Power On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall -
OPERATING CONDITIONS
Temperature: 32°F to 104°F (0°C to 40°C) Humidity (non-condensing): 20% to 90% -
WALL MOUNT
VESA Compatible: 100 x 100 mm -
INPUT SIGNAL
Frequency Horizontal: 24 ~ 82KHz Frequency Vertical: 50 ~ 75Hz -
VIDEO INPUT
Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2) Analog Sync: Separate/Composite/SOG - RGB Analog -
ERGONOMICS
Height Adjust (mm): 135 Swivel: 360º Tilt (Forward/Back): -5º / 20º Pivot (Right/Left): 90º / 0º -
WEIGHT (IMPERIAL)
Net (lbs): 10.6 Net Without Stand (lbs): 7.4 Gross (lbs): 14.9 -
WEIGHT (METRIC)
Net (kg): 4.8 Net Without Stand (kg): 3.3 Gross (kg): 6.8 -
DIMENSIONS (IMPERIAL) (WXHXD)
Packaging (in.): 22.9 x 19 x 7.4 Physical (in.): 20.2 x 16.46~21.77 x 9.4 Physical Without Stand (in.): 20.2 x 12 x 2.2 -
DIMENSIONS (METRIC) (WXHXD)
Packaging (mm): 581 x 483 x 187 Physical (mm): 512 x 418.04~553.04 x 240 Physical Without Stand (mm): 512 x 304 x 56 -
GENERAL
PACKAGE CONTENTS: VG2239SMH x1, 3-pin Plug (IEC C13 / CEE22) x1, DisplayPort Cable (v1.2; Male-Male) x1, USB A/B Cable (v2.0; Male-Male) x1, Audio Cable (Male-Male) x1, Quick Start Guide x1 Recycle/Disposal: Please dispose of in accordance with local, state or federal laws. Warranty: *Warranty offered may differ from market to market
