Key Features

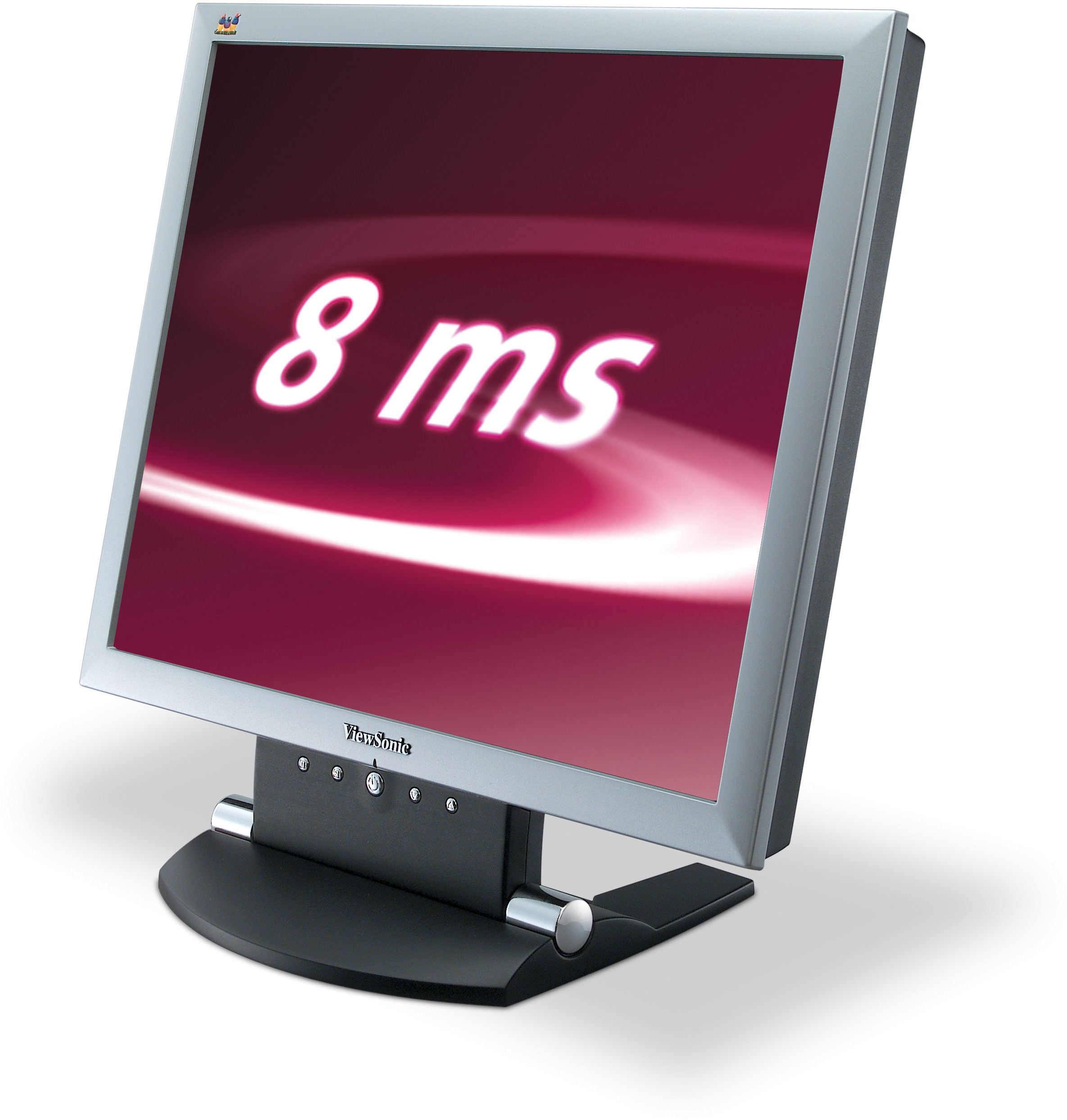

VA902
Product Description
Visit Us
  • www.viewsonic.com
  • LCD
    Type: 48 cm / 19" TN-Colour TFT Active Matrix SXGA LCD
    Contrast Ratio: 600:1 (typ.)
    Viewing Angles: 140° horizontal, 130° vertical @ 10:1

    160° horizontal, 150° vertical @ 5:1
    Brightness: 250cd/m² (typ.)
    Display Area: 376mm horizontal x 301mm vertical; 48.3cm diagonal
    Optimum Resolution: 1280 x 1024
    Response Time: 8ms (typ.)
    Panel Surface: Anti-glare 3H
    Pixel Pitch: 0.294mm
    Colour Support: 16.2M colours (6-bit + 2-bit FRC)
    Pixel Clock: 135MHz
  • COMPATIBILITY
    PC: 15-pin mini D-Sub (detachable cable)
    Mac®: Power Mac™ G3/G4/G5 1152 x 870 (@ max. 75Hz)
  • DIMENSIONS
    Physical (mm): 414 x 407 x 219
  • PACKAGE CONTENTS
    LCD display, power cable, 15-pin VGA video cable, Quick Start Guide, ViewSonic Wizard CD
  • INPUT
    Sync: H/V separated (TTL)
    Frequency: Fh: 30-82kHz, Fv: 50-85Hz
    Video: RGB analogue (75 ohms, 0.7 Vp-p)
  • CONNECTOR
    Analogue: 15-pin mini D-Sub (attached cable)
    Power: 3-pin AC plug, (CEE22)
  • POWER
    Voltage: AC 100–240V, 50–60Hz (auto switch), internal power supply
    Consumption: 35W (typ.); ≤ 1 watt in power save mode
  • CONTROLS
    OSD: Auto image adjust, brightness, contrast, ViewMatch® colour adjust
    [sRGB, 9300K, 6500K (default), 5400K, user colour (R,G,B)],
    information [resolution, H. frequency, V. frequency, pixel clock,
    model number, serial number], manual image adjust [H. size,
    H./V. position, fine tune, sharpness, scaling], setup menu
    [language (English, French, German, Italian, Spanish, Finnish,
    Japanese, Traditional Chinese, Simplified Chinese),
    resolution notice, OSD position, OSD timeout, OSD background],
    memory recall, OSD lock, power lock
    Physical: Power on/off, menu, down, up, select
  • OPERATING CONDITIONS
    Temperature: 0°C to 40°C
    Humidity: 10% to 90% (non-condensation)
  • WEIGHT
    Net: 5.4kg
  • POWER MANAGEMENT
    Meets TCO’03, ENERGY and Energy Star standards
  • ERGONOMICS
    Down 5°, Up 20°
