Key Features

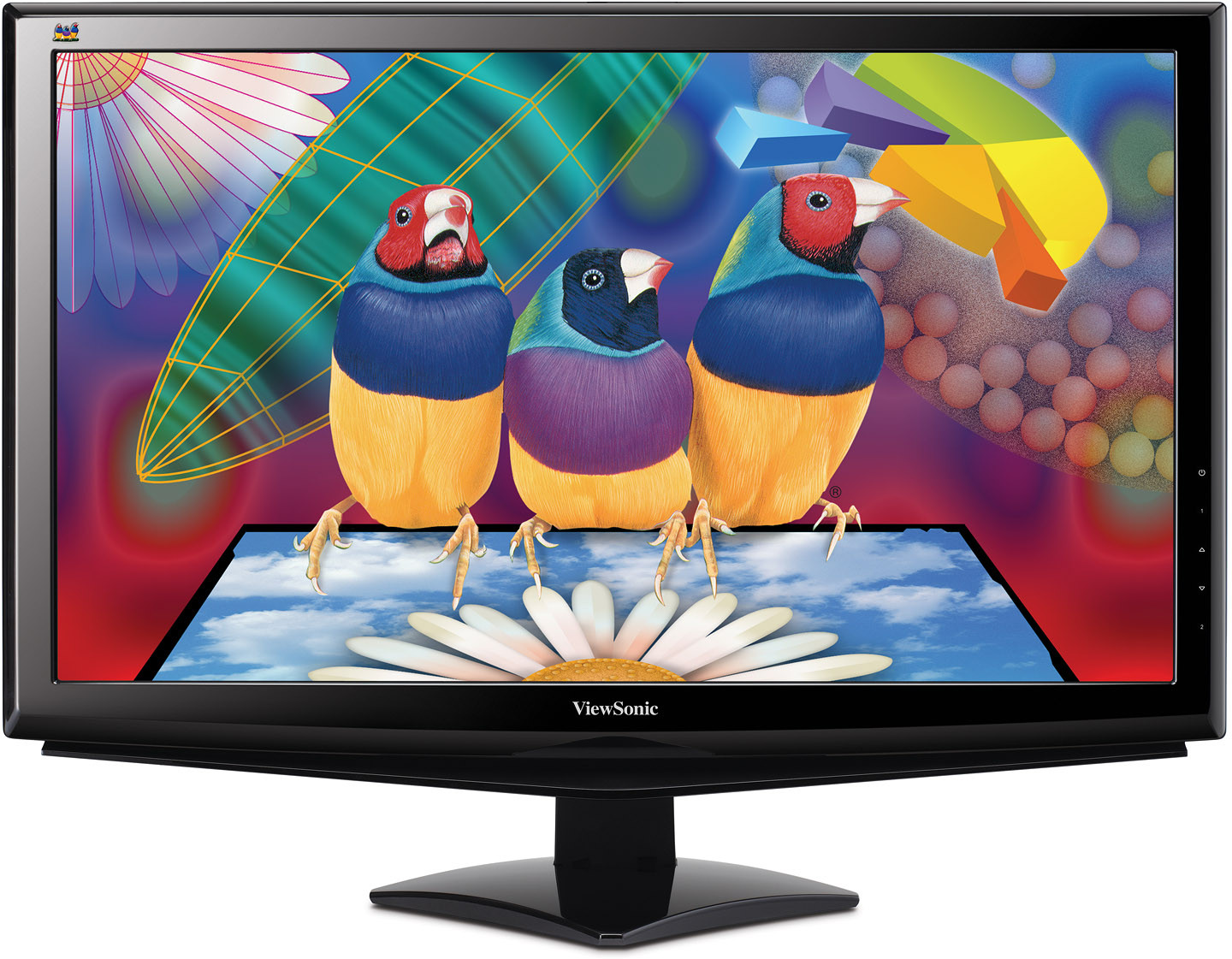

VA2248-LED
Product Description
ViewSonic’s new VA2248-LED features an LED backlight 22” (21.5” viewable) thin bezel widescreen monitor. Environmentally friendly mercury-free VA2248-LED offers full HD 1920x1080 resolution, 10,000,000:1 MEGA dynamic contrast ratio, DVI and VGA inputs, 5ms response time, VESA mountable glossy finish design. The aspect ratio adjustment feature automatically senses the input single and will not stretch a 4:3 signal but instead will position the image in the middle of the screen with side bars. A 3 year warranty, Energy Star 5.0 & TCO5.1 certification, the industry’s best pixel performance policy, and energy saving Eco mode make VA2248-LED a great long-term investment.
Visit Us
  • www.viewsonic.com
  • LCD
    Contrast Ratio: 1,000:1 (Typical)
    Viewing Angles: 170° (H), 160° (V)
    Optimum Resolution: 1920x1080
    Response Time: 5ms (Typical)
    Panel Surface: Anti-Glare, Hard coating (3H)
    Colour Support: 16.7 M
    Size: 22" wide (55cm / 21.5” viewable) Colour TFT Active Matrix LCD with
    16:9 aspect ratio
    Brightness: 250 cd/m² (Typical)
    Dynamic Contrast Ratio: ≧10,000,000:1
  • COMPATIBILITY
    PC: VGA up to 1920×1080 non-interlaced
    Mac®: 1920×1080 non-interlaced
  • DIMENSIONS
    Physical (WxHxD): 527.86 x 400.28 x 228.01(mm) / 20.78 x 15.76 x 8.98 (in)
  • INPUT
    Sync: Separate Sync
    Analogue: RGB Analog (75 ohms, 0.7 / 1.0 Vp-p)
    Frequency: Fh = 24 – 82 kHz ; Fv = 50 ~ 75 Hz
    Digital: DVI-D (TMDS, 100 ohms)
  • CONNECTOR
    Analogue: 1×15 pin mini D-sub
    Digital: DVI - D
    Power: Built-in power Adapter, 3-Pin plug
  • POWER
    Voltage: AC 100-240V (Universal); 50/60Hz(Switch)
    Consumption: 23 W (Typical)
    Save mode: ≦0.3W
  • VESA MOUNT COMPLIANT
    100mm × 100mm
  • WEIGHT
    Net: 3.63 Kg
  • OPERATING CONDITIONS
    Humidity: 10 - 90 (%)
    Temperature: 0℃ - 40℃(32℉-104℉)
