Key Features

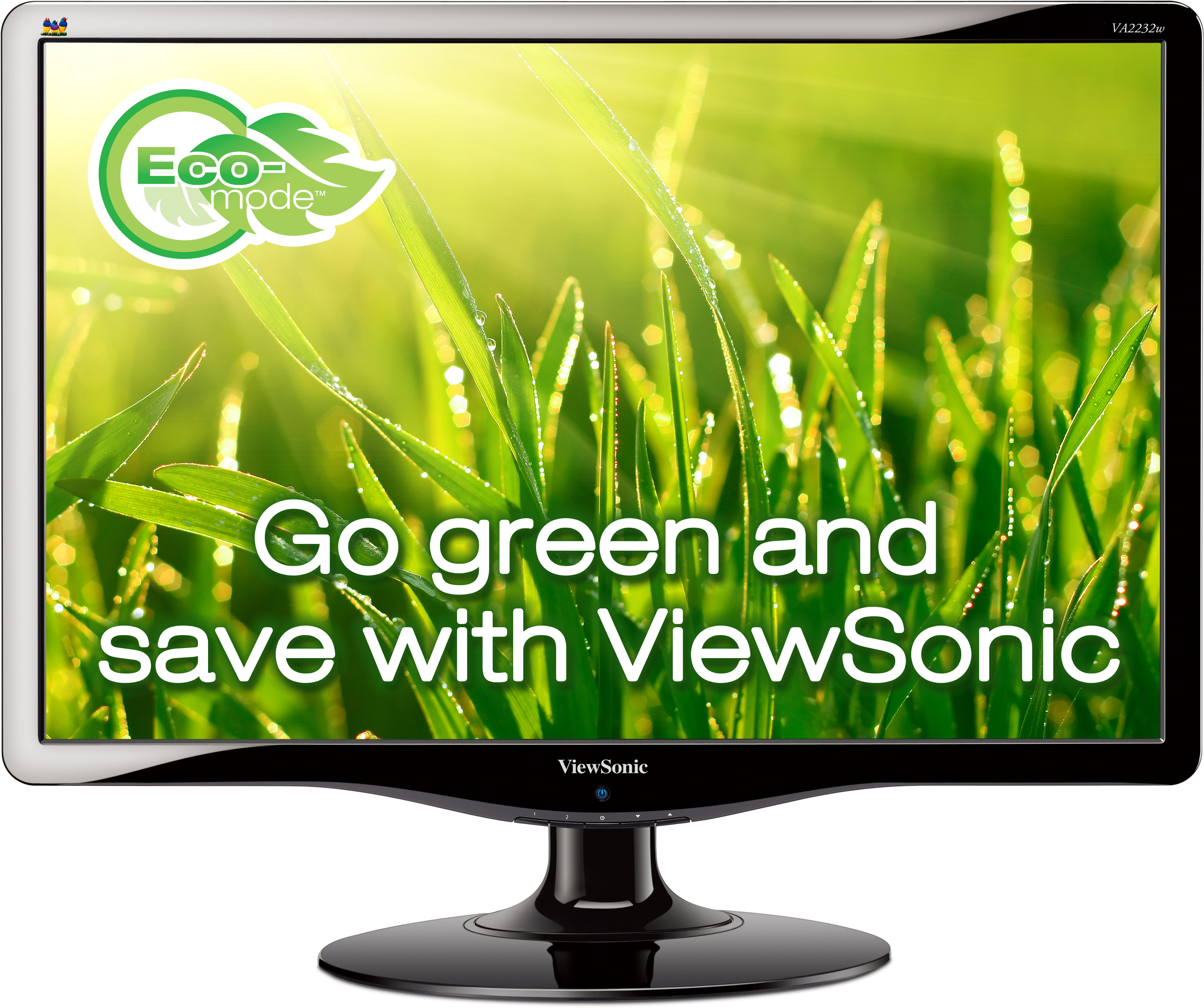

VA2232w-LED
Product Description
ViewSonic’s 22-inch VA2232w-LED display is a new member of the VA series; with a native 1680 x 1050 resolution and sRGB colour calibration function, this model presents exquisite picture quality and an immersive viewing experience. Along with an impressive 10,000,000:1 dynamic contrast ratio, the VA2232w-LED automatically detects and adjusts dark and bright levels to greatly enhance greyscale and colour contrast performance. Save energy and money with ViewSonic’s ECO Mode solution which reduces power consumption and extends backlight life. The VA2232w-LED provides great value concerning viewing performance and is an excellent solution for home and business.
Visit Us
  • www.viewsonic.com
  • LCD
    Optimum Resolution: 1680 x 1050
    Contrast Ratio: 1000:1 (typ.)
    Viewing Angles: 170° / 160° (typ.)
    Response Time: 5 ms
    Panel Surface: Anti-glare type, 3H hardness
    Display Area: 22" wide
    Brightness: 250 cd/m²
    Dynamic Contrast Ratio: 10,000,000:1
    Backlight: LED
    Backlight Life: 40,000 hours (min.)
  • COMPATIBILITY
    PC: VGA up to 1680 x 1050
    (non-interlaced)
    Mac®: Power MAC (up to 1680 x 1050)
  • CONNECTOR
    Analog: 15-pin mini D-sub x 1
    Digital: DVI- D x 1
  • DIMENSIONS
    Physical With Stand: 510.7 x 416.2 x 195.4 mm (20.1” x 16.4” x 7.7”)
    Physical Without Stand: 510.7 x 352.4 x 61.2 mm (20.1” x 13.9” x 2.41”)
  • INPUT
    Frequency: Fh = 24 ~ 82 kHz ; Fv = 50 ~ 75 Hz
    Sync: Separate sync
    Analogue: RGB analog (75 Ω, 0.7 / 1.0 Vp-p)
  • POWER
    Voltage: AC 100 - 240V (universal); 50 / 60 Hz
  • VESA® MOUNT
    100mm x 100mm
  • ERGONOMICS
    Tilt: 20° ~ -5°
  • WEIGHT
    Net With Stand: 3.91 Kg
    Net Without Stand: 3.54 Kg
  • OPERATING CONDITIONS
    Humidity: 10% to 90% (no condensation)
    Temperature: 32° F to 104° F (0° C to 40° C)
  • CONNECTORS
    Power: Internal power board, 3-pin plug (CEE22) x 1
