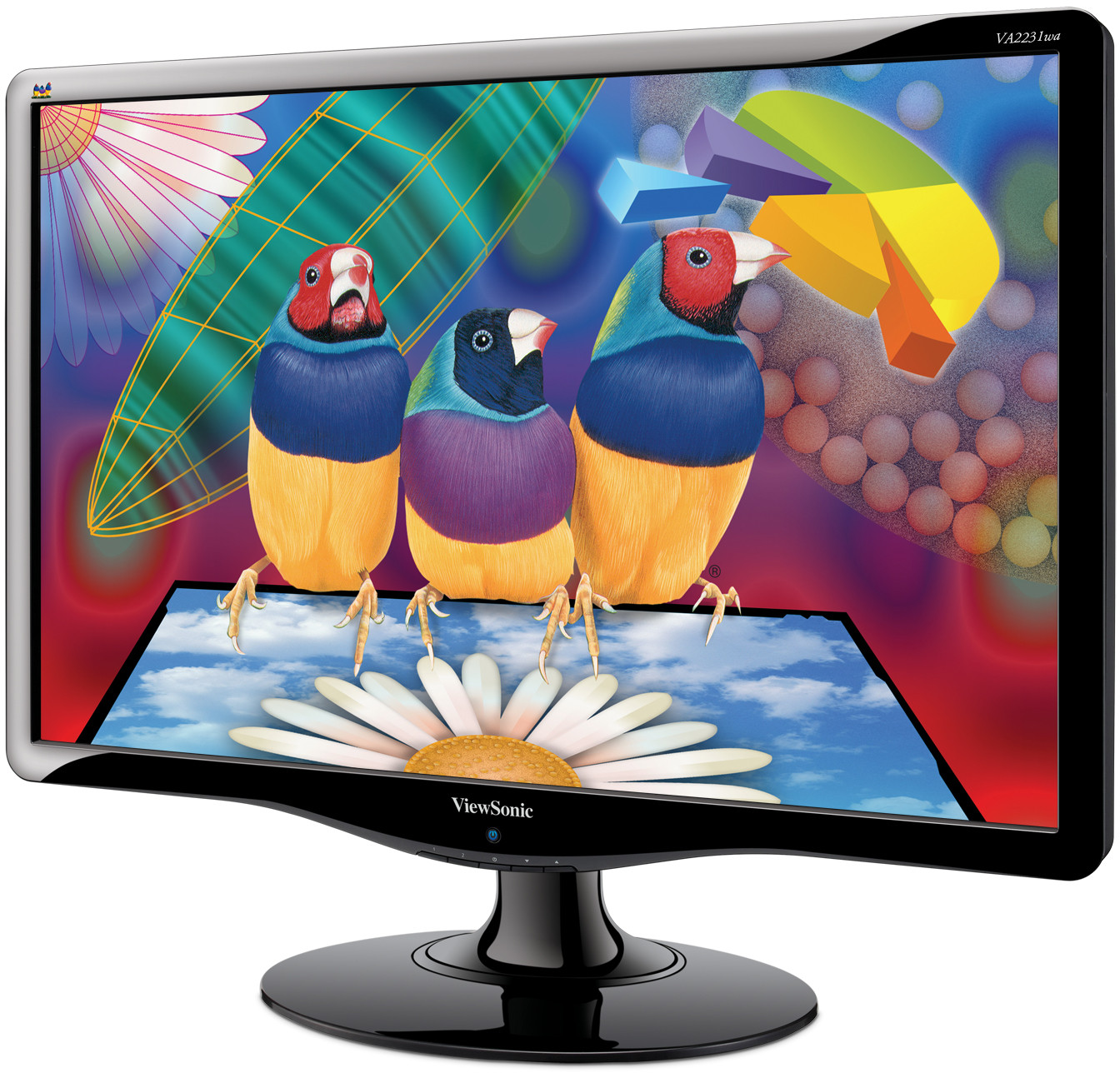

ViewSonic VA2231wa 55cm/21.5" VALUE SERIES WIDESCREEN LCD DISPLAY

LCD

Contrast Ratio:	1,000:1
Viewing Angles:	170° (H), 160° (V)
Optimum Resolution:	1920 × 1080
Response Time:	5ms Typical
Light Source:	50,000 hrs typical
Panel Surface:	Anti-Glare, Hard coating(3H)
Pixel Pitch:	0.24825 × 0.24825 (mm)
Colour Support:	16.7 Millions
Size:	55cm/21.5" Wide Color a-Si TFT Active Matrix LCD 16:9 aspect ratio
Brightness:	300 Typical
Dynamic Contrast Ratio:	100,000:1

COMPATIBILITY

PC: VGA up to 1920 × 1080 Non Interlaced

Mac®: 1920 × 1080 Non Interlaced
DIMENSIONS

Physical (WxHxD): 513 × 389 × 64 (mm) / 20.2 × 17.3 × 5.4 (in)
INPUT

Sync: Separate

Analogue: RGB Analogue (75 ohms, 0.7 / 1.0 Vp-p)

Frequency: Fh = 24 – 82kHz; Fv = 50 –75 Hz, (VGA)
CONNECTOR

Power: Built-in power Adapter, 3-Pin plug

Analog: 1×15 pin mini D-sub
POWER

Voltage: AC 100-240V (Universal); 50/60Hz(Switch)

Consumption: 40 Typical

Save mode: ≦0.2W

CONTROLS

Basic:	[1], [2], Power, Down[▼], Up[▲]
On View (PC mode):	Auto Image Adjust, Contrast/Brightness, Color Adjust, sRGB, 9300K, 7500K, 6500K, 5000K, User Color [R, G, B] Information, Manual Image Adjust, H/V Position, Horizontal Size, Fine Tune, Sharpness, Dynamic Contrast, Aspect ratio, Eco mode, Setup Menu, Language, Resolution Notice, OSD Position, OSD Timeout, OSD Background, Auto Power Off, Memory Recall

VESA MOUNT COMPLIANT

100mm × 100mm
ERGONOMICS

20~-5 degrees
WEIGHT

Net: 3.8kg / 8.4lbs
OPERATING CONDITIONS

Humidity: 10 - 90 (%)

Temperature: 0 - 40 (°C) / 32 - 104 (°F)

PC:	VGA up to 1920 × 1080 Non Interlaced
Mac®:	1920 × 1080 Non Interlaced

Power:	Built-in power Adapter, 3-Pin plug
Analog:	1×15 pin mini D-sub

Humidity:	10 - 90 (%)
Temperature:	0 - 40 (°C) / 32 - 104 (°F)
