Key Features

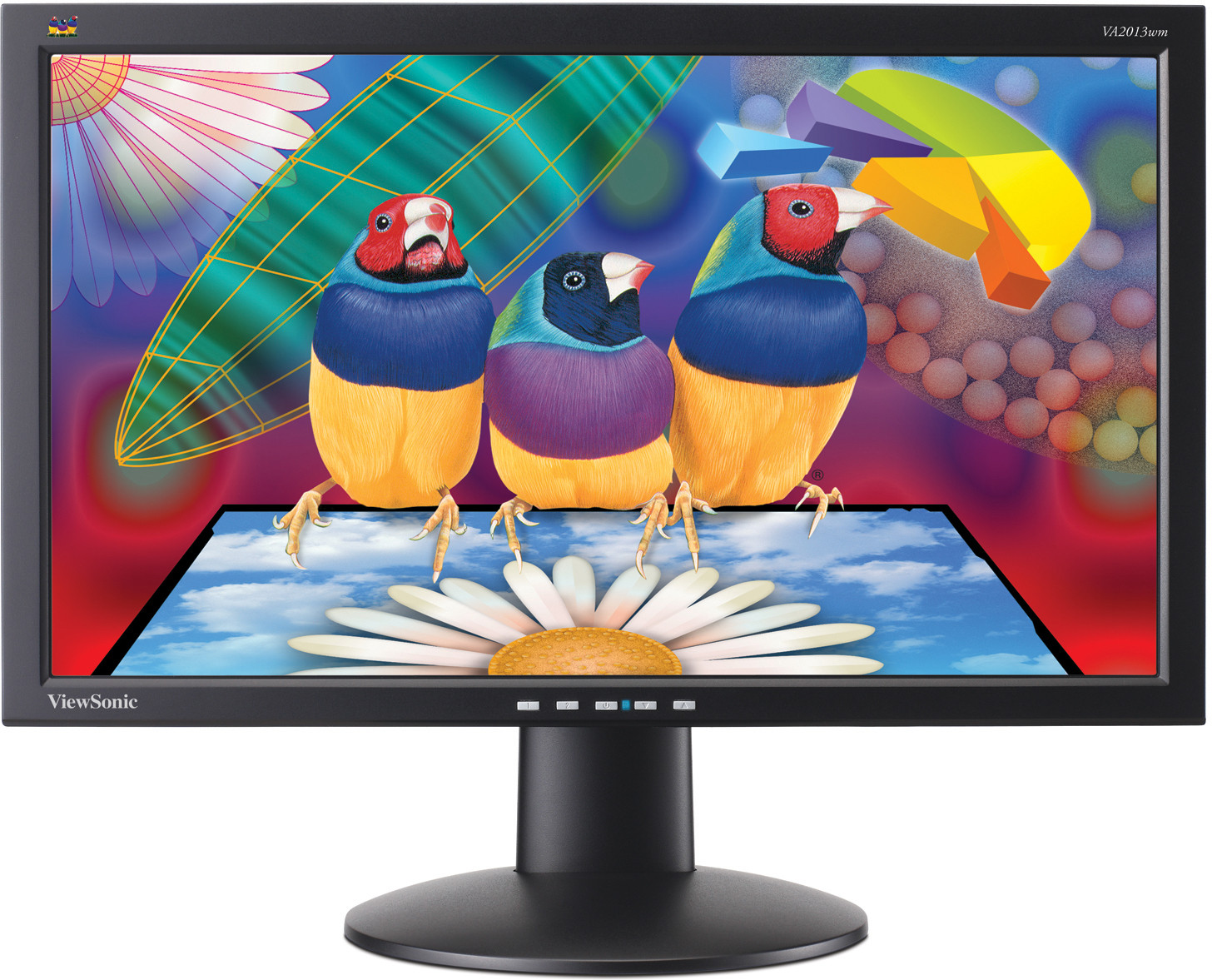

VA2013wm
Product Description
Visit Us
  • www.viewsonic.com
  • COLORS
    Black
  • LCD
    Contrast Ratio: 1000:1 (typ.) / 20000:1 dynamic
    Viewing Angles: 170o (H), 160o (V) at 10:1 c/r, 170o (H) 170o (V) at 5:1 c/r
    Brightness: 300 cd/m² (typ.)
    Display Area: 443 x 249 (mm)
    Optimum Resolution: 1600×900
    Response Time: 5ms (typ.)
    Light Source: 50,000 hrs (typ.)
    Panel Surface: Anti-Glare, Hard coating (3H)
    Pixel Pitch: 0.276mm(H) x 0.276mm(V)
    Colour Support: 16.7 M (6-bits + Hi FRC)
    Size: 50.80cm (20") wide Color TFT Active Matrix LCD 16:9 aspect ratio
  • COMPATIBILITY
    PC: VGA up to 1600×900 Non Interlaced
    Mac®: Power Mac, up to 1600×900
  • DIMENSIONS
    Physical With Stand: 481 x 369 x 200 (mm), 18.94 x 14.51 x 7.86 (in)
    Physical Without Stand: 481 x 288 x 64(mm), 18.94 x 11.32 x 2.52 (in)
  • PACKAGE CONTENTS

    LCD display, VGA cable, Power cable, Quick Start Guide, ViewSonic Wizard CD
  • AUDIO
    Speaker: W×2
  • INPUT
    Sync: Separate Sync
    Analogue: RGB Analog (75 ohms, 0.7 / 1.0 Vp-p)
    Frequency: Fh: 24-82kHz, Fv: 50-75Hz
  • CONNECTOR
    Analogue: 1×15 pin mini D-sub
    Power: Built-in power Adapter, 3-Pin plug
    Audio Input: 1×3.5 mm Audio in
  • POWER
    Voltage: AC 100-240V (Universal); 50/60Hz(Switch)
    Consumption: 46 (typ)
    Eco Mode: optimize 30W (typ.) / conserve 23W (typ.)
    Save mode: ≦1W
  • CONTROLS
    Basic: [1], [2], Power, Down[▼], Up[▲]
    On View (PC mode): Auto Image Adjust

    Contrast/Brightness

    Audio adjust: Volume mute

    Color Adjust: sRGB, 9300K, 7500K, 6500K, 5000K

    User Color: [R, G, B]

    Information

    Manual Image Adjust: H/V position, horizontal size, fine tune, sharpness, dynamic contrast, aspect ratio, Eco mode, setup menu, language select, resolution notice, OSD Position, OSD Time Out, OSD Background, memory recall.
  • OPERATING CONDITIONS
    Temperature: 41°F - 95°F (5°C - 35°C)
    Humidity: 20 - 80% (Non condensed)
  • WEIGHT
    Net: 4.12kg (9.08lbs)
    Gross: 5.21kg (11.49lbs)
  • POWER MANAGEMENT
    TCO'03, ENERGY STAR
  • ERGONOMICS
    20° ~ -5°
  • VESA MOUNT COMPLIANT
    VESA 100mm x 100mm
