Key Features

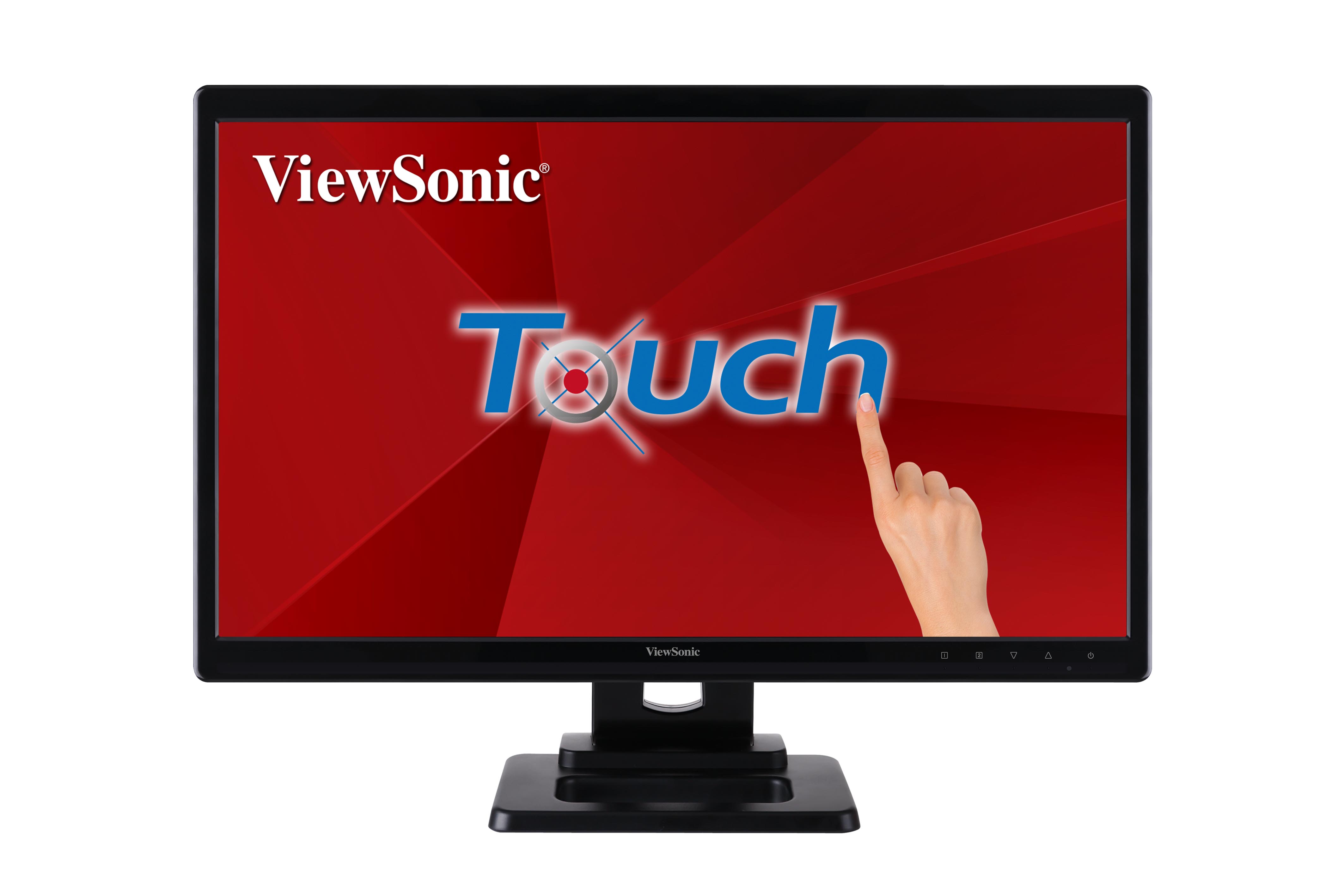

TD2420
Product Description
The ViewSonic® TD2420 is the perfect solution for both commercial and consumer touch screen applications. With an intuitive multi-touch LED display, interactive stylus, and full HD resolution, the TD2420 delivers a versatile touch solution for use as a POS display, information kiosk, or in hospital and classroom environments. With Windows® 8 compatible Dual Point Optical technology, the TD2420 provides a fun and interactive experience to engage users. Equipped with 1920x1080 Full HD resolution, and 20,000,000:1 MEGA Dynamic Contrast Ratio, the ViewSonic TD2420 delivers extremely sharp and crisp images. As a complete multimedia package, the display also includes a pair of integrated 2-watt speakers with SRS Premium Sound®. HDMI, VGA, and DVI inputs provide flexible and convenient connectivity, while a VESA-mountable design offers additional convenience for use as a wall-mounted display. The versatile TD2420 is the one-stop solution for your multi-touch display needs.
Visit Us
  • www.viewsonic.com
  • LCD
    Type: 24" (23.6" viewable) Wide Color TFT Active Matrix LED
    Optimum Resolution: 1920x1080
    Contrast Ratio: 1000:1 (typ.)
    Viewing Angles: 170º horizontal, 160º vertical
    Response Time: 5ms (typ.)
    Panel Surface: hard-coating (7H)
    Display Area: 20.5" horizontal x 11.5" vertical; 23.6" diagonal 521.28(W) x 293.22(H) mm
    Brightness: 210 cd/m² (typ)
    Dynamic Contrast Ratio: 20,000,000:1
    Backlight: White-light LED
    Backlight Life: 30,000 hours (min.)
  • VIDEO INPUT
    Analog: RGB analog (0.7 / 1.0 Vp-p, 75 ohms)
    Digital: HDMI, DVI (TMDS, 100 ohms)
    Frequency: Fh: 24~82kHz, Fv: 50~75Hz
    Sync: Separate Sync
  • COMPATIBILITY
    PC: PC compatibles (Windows® 7 / 8 Operating System)
  • CONNECTOR
    Audio: Audio In (3.5mm mini-jack)
    Headphone (3.5mm mini-jack)
    Power: Internal power board, 3-pin plug (CEE22)
  • CONTROLS
    Front Panel: 1, 2, Down, Up, Power
  • DIMENSIONS
    Physical (mm): 622.29 x 459.30 x 192.50
    Physical (in): 24.49" x 18.08" x 7.57"
    Packaging: 678 x 525 x 179

    26.69" x 20.66" x 7.04"
  • POWER
    Conserve: 20W (typ.)
    Voltage: AC 100–240V (universal), 50 / 60Hz
    Consumption: 25W (typ.)
    Optimize: 22W (typ.)
  • WEIGHT
    Net With Stand: 6.6 kg (3 lbs)
    Net Without Stand: 5.23 kg (2.38lbs)
    Gross: 8.1kg (3.68lbs)
  • VESA® MOUNT
    100mm * 100mm
  • POWER MANAGEMENT
    Eco Mode
  • ERGONOMICS
    Tilt: -2° ~ 18° degrees
  • OPERATING CONDITIONS
    Temperature: 32° F to 104° F (0° C to 40° C)
    Humidity: 10% to 90% (no condensation)
  • AUDIO OUT
    Speakers: 2W x2
  • PACKAGE CONTENTS
    AC/DC Adaptor *1, Power Cable *1,Audio Cable *1, VGA Cable*1,Quick Start Guide *1, ViewSonic CD Wizard *1 USB cable *1, DVI cable *1, stylus*1
