Key Features

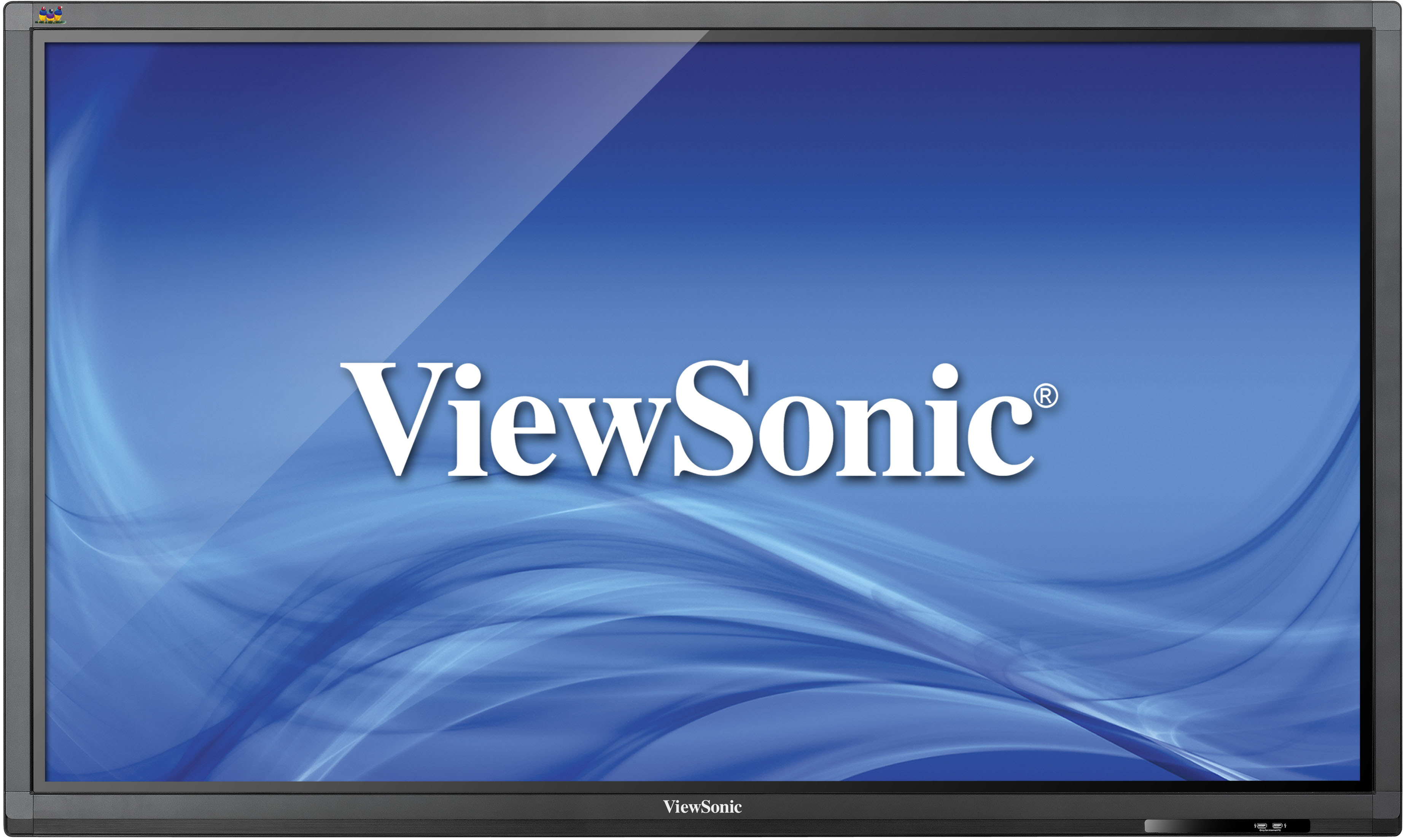

SWB7051
Product Description
The ViewSonic 69.5” SWB7051 is the ideal interactive display solution for in-classroom teaching, online training sessions, video conferencing and more. This 6-point touch-enabled Smart White board allows two or more users to simultaneously write and draw directly on the display using their fingers or styli. A Full HD LED screen guarantees crisp and vivid image quality with 400-nit brightness, the SWB7051 provides better visual performance in well-lit rooms. Visually attractive, the SWB7051 has an ergonomic design with a tempered glass overlay, anti-glare treatment and rounded corners. Best of all, its built-in PC and complimentary ViewBoard software make it perfect for running a wide range of Microsoft Windows 8 apps.
Visit Us
  • www.viewsonic.com
  • LCD
    Type: TFT LCD Module with LED Backlight
    Effective Viewing Area: 1538.88 (H) x 865.62 (V) (69.5” Diagonal)
    Contrast Ratio: 4000:1 Typ.
    Viewing Angles: 88º Horizontal, 88º Vertical
    Response Time: 6ms
    Aspect Ratio: 16:9
    Native Resolution: 1920 x 1080
    S-Video-In: 480i, 576i
    Size: 69.5”
    Backlight: LED
    Backlight Life: 50,000 Hours Typ.
  • COMPATIBILITY
    RGB PC / HDMI PC: Refer to timing table
    CVBS: 480i
    HDMI: 480i, 480p,720p, up to 1080p
    YPbPr: 480i, 480p,720p, up to 1080p
  • DIMENSIONS
    Physical (WxHxD): 64.9 x 39.3 x 3.8 (inches) / 1649 x 999 x 97 (mm)
    Packaging: 70.3 x 44.9 x 10.8 (inches) / 1785x1140x275 (mm)
  • AUDIO
    RCA: x1
    Speakers: 15W x2
  • CONNECTOR
    Audio Out: x1
    HDMI (input): x2
    RS-232: x1
    RGB: x2
    USB: x6
    Audio: Mini-stereo x2
    PC-VGA-Out: x1
    LAN: x1
    Mic In/Out: x1
    CVBS: x1
  • POWER
    Voltage: 100-240VAC +/- 10% Wide Range
  • CONTROLS
    Picture: Picture Mode, Contrast,Brightness, Color, Tint, Sharpness, Color Temp., Noise Reduction
    Set Up: OSD Language, TT Language, Hearing Impaired, PVR File System, Record List, Aspect Ratio, Blue Screen, Fist Time Installation, Reset, Software Update (USB)
    Configuration 1: Time: Clock, Time Zone, Sleep Timer, Auto Standby, OSD Timer
    Configuration 2: Lock: Lock System, Set Password, Block Program, Parental Guidance, Key Lock
    Physical: POWER, INPUT, PC/VGA, VOL+, VOL-, ZOOM, ENERGY SAVING
    Sound: Sound Mode, Treble, Bass, Balance, Auto Volume, SPDIF MODE, AD Switch
  • VESA® MOUNT
    600 x 600
  • INCLUDED ACCESSORIES
    VGA Cable x1

    Power Cable x4

    Remote Control x1

    USB Cable x1

    Audio Cable x1

    Stylus x3

    User Manual CD Wizard x1
  • WEIGHT
    Gross: 187.4 (lb) / 85 (kg)
    Net: 165.3 (lb) / 75 (kg)
  • OPERATING CONDITIONS
    Humidity: 20% ~ 80% Non-condensing
    Temperature: 32°F to 104°F (0°C to 40°C)
  • WARRANTY
    **Warranty offered may differ from market to market
  • VIDEO I/O
    YPbPr in: x1
  • AUDIO I/O
    SPDIF out: x1
  • INPUT
    USB Type A: x1
    USB Type B (mouse control): x2
  • BUILT-IN PC
    Processor: Intel Core i5
    Graphics: Integrated Intel HD 3000
    Sound Card: Integrated High Definition Audio Stereo
    Memory: DDR III 4GB
    Storage: 2.5” SATA2 HDD 500GB
    Networking: Integrated 10/100/1000M Adaption
