Key Features

SD-Z245
Product Description

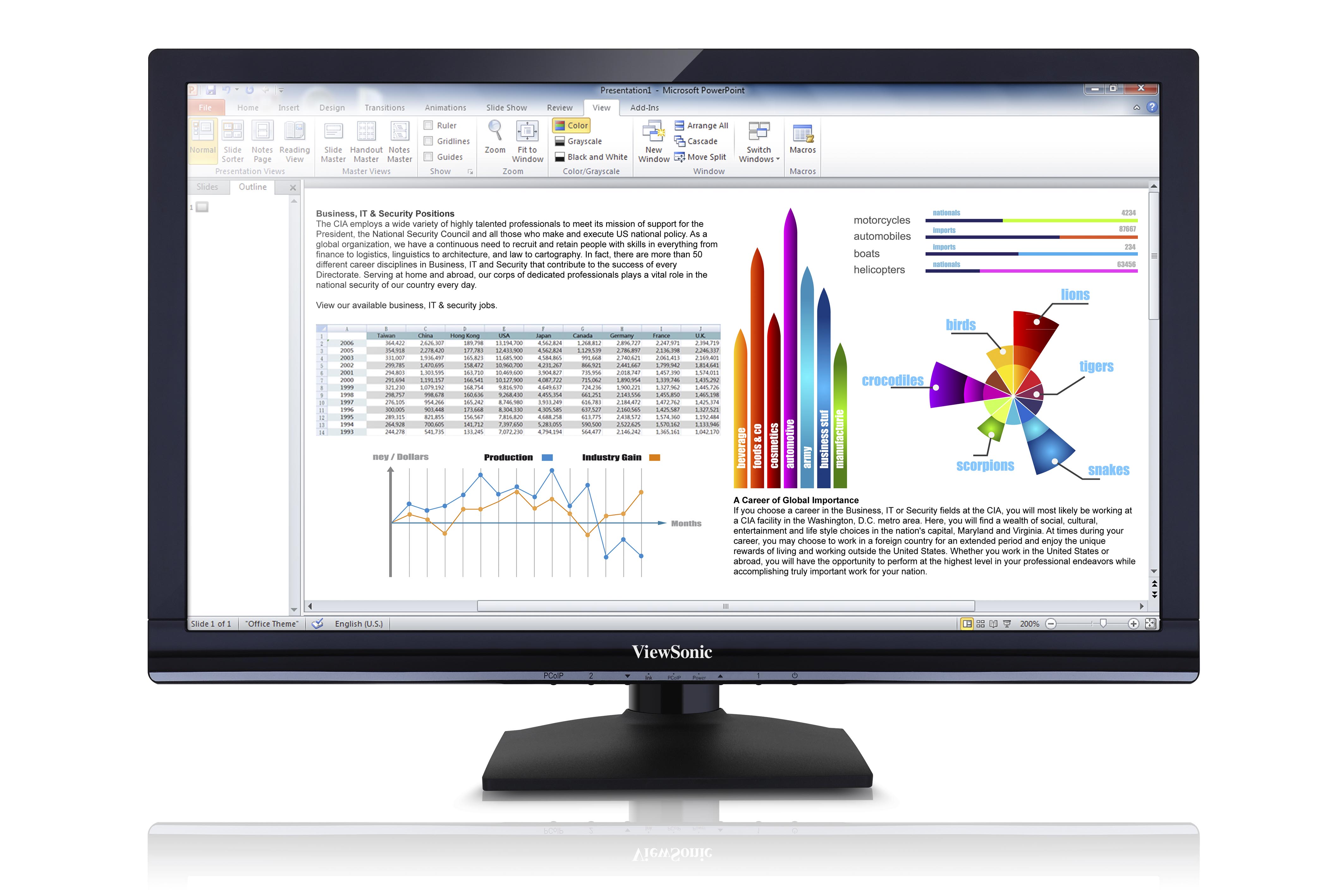

The ViewSonic® SD-Z245 24" (23.6" viewable) zero client monitor is based on Teradici™ Tera 2321, with hardware accelerated PCoIP™ support. The SD-Z245 zero client is the perfect solution for companies seeking a seamless desktop experience, with ultra-high security and reliability in networks based on VMware ® technology. The SD-Z245 is a true zero client and features no local memory or moving parts for the ultimate in energy savings and reliability. The VMware certified design guarantees performance and compatibility in your network. With the additional DVI output, flexible support is provided for dual monitor productivity. The eco-friendly design with LED display uses up to 80% less energy consumption than standard PCs.
Visit Us
  • www.viewsonic.com
  • LCD
    Type: 24" (23.6" viewable) Wide Colour TFT Active Matrix LED
    Effective Viewing Area: 170º horizontal, 160º vertical
    Contrast Ratio: 1000:1 (typ.)
    Display Area: 20.5" horizontal x 11.5" vertical; 23.6" diagonal
    Optimum Resolution: 1920 x 1080
    Response Time: 5ms (typ.)
    Panel Surface: Anti-glare, hard-coating (3H)
    Brightness: 250 cd/m2 (typ.)
    Dynamic Contrast Ratio: 20,000,000:1
    Backlight: White-light LED
    Backlight Life: 30,000 hours (min.)
  • COMPATIBILITY
    PC: PC compatibles (VGA up to 1920x1080 non-interlaced)
    Mac®: Up to 1920x1080
  • DIMENSIONS
    Physical With Stand: 22.3 x 15.5 x 7.5 in. / 566.4 x 392.7 x 189.9 mm
    Physical Without Stand: 22.3 x 13.6 x 1.9 in. / 566.4 x 345.4 x 48 mm
    Packaging: 24.8 x 18.4 x 6.2 in. / 630 x 467 x 158 mm
  • PACKAGE CONTENTS
    1.SD-Z245 Zero Client Monitor

    2.power cord

    3.power adapter

    4.VGA cable

    5.Quick Start Guide

    6.ViewSonic Wizard CD
  • CONNECTOR
    Power: External power adapter
    Video Input: 15-pin mini D-sub (VGA)
    Video Output: DVI-I (x1)
    USB: USB 2.0 (x4)
    Headphone: 3.5mm mini jack (x1)
    LAN: RJ45 (x1)
    Audio line in: 3.5mm mini jack (x1)
    Microphone in: 3.5mm mini jack (x1)
  • POWER
    Voltage: AC 100-240 V (universal), 50/60 Hz
    Consumption: 28W (typ)
  • CONTROLS
    Basic: PCoIP, 2, Down, Up, 1, Power
    OSD: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Colour Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall (See user guide for full OSD functionality)
  • OPERATING CONDITIONS
    Temperature: 32–95ºF (0–35ºC)
    Humidity: 15–90% (non-condensing)
  • WEIGHT
    Net With Stand: 11.2 lb. / 5.1 kg
    Net Without Stand: 8.6 lb. / 3.9 kg
    Gross: 14.6 lb / 6.6 kg
  • VESA® MOUNT
    100mm x 100mm
  • MEMORY
    System: DDR3 512MB @ 1066MHz
    Storage: None
  • VIDEO INPUT
    Analog/Digital: RGB analog (0.7 / 1.0 Vp-p, 75 ohms)
    Frequency: Fh: 24~82kHz, Fv: 50~75Hz
    Sync: Separate Sync
  • ERGONOMICS
    Tilt: Forward 5º / Back 20º
  • CORE
    CPU: Teradici Tera2321
    Image Performance: 50Mpps (DVI out)
  • GRAPHICS
    Chipset: None
    Resolution: 1920 x 1200 (for single display)
  • COMMUNICATION
    Ethernet LAN: 10/100/1000 MB
  • SOFTWARE
    Protocols: VMware PCoIP
  • AUDIO
    Speakers: 2-watt (x2)
