SD-Z225
Product Description

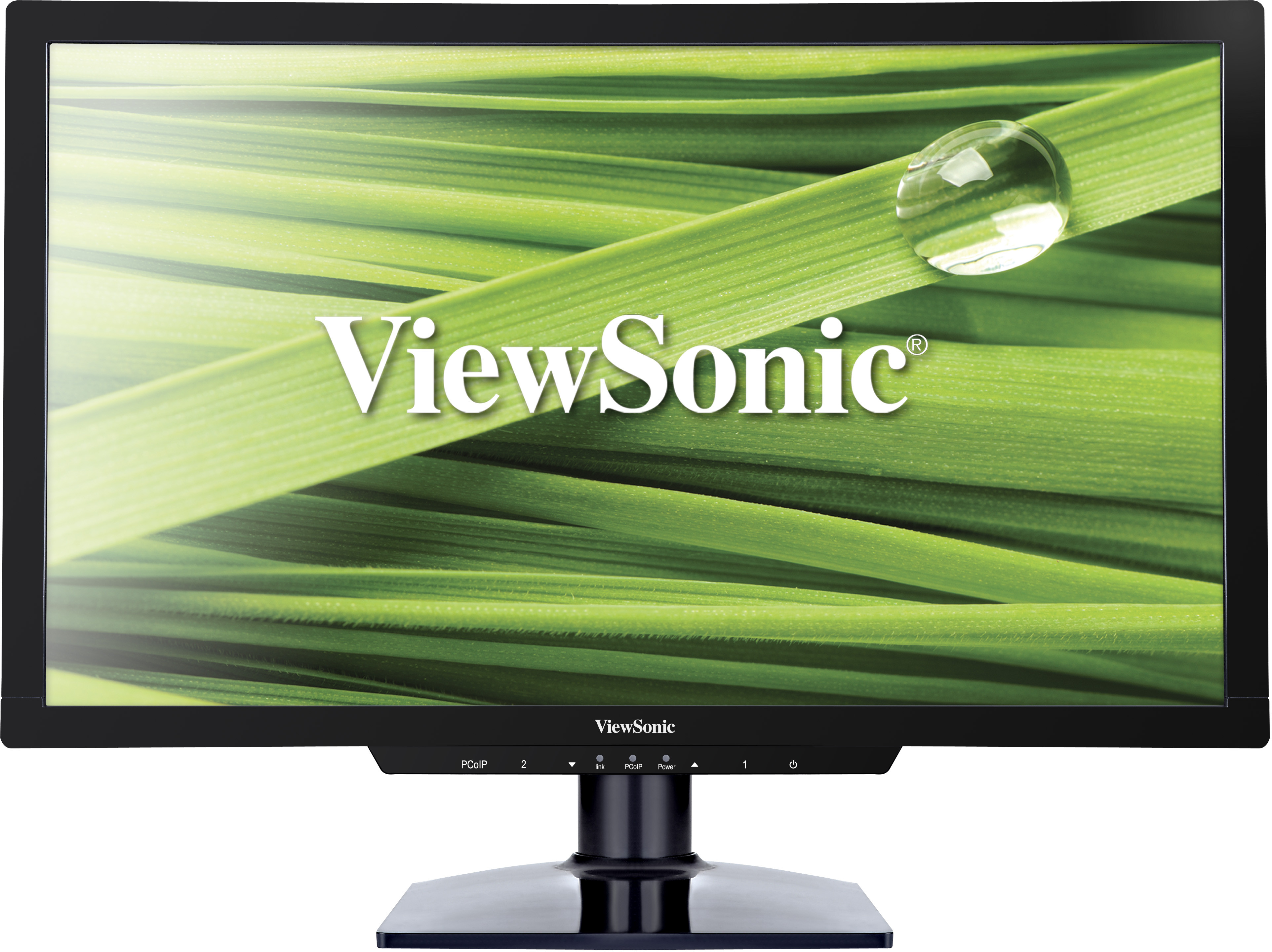

The ViewSonic® SD-Z225 22" (21.5" viewable) zero client monitor is based on Teradici™ Tera 2321, with hardware accelerated PCoIP™ support. The SD-Z225 zero client is the perfect solution for companies seeking a seamless desktop experience, with ultra-high security and reliability in networks based on VMware ® technology. The SD-Z225 is a true zero client and features no local memory or moving parts for the ultimate in energy savings and reliability. The VMware-certified design guarantees performance and compatibility in your network. With the additional DVI output, flexible support is provided for dual monitor productivity. The eco-friendly design with LED display uses up to 80% less energy consumption than standard PCs.
Visit Us
  • www.viewsonic.com
  • LCD
    Type: 22" (21.5" viewable) Wide Colour TFT Active Matrix LED
    Effective Viewing Area: 170º horizontal, 160º vertical
    Contrast Ratio: 1000:1 (typ.)
    Display Area: 19.0" horizontal x 10.7" vertical; 21.5" diagonal
    Optimum Resolution: 1920 x 1080
    Response Time: 5ms (typ.)
    Panel Surface: Anti-glare, hard-coating (3H)
    Brightness: 250 cd/m2 (typ.)
    Dynamic Contrast Ratio: 20,000,000:1
    Backlight: White-light LED
    Backlight Life: 30,000 hours (min.)
  • COMPATIBILITY
    PC: PC compatibles (VGA up to 1920x1080 non-interlaced)
    Mac®: Up to 1920x1080
  • DIMENSIONS
    Physical With Stand: 22.3 x 15.5 x 7.5 in. / 566.4 x 392.7 x 189.9 mm
    Physical Without Stand: 22.3 x 13.6 x 1.9 in. / 566.4 x 345.4 x 48 mm
    Packaging: 24.8 x 18.4 x 6.2 in. / 630 x 467 x 158 mm
  • CONNECTOR
    Power: External power adapter
    Video Input: 15-pin mini D-sub (VGA)
    Video Output: DVI-I (x1)
    USB: USB 2.0 (x4)
    Headphone: 3.5mm mini jack (x1)
    LAN: RJ45 (x1)
    Audio line in: 3.5mm mini jack (x1)
    Microphone in: 3.5mm mini jack (x1)
  • POWER
    Voltage: AC 100-240 V (universal), 50/60 Hz
    Consumption: 28W (typ)
  • CONTROLS
    Basic: PCoIP, 2, Down, Up, 1, Power
    OSD: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Colour Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall (See user guide for full OSD functionality)
  • OPERATING CONDITIONS
    Temperature: 32–95ºF (0–35ºC)
    Humidity: 15–90% (non-condensing)
  • WEIGHT
    Net With Stand: 11.2 lb. / 5.1 kg
    Net Without Stand: 8.6 lb. / 3.9 kg
  • MEMORY
    System: DDR3 512MB @ 1066MHz
    Storage: None
  • VIDEO INPUT
    Analog/Digital: RGB analog (0.7 / 1.0 Vp-p, 75 ohms)
    Frequency: Fh: 24~82kHz, Fv: 50~75Hz
    Sync: Separate Sync
  • ERGONOMICS
    Tilt: Forward 5º / Back 20º
  • CORE
    CPU: Teradici Tera2321
    Image Performance: 50Mpps (DVI out)
  • GRAPHICS
    Chipset: None
    Resolution: 1920 x 1200 (for single display)
  • COMMUNICATION
    Ethernet LAN: 10/100/1000 MB
  • SOFTWARE
    Protocols: VMware PCoIP
  • AUDIO
    Speakers: 2-watt (x2)
