Key Features

Product Description

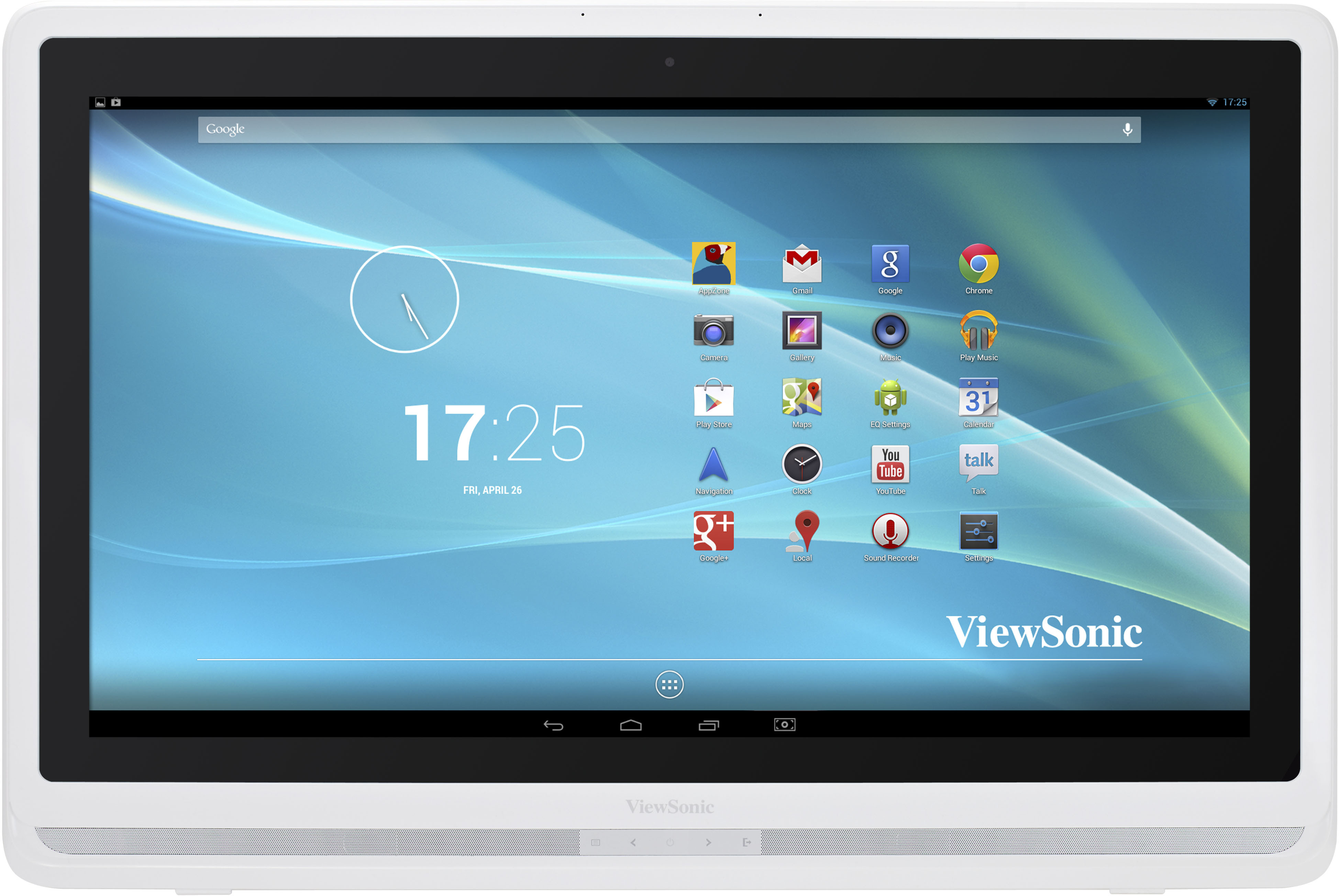

The ViewSonic SD-A245 is a 24” (23.8” viewable) multi-touch Smart Display with 1920 x 1080 Full HD resolution. It features a NVIDIA Tegra 33 1.7Ghz processor and Citrix® XenMobile® to provide a manageable, locked-down solution for enterprise. Versatile connectivity options include HDMI (MHL), two full-size USB ports, micro & mini USB, SD card reader, RJ45 and headphone jack, and also a 2M-pixel webcam with integrated microphone for video conferencing. Wireless and Bluetooth network connections provide instant access to transfer data, documents and multimedia files. Integrated speakers with the ViewSound Premium Audio system complete the package for multimedia enjoyment. The SD-A245 provides the security and control needed on your desktops to leverage the investments being made in mobile and cloud-based tools.
Visit Us
  • LCD
    Type: 24" (23.8" viewable) Wide Colour TFT Transmissive LED
    Contrast Ratio: 1000:1 (typ.)
    Viewing Angles: 170º horizontal, 160º vertical
    Display Area: 19.0" horizontal x 10.7" vertical; 23.8" diagonal
    Optimum Resolution: 1920 x 1080p
    Response Time: 5ms (typ.)
    Brightness: 250 cd/m2
    Backlight: White-light LED
    Backlight Life: 30,000 hours (min.)
    Touch Controller: Dual touch with pinch and zoom
    Touch Panel: Optical touch type, with glass 8H
    PC: PC-compatible (from VGA up to 1920x1080 non-interlaced)
    Physical (WxHxD): 24.0 x 18.9 x 3.0 in. / 610 x 480 x 75 mm
    Packaging: 29.0 x 20.5 x 6.5 in. / 735 x 520 x 164 mm
    **Warranty offered may differ from market to market
    Please dispose of in accordance with local, state or federal laws
    HDMI (input): HDMI (with MHL)
    USB: Type A (x2), micro USB (x1), mini USB (x1)
    Audio: Headphone jack
    Card Reader: SD card
    LAN: RJ45, Wi-Fi 802.11 b/g/n, Bluetooth V2.1
    Power: DC-In jack (ID 1.7mm, OD 4.0mm)
    Speaker: 2W (x2)
    Voltage: AC-DC power (Input: 100V~240V / Output: DC 19V , 3.4 A)
    Consumption: 65 Watt (typ.)
    100 x 100 mm
    2.0MP – HD 1080p
    Tilt: 15º – 70º
    Gross: 18.7 lb. / 8.5 kg
    Net: 15.9 lb. / 7.2 kg
    Humidity: 20–90% (non-condensing)
    Temperature: 32–104º F (0–40º C)
    SD-A245 smart display client, power cord and adapter, micro USB cable, mini USB cable, Quick Start Guide

    *Actual content may differ from market to market
    CPU Processor: NVIDIA® Tegra® 3 Quad-Core 1.7GHz
    Operating System: Android™ 4.2 Jelly Bean
    System Memory: LPDDR3 1GB
    Storage Memory: 8GB (eMMC4.4)
    Internal MIC: Echo cancelling
