Key Features
  • Short throw ratio
  • 15,000 hours lamp life
  • HV keystone and 4 corner adjustment
  • Dual HDMI inputs
  • Built in USB type A for charging

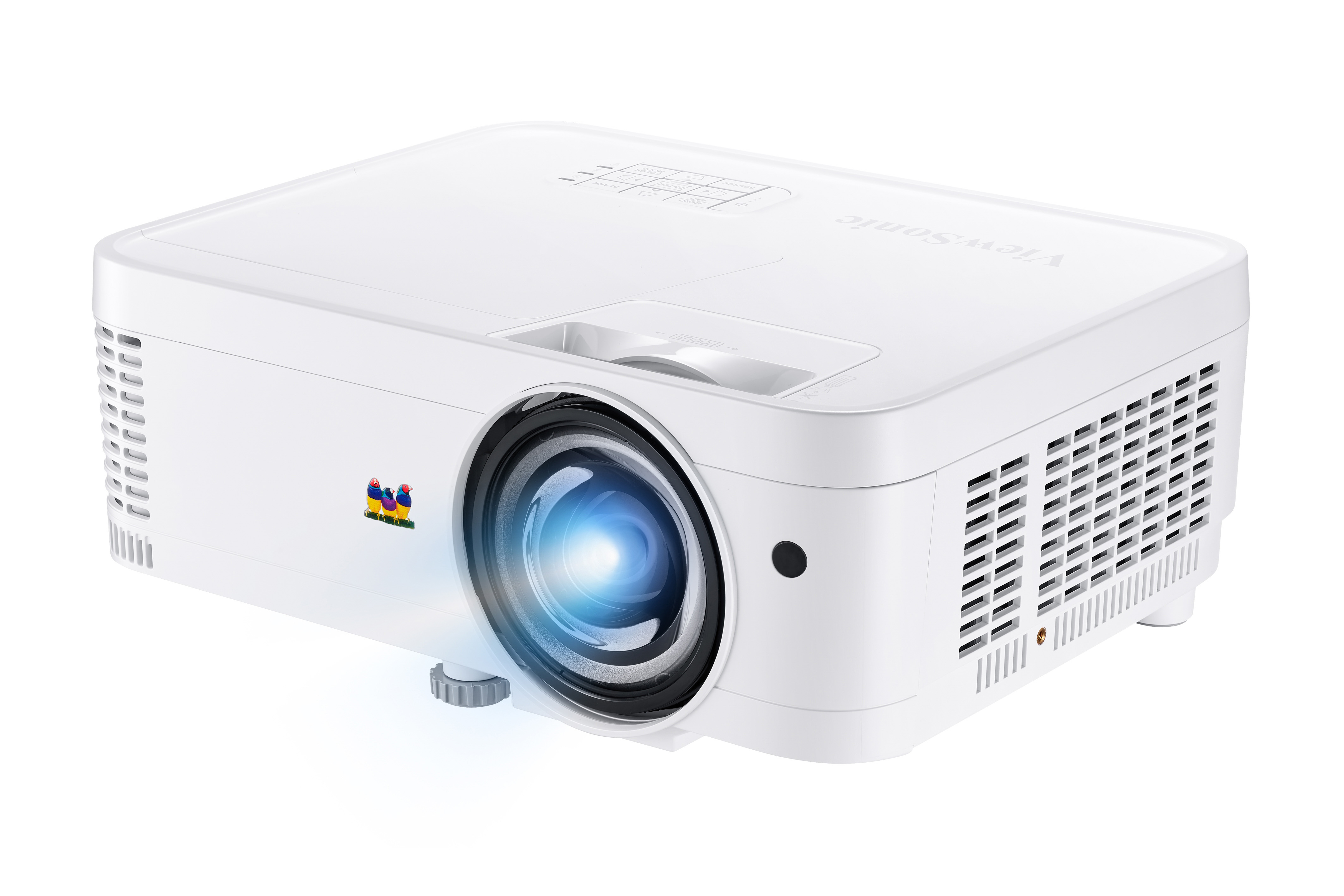

PS600X
Product Description
The PS600X is a high brightness XGA short throw projector for education. With the ability to project 100” images from a distance of 124cm from the projection surface, PS600X is flexible enough to fit any classroom design while keeping the presenter clear of the projection beam. A brightness of 3700 ANSI Lumens allows the projector to project clear, detailed images with the lights kept on so students can more easily take notes and maintain focus. The energy-saving SuperEco mode reduces power consumption and extends lamp life to a lengthy 15,000 hours. PS600X is compatible with PJ-vTouch-10S, the optional interactive module that turns class into an engaging interactive teaching environment. In addition, users can easily control and manage PS600X remotely via the LAN network solution for maximum efficiency.
  1. Keypad
  2. LED indicator
  3. Power Key
  4. Focus
  5. Front IR
  6. Lens
  7. Audio in/out
  8. HDMI
  9. USB Reader / USB WIFI
  10. Computer in
  11. Monitor out
  12. LAN
  13. Video
  14. Mini USB
  15. RS232
Visit Us
  • www.viewsonic.com
  • SPECIFICATION
    Native Resolution: 1024x768
    DC type: DC3
    Brightness: 3700 ANSI Lumens
    Contrast Ratio with SuperEco mode: 22000:1
    Display Color: 1.07 Billion Colors
    Light Source: Lamp
    Light source life (Nor/SuperEco): 5000/15000
    Lamp Watt: 190W
    Lens: F=2.6, f=6.9mm
    Projection Offset: 130%+/-5%
    Throw Ratio: 0.61
    Image size: 60" - 300"
    Throw Distance: 0.74m-3.72m (100" @ 1.06m)
    Keystone: HV
    Optical Zoom: Fixed
    Audible Noise (Eco): 27dB
    Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Video Compatibility: NTSC, PAL, SECAM
    Horizontal Frequency: 15K~102KHz
    Vertical Scan Rate: 23~120Hz
  • INPUT
    Computer in (D-SUB 15 pin): 2
    Composite: 1
    Audio-in (3.5mm): 1
    HDMI/HDCP: 2
    (HDMI 1.4/ HDCP 1.4)
  • OUTPUT
    Monitor out (D-SUB 15 pin): 1
    Audio out (3.5mm): 1
    Speaker: 10W
    USB type A (Power): 1 (5V/1A)
  • CONTROL
    RS232: 1
    RJ45: 1
    USB type mini B (Services): 1
  • OTHERS
    Power Supply Voltage: 100-240V+/- 10%, 50/60Hz AC
    Power Consumption: Normal: 260W
    Standby: <0.5W
    Operating Temperature: 0~40℃
    Carton: Brown
    Net Weight: 2.6kg
    Dimensions (WxDxH) w/adjustment foot: 292x236x115mm
    Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese
  • STANDARD ACCESSORY
    Power Cord: 1
    VGA cable: 1
    Remote Control: 1 (w/Laser pointer)
    QSG: 1
    Lens Cover: 1
  • OPTIONAL ACCESSORY
    Lamp/Light Source: RLC-108
