Pen Display
PD1910
Key Features
Product Description

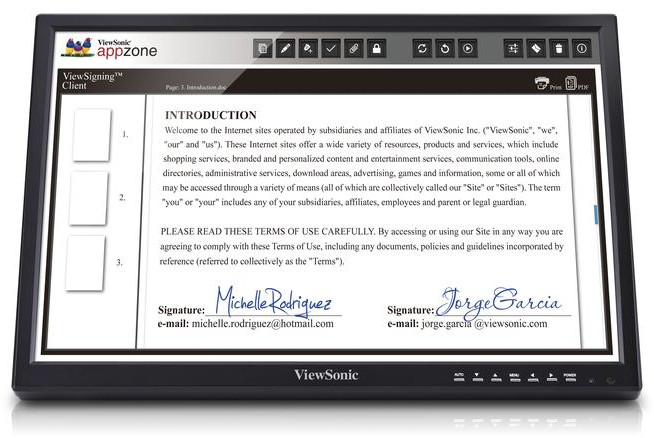

The ViewSonic 19” (18.95'' viewable) PD1910 pen display supports 1440x900 high resolution and features advanced electromagnetic resonance pen (EMP) technology to deliver an intuitive, accurate and authentic handwriting experience. With leading 2048 pen pressure sensitivity, 220pps tracking speed, and 5080 line per inch density, the PD1910 allows you to accurately and naturally write, sign, or draw directly on the display. Battery-free V Pen and hover capabilityprovides user-friendly and convenient touch operation. With sturdy,ergonomic bookstand design, VGA and DVI connectivity to PCs or laptops, and Windows® 7, Windows® 8, and Mac® OS 10.5 or above compatibility, the PD1910 makes a great device to support e-signature applications and digital art drawing solutions.
Visit Us
- www.viewsonic.com
-
LCD PANEL
Display Area: 19'' (18.95'' viewable) Optimum Resolution: 1440 x 900, 16:10 Brightness: 250 cd/m2 Contrast Ratio: 1000:1 Viewing Angles: 170°/170° Backlight: LED Light-Bar Surface Treatment: 8H tempered glass -
INPUT
Video Input: D-Sub, DVI -
TOUCH
Technology: Electromagnetic Resonance Touch Pen: Battery-Free Digitizer Resolution: 5080LPI Writing Response: 220 PPS (point per second) Accuracy: ± 0.5mm (center), ± 2 mm (edge) Pressure Level: 2048 levels Detectable Height: 10mm above glass -
ERGONOMICS
Tilt: 35°, 79° ± 5° -
COMPATIBILITY
PC: Windows Vista, Windows XP, Windows 7, Windows 8 Mac: 10.5, 10.6, 10.7, 10.8 -
POWER
Voltage: 12V / 3A Consumption: 28 W -
OPERATING CONDITIONS
Temperature (º F / º C): 32°F to 104°F (0°C to 40°C) Humidity: 20% - 80%(Max), Non-Condensation -
DIMENSIONS W X H X D (INCHES)
Physical: 17.4” x 11.6” x 9.87” inch / 441.6 x 294 x 250.8 mm Box: 19.1” x 16.4” x 8.3” inch / 484 mm x 417 x 211 mm -
WEIGHT
Net (lb / kg): 8.61 lb / 3.9kg Gross (lb / kg): 11.79 lb / 5.3kg -
WHAT'S IN THE BOX
1. Pen Display*1 2. Power cord*1 3. Power Adapter *1 4. Quick Star Guide *1 5. Driver CD*1 6. VGA cable*1 7. USB cable*1 8. Pen*1 9. Pen holder*1(including Pen tip*6) 10. Warranty card*1(VSCN only)*1 *Actual content may differ from market to market
