Key Features

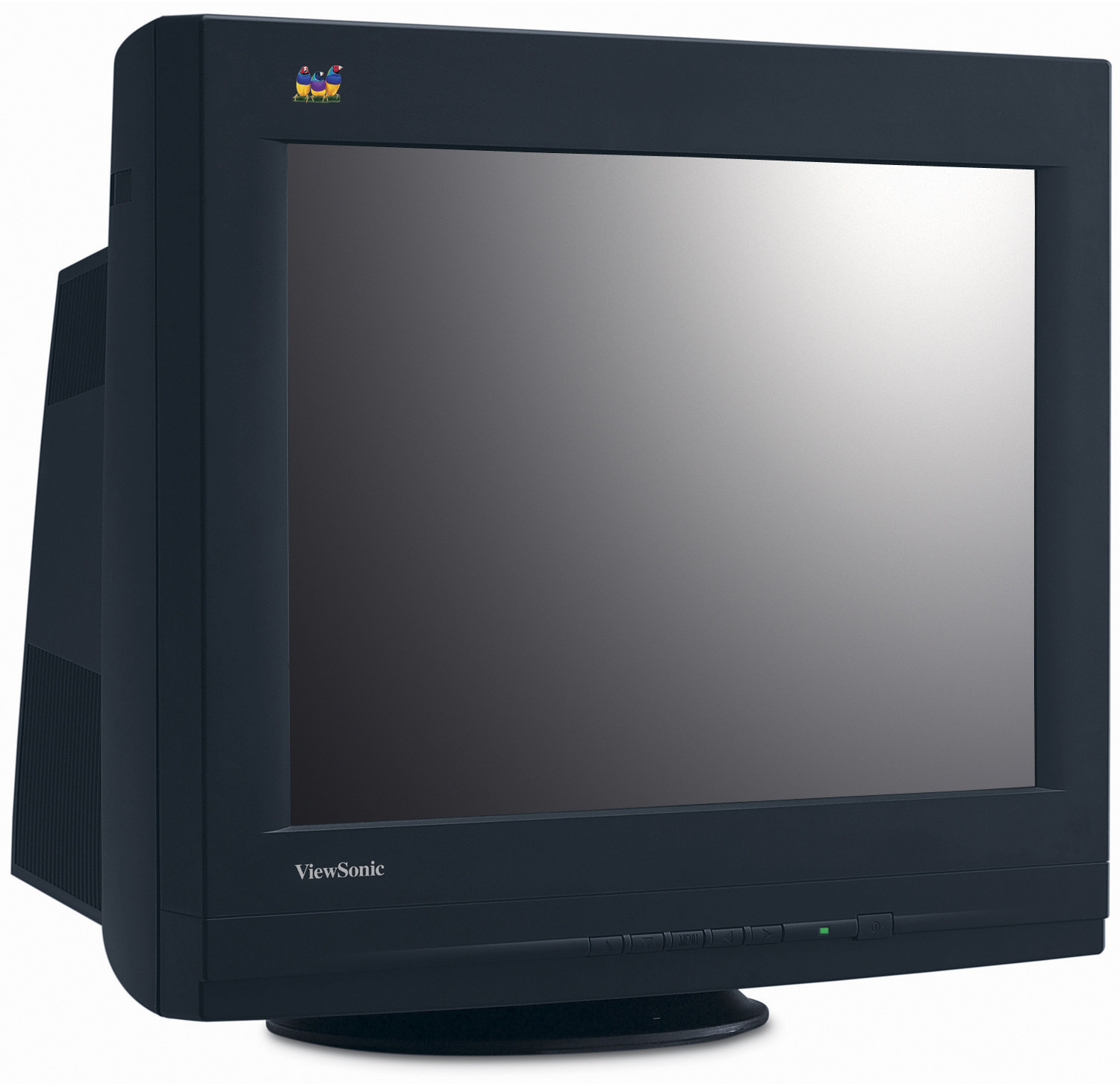

P227fb
Product Description
Top professional users searching for an extremely powerful yetaffordable 21" monitor with superior image quality shouldlook no further than the P227fb from ViewSonic. Thanks to itshigh resolution and impressive refresh rates as well as ultra-fine0.25 mm dot pitch, the model convinces with an absolutelyprecise picture from edge-to-edge in rich, true-to-life colour.For optimal viewing, more than 20 image parameters can beindividually adjusted. The completely flat (PerfectFlat) screen andARAG anti-glare treatment effectively minimise reflections, toreduce eyestrain and increase productivity.
Visit Us
  • www.viewsonic.com
  • COLORS
    Black
  • COMPATIBILITY
    PC: PC and compatible (from VGA up to 2048 x 1536)
    Mac®: Power Mac™ (from VGA up to 2048 x 1536)
  • DIMENSIONS
    Physical (WxHxD): 501mm (W) x 503mm (H) x 477mm (D)
  • INPUT SIGNAL
    Frequency: Fh: 30 - 130kHz, Fv: 50 - 160Hz
    Video: RGB analogue (0.7 Vp-p, 75 ohms)
    Sync: H/V separated (TTL), composite, sync on green
  • CONNECTOR
    Signal: 15-pin mini D-sub, BNC x 5 (RGBHV)
    Power: 3-pin plug (IEC320)
  • POWER
    Voltage: AC 90 - 264V, 50/60Hz (+/- 2Hz) (auto switch)
    Consumption: 125 Watt (typ.), < 2 Watt in power save mode
  • CONTROLS
    Basic: Power on/off, menu, up, down, right, left
    OSD: Auto calibrate, language, input select (D-sub, BNC), zoom, H/V position,
    H/V size, side curve, pincushion, pin balance, trapezoid, parallelogram,
    tilt, H/V moiré reduction, H/V-convergence, purity, ViewMatch® colour
    (sRGB, 9300k, 6500k, 5000k, smart mode, professional mode), degauss,
    preset to factory setting, H/V OSD position, OSD lock
  • WEIGHT
    Net: 26.4kg
  • VIDEO INPUT
    Bandwidth: 360MHz (typ.)
  • POWER MANAGEMENT
    Meets TCO'03 and Energy Star™ standards
  • ERGONOMICS
    Tilt: Down 5°, up 20°

    Swivel:180°(90° left/right)
  • CRT
    Type: 21” (20” viewable) CRT, 90° deflection, PerfectFlat™
    Dot Pitch: 0.20mm horizontal x 0.14mm vertical, 0.25mm diagonal
    Phosphor: RGB medium-short persistence P22
    Glass Surface: Tint (TM ~ 54.5%), ARAG® screen treatment
  • MISCONVERGENCE
    0.25mm (max.) at centre

    0.35mm (max.) at corner
  • PROGRAMMABLE MODES
    Factory: 12
    User: 12
  • DISPLAY AREA
    Factory Setting: 392mm (H) x 294mm (V) (typ.)
    Maximum Scan: 410mm (H) x 300mm (V) (depending on signal timing used)
  • OPERATING CONDITIONS
    Humidity: 5% to 95% (non condensation)
    Temperature: 0°C to 40°C
