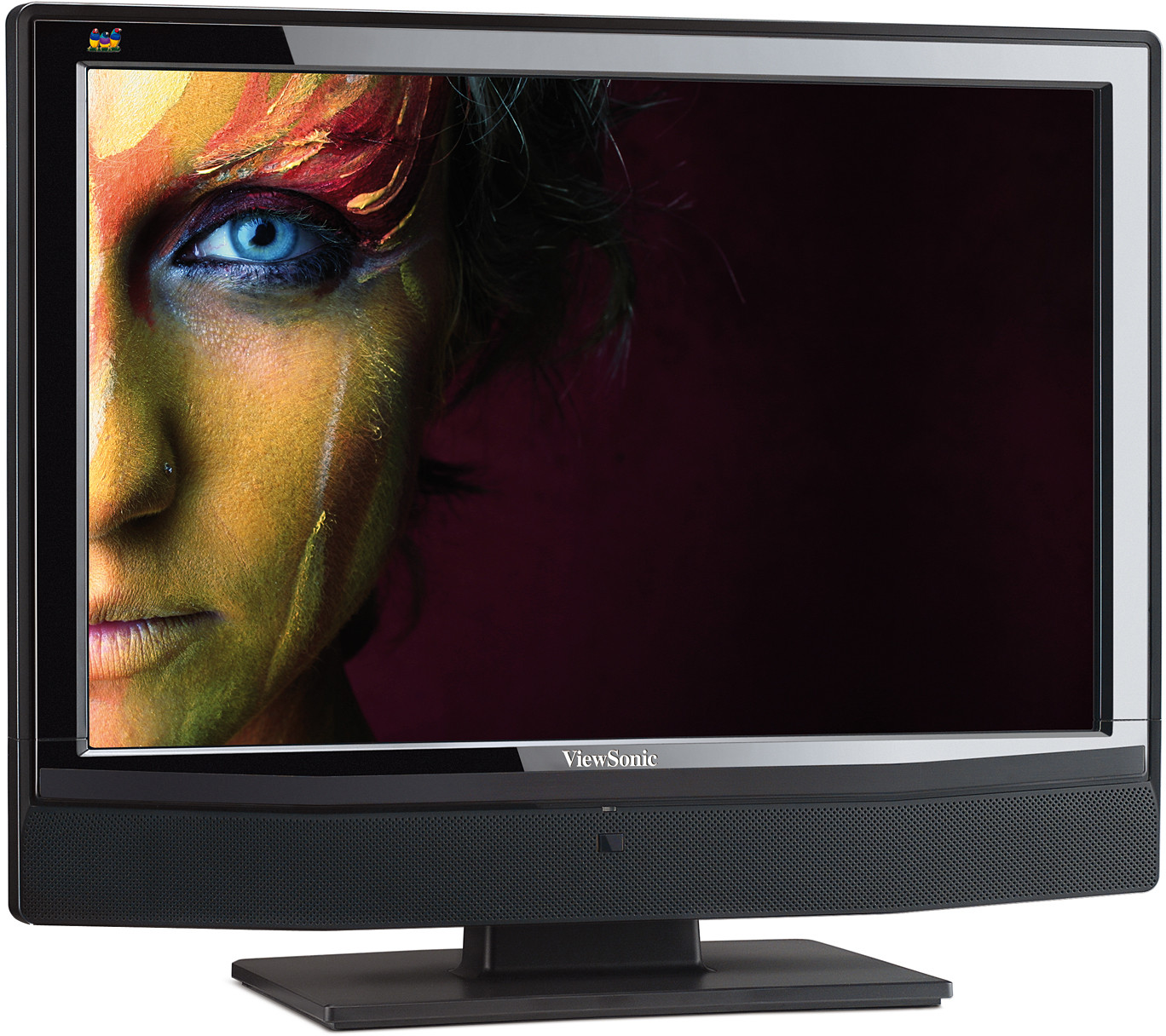

ViewSonic NX2240w 22" WIDESCREEN HIGH DEFINITION LCD TV

COLORS

Black

LCD

Type:	22“ TN colour TFT active matrix WSXGA + LCD
Contrast Ratio:	1000:1 (typ.)
Viewing Angles:	170° horizontal, 160° vertical (at 10:1)
Brightness:	300 cd/m² (typ.)
Display Area:	47.4cm horizontal x 29.6cm vertical, 55.9cm diagonal
Response Time:	5ms (grey-to-grey)
Aspect Ratio:	16:10
Panel Surface:	Anti-glare 3H

COMPATIBILITY

PC: Compatible from VGA up to 1680 x 1050 @ 60Hz preferred

Mac®: Power Mac™ up to 1680 x 1050 @ 60Hz preferred
DIMENSIONS

W x H x D mm: 539 x 447 x 209 (with base)
620 x 523 x 160 (packaging)

PACKAGE CONTENTS

LCD TV, power cables (Europe [Schuko]/UK), 15-pin VGA to component adapter, adapter cable, AV cable, 3.5mm PC audio to RCA R/L audio adapter cable, remote control, batteries, quick start guide, user guide (multi-language)

WARRANTY

Please see:
www.viewsoniceurope.com/UK/Support/warranty.htm
AUDIO

Speaker: 2 x 2 Watt

CONNECTOR

Digital:	1 x HDMI
S-Video:	1 x 4-pin mini DIN jack
Headphone:	1 x 3.5mm mini stereo jack
SCART:	1 x SCART2 (CVBS, RGB, Audio)
Tuner:	1 x Coax RF (PAL/SECAM)
PC:	1 x 15-pin mini D-sub
Power:	3-pin plug (CEE22)
Composite Video:	1 x RCA (CVBS)
Component Video:	Via 15-pin mini D-sub to 3 x RCA component video adapter
Audio In:	1 x RCA Audio set L/R for S-video/composite 1 x 3.5mm mini stereo jack for component/PC

POWER

Voltage: AC 100–240V, 50/60Hz (auto switch), internal, fanless power supply

Consumption: <75 watt (max.)

CONTROLS

Basic:

Power, source, menu, channel up/down, volume up/down

OSD:

Picture Menu (contrast, brightness, colour, sharpness, dynamic skin tone, colour temperature, user RGB, preset, phase, clock, auto adjust, info, reset), Audio Menu (volume, balance, bass, treble, AVL, loudness, preset, equalizer, reset), Function Menu (source OSD, language [Danish, English, Finnish, French, German, Italian, Norwegian, Russian, Spanish, Swedish], country, sleep timer, tele text language, reset), TV Setup Menu (autosearch, colour system, frequency, AFC, channel skip, channel name, channel select, reset)

OPERATING CONDITIONS

Temperature: 32-104ºF (0-40ºC)

Humidity: 10% - 85% (non-condensation)
WEIGHT

Net: 6.2kg (with base) 5.5kg (without base)

Gross: 8.7kg
VESA MOUNT COMPLIANT

VESA FDMI 100mm x 100mm (M4.0 x 10mm screws)
TELETEXT

Yes (10 pages)
VIDEO INPUT

PAL, SECAM, NTSC3, SDTV/EDTV (480i/p, 576i/p), HDTV (720p, 1080i)

PC:	Compatible from VGA up to 1680 x 1050 @ 60Hz preferred
Mac®:	Power Mac™ up to 1680 x 1050 @ 60Hz preferred

Voltage:	AC 100–240V, 50/60Hz (auto switch), internal, fanless power supply
Consumption:	<75 watt (max.)

Temperature:	32-104ºF (0-40ºC)
Humidity:	10% - 85% (non-condensation)

Net:	6.2kg (with base) 5.5kg (without base)
Gross:	8.7kg
