Key Features

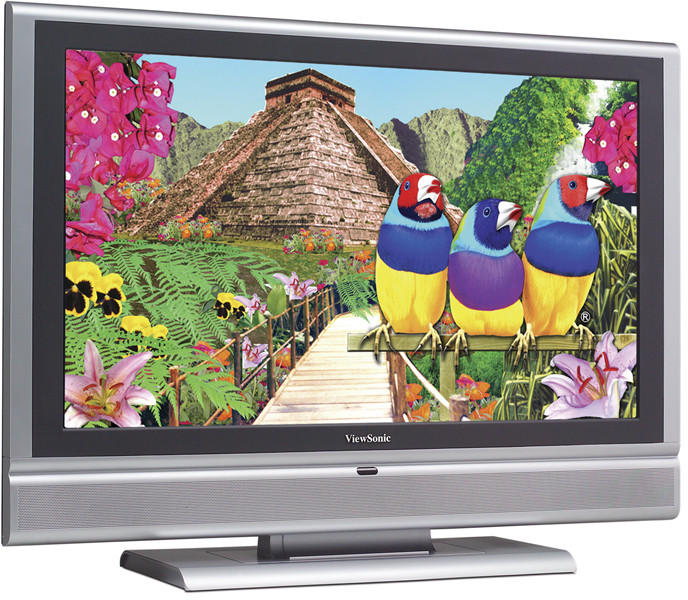

N4066w
Product Description
Visit Us
  • www.viewsonic.com
  • LCD
    Type: 40” S-PVA colour TFT active matrix, wide 1366 x 768
    Contrast Ratio: 1200:1 (typ.)
    Viewing Angles: 178° horizontal, 178° vertical (at 10:1)
    Brightness: 500cd/m² (typ.)
    Display Area: 88.5cm (horizontal) x 49.8cm (vertical), 102cm diagonal
    Response Time: 8ms (grey-to-grey)
    Aspect Ratio: 16:9 native (4:3, 16:9 zoom, 14:9 switchable)
    Panel Surface: Anti-glare 3H
  • COMPATIBILITY
    PC: Compatible from 640 x 480 up to 1360 x 768, 1280 x 1024 @ 60Hz preferred
    Mac®: Power Mac™ up to 832 x 624
  • PACKAGE CONTENTS
    LCD TV, 1.8m power cables (Europe [Schuko]/UK), 1.8m AV cable, 1.8m SCART cable, remote control, batteries, quick start guide, user guide (multi-language)
  • AUDIO
    Speaker: 2 x 10 watts SRS WOW
  • CONNECTOR
    Audio Out: 1 x L/R RCA set
    Composite Video Input: 1 x RCA (CVBS)
    Audio Input: 1 x L/R RCA set (Composite/S-video)

    1 x L/R RCA set (digital video)

    1 x 3.5mm mini stereo jack (PC)
    S-Video: 1 x 4-pin mini DIN jack
    Headphone: 1 x 3.5mm mini stereo jack
    SCART: 3 x SCART (CVBS In/Out, RGB In, S-Video In, Audio In/Out)
    Power: 3-pin plug (CEE22)
    Component Video: 1 x RCA set (YPbPr/YCbCr)
  • POWER
    Voltage: AC 100 – 240V, 50/60Hz (auto switch); internal, fanless power supply
    Consumption: 260 watt (typ.)
  • CONTROLS
    Basic: Power, source, menu, channel up/down, volume up/down
    Advanced Options: Input resolution, black level expansion, gamma selection, scan mode, scan conversion, film mode, IR control, monitor ID, tiling, date/time, schedule, DDC/CI, advanced option reset
    OSD: Video Menu (picture mode, contrast, brightness, saturation, tint, sharpness, NR), Audio Menu (volume, balance, equaliser, treble, bass, sound mode, SRS, HDMI audio In), Screen Menu (display mode, H. size, H/V position, phase, default, auto sync, colour temperature), Setup Menu (tuning, programme table, auto search, DTV) Tuning Sub Menu (programme number, fine tuning, channel name, frequency, TV system, manual search, skip), Programme Table Sub menu (channel name), Auto Search Sub Menu (country, auto search), DTV Sub Menu (system setting, channel settings, channel list, parent control, time setting, software version), Options Menu (language, sleep timer, menu background, source info, reset, PC display), power lock
  • OPERATING CONDITIONS
    Temperature: 0°C – 40°C
    Humidity: 10% – 80% (non condensation)
  • WEIGHT
    Net: 33kg (with base)
    Gross: 40kg
  • VESA MOUNT COMPLIANT
    VESA FDMI 200mm x 100mm, 200mm x 130mm, 200mm x 200mm, M6 screws
  • VIDEO INPUT
    PAL (B/G, D/K, I), SECAM (L), NTSC³ SDTV/EDTV (480i/p, 576i/p), HDTV (720p, 1080i), DVB-T
  • TELETEXT/MHEG5
    Yes (1000 pages)/-
