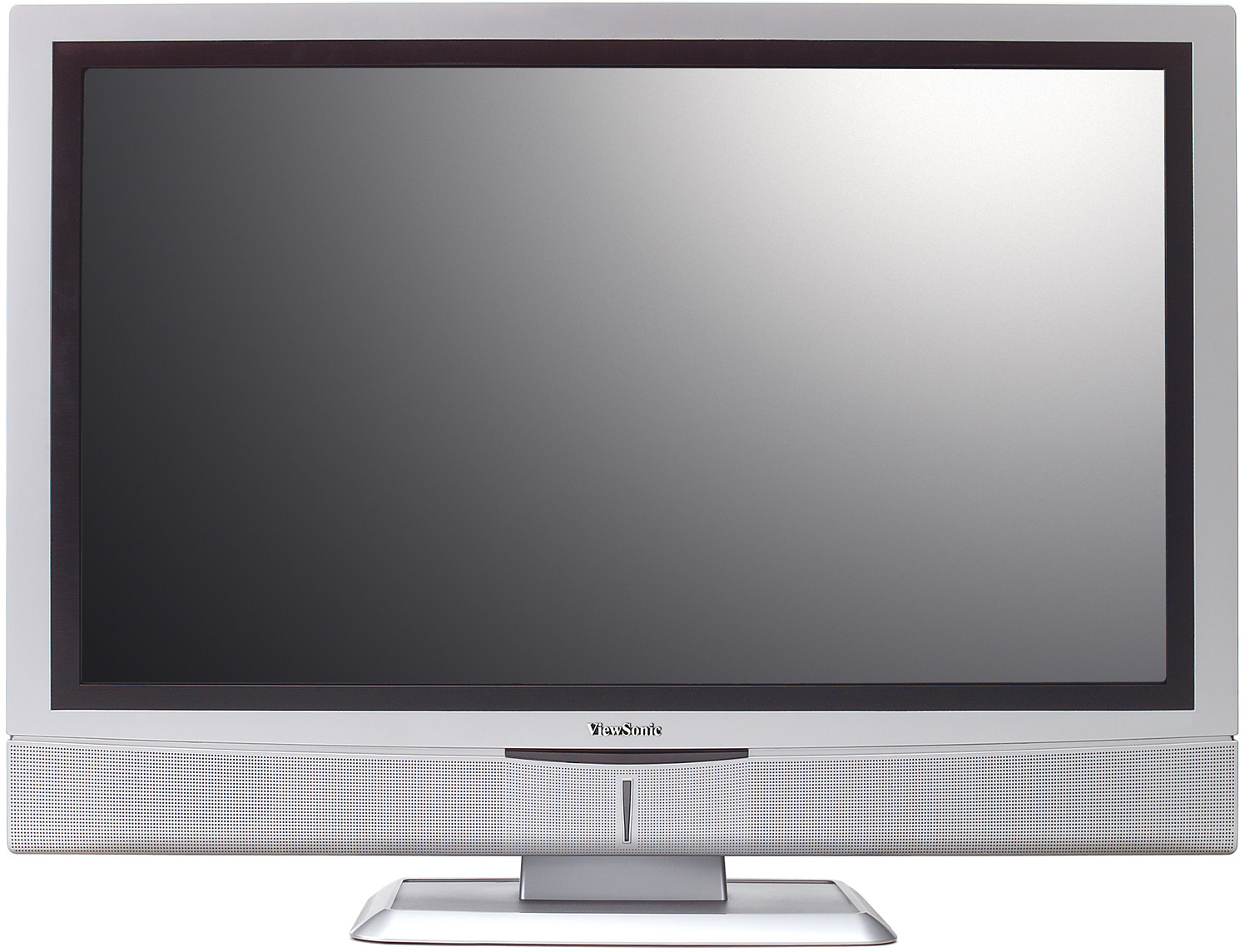

ViewSonic N3240w 32” WIDESCREEN HD-READY LCD TV WITH SRS DIGITAL SURROUND SOUND

LCD

Type:	32” VA extreme colour TFT active matrix, wide XGA 1366 x 768
Contrast Ratio:	1200:1 (typ.)
Viewing Angles:	176° horizontal, 176° vertical (at 20:1)
Brightness:	500cd/m² (typ.)
Glass Surface:	Anti-glare 3H
Display Area:	70.9cm (horizontal) x 39.9cm (vertical), 81.3cm diagonal
Response Time:	8ms (grey-to-grey)
Aspect Ratio:	16:9 native

COMPATIBILITY

PC: Compatible from 640 x 480 up to 1366 x 768, 1366 x 768 @ 60Hz preferred

Mac®: Power Mac™ up to 832 x 624
DIMENSIONS

W x H x D mm: 810 x 605 x 237 (with base)

810 x 556 x 116 (without base)

984 x 707 x 252 (packaging)
PACKAGE CONTENTS

LCD TV, 1.8m power cables (Europe [Schuko]/UK), AV cable, SCART cable, remote control, batteries, quick start guide, user guide (multi-language)
WARRANTY

Please see: www.viewsoniceurope.com/UK/Support/warranty.htm
AUDIO

Speaker: 2 x 10 watts SRS WOW (virtual surround-sound)

CONNECTOR

Digital:	1 x HDMI (HDCP)
Audio Out:	1 x L/R RCA set
Power:	3-pin plug (CEE22)
Composite Video Input:	2 x RCA
S-Video Input:	1 x 4-pin mini DIN jack
Audio Input:	1 x L/R RCA set (for composite1/component) 1 x L/R RCA set (for composite2/S-video) 1 x 3.5mm mini stereo jack (for PC)
Audio:	Audio-In 1 x L/R RCA set (for composite1/component) 1 x L/R RCA set (for composite2/S-video) 1 x 3.5mm mini stereo jack (for PC) Audio-Out 1 x L/R RCA set
SCART:	2 x SCART (SCART 1 [RGB In, CVBS In/Out, Audio In/Out], SCART 2 [S-video In, CVBS In, Audio In])
Tuner:	1 x Coax RF (PAL/SECAM)
PC-VGA:	1 x 15-pin mini D-sub
Composite Video:	1 x RCA set (YPbPr/YCbCr)

POWER

Voltage: AC 100–240V, 50/60Hz (auto switch); internal, fanless power supply

Consumption: 180 watt (max.)

CONTROLS

Basic:	Power, source, menu, channel up/down, volume up/down
OSD:	Picture Menu (present, contrast, brightness, colour, sharpness, tint, reset), Sound Menu (balance, treble, bass, SRS WOW, reset), PIP Menu (dual mode, PIP position, PIP source, audio source select), Setup Menu (OSD language, OSD timeout, OSD background, sleep timer, blue screen, teletext language), power lock, OSD lock

OPERATING CONDITIONS

Temperature: 0°C to 35°C

Humidity: 20% to 90% (non condensation)
WEIGHT

Net: 15.6kg (with base), 14.1kg (without base)

Gross: 19.1kg
VESA MOUNT COMPLIANT

VESA FDMI 200mm x 200mm, M6 screws
VIDEO INPUT

PAL, SECAM, NTSC³, SDTV/EDTV (480i/p, 576i/p), HDTV (720p, 1080i)
TELETEXT/MHEG5

Yes (1000 pages)

PC:	Compatible from 640 x 480 up to 1366 x 768, 1366 x 768 @ 60Hz preferred
Mac®:	Power Mac™ up to 832 x 624

Voltage:	AC 100–240V, 50/60Hz (auto switch); internal, fanless power supply
Consumption:	180 watt (max.)

Temperature:	0°C to 35°C
Humidity:	20% to 90% (non condensation)

Net:	15.6kg (with base), 14.1kg (without base)
Gross:	19.1kg
