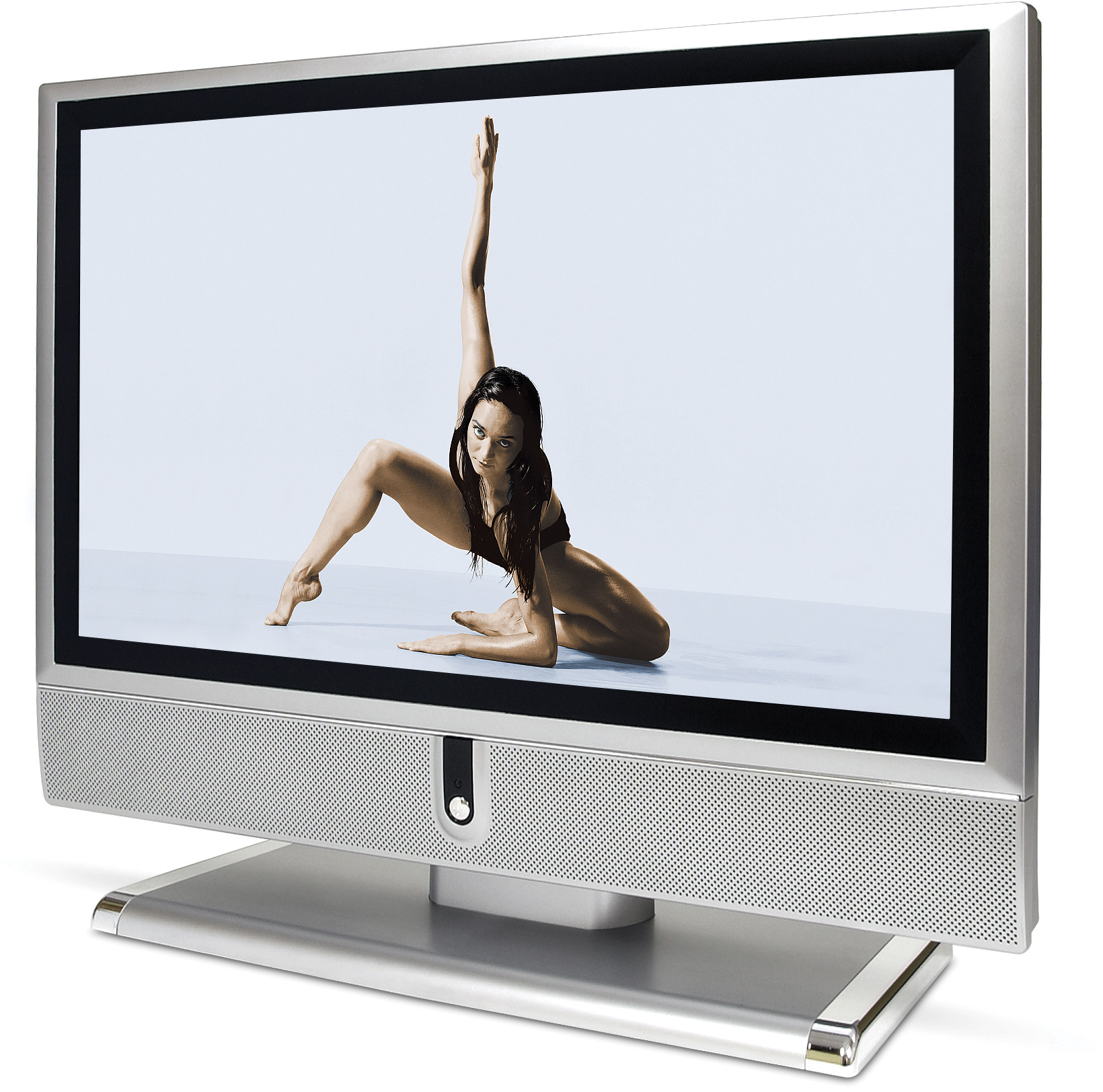

ViewSonic N3000w 32" NextVision® wide-screen, HD1 LCD TV

LCD

Type:	76.2cm / 30" (29.5" viewable) wide colour, 1280x768 LCD TV
Contrast Ratio:	500:1 (typ)
Viewing Angles:	170º horizontal, 170º vertical
Glass Surface:	Anti-reflective coat, hard coat
Display Area:	64,2cm horizontal x 38,6cm x 74,9cm diagonal
Response Time:	16ms (typ)
Aspect Ratio:	15:9
Brightness:	500 cd/m2 (typ)

COMPATIBILITY

PC: Compatible from VGA up to 1280x1024 non-interlaced,
1280x768 preferred with 3.5mm mini-stereo audio

Mac®: Power Mac™ G3/G4 up to 1280x1024, 1280x768 (preferred)
DIMENSIONS

W x H x D mm: 860mm x 524mm x 207mm
WARRANTY

Please see:
http://www.viewsoniceurope.com/UK/Support/warranty.htm
AUDIO

Speaker: 2x 10-watt

Output: Audio output, 1x R/L (line level/variable)/1x subwoofer output
POWER

Voltage: AC 90–240V (universal), 50–60Hz

Consumption: 185W (typ)

CONTROLS

Basic:	Menu, -, +, down, up, input, power
Picture:	Brightness, contrast, colour, tint, sharpness, colour temp (cool, normal user)
Set Up:	OSD H/V position, OSD timeout, language, system reset (firmware version info)
Audio:	Volume, bass, treble balance, earphone toggle, DVI audio-toggle, speaker, line out, subwoofer toggle, MTS select
TV:	Antenna input, caption mode, auto scan, add/delete channel,

OPERATING CONDITIONS

Temperature: 0–35ºC

Humidity: 20–90% (non-condensing)
WEIGHT

Net: 860mm x 524mm x 207mm
TELETEXT

Full 250 page Fastext Memory
VIDEO OUTPUT RESOLUTION

1x RGB D-sub 15-pin

INPUT

2 x Euro Scart (RGB, CVBS, SVHS, R/L audio)
1 x RCA component (YPbPr), 1 x R/L
1 x RCA component (YCbCr), 1 x R/L
1 x RGB D-sub 15pin, 1/8" stereo mini jack
1 x DVI-D (HDCP)
1 x CVBS, 1 x R/L audio
1 x RS232 service port - no user function
2 x TV / RF multi region dual tuners (PAL-I/B/G, SECAM-L)

PC:	Compatible from VGA up to 1280x1024 non-interlaced, 1280x768 preferred with 3.5mm mini-stereo audio
Mac®:	Power Mac™ G3/G4 up to 1280x1024, 1280x768 (preferred)

Speaker:	2x 10-watt
Output:	Audio output, 1x R/L (line level/variable)/1x subwoofer output

Voltage:	AC 90–240V (universal), 50–60Hz
Consumption:	185W (typ)

Temperature:	0–35ºC
Humidity:	20–90% (non-condensing)
