Key Features

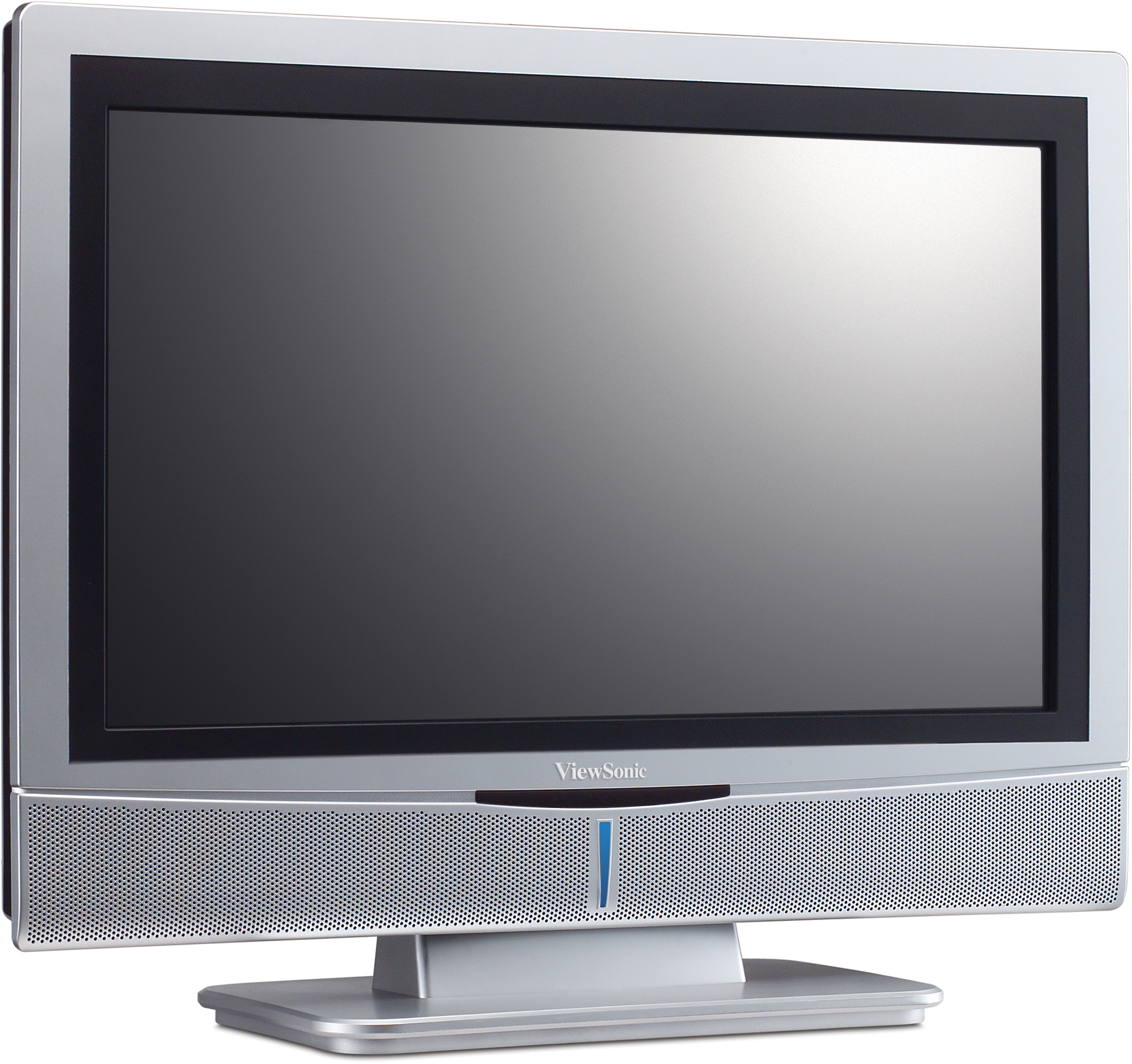

N2060w
Product Description
Visit Us
  • www.viewsonic.com
  • LCD
    Type: 51cm / 20.1" Super MVA colour TFT active matrix, wide 1366 x 768
    Contrast Ratio: 1000:1(typ.)
    Viewing Angles: 176° horizontal, 176° vertical (at 20:1)
    Brightness: 500cd/m² (typ.)
    Display Area: 44.5cm (horizontal) x 25.0cm (vertical), 50.8cm diagonal
    Response Time: 8ms (grey-to-grey)
    Aspect Ratio: 16:9
    Panel Surface: Anti-glare
  • COMPATIBILITY
    PC: Compatible from VGA up to 1360 x 768 @ 60Hz preferred
    Mac®: Power Mac™ up to 1360 x 768 @ 60Hz preferred
  • DIMENSIONS
    Physical (WxHxD): 522 x 420 x 191 (with base)
    522 x 215 x 101 (without base)
  • PACKAGE CONTENTS
    LCD TV, 1.8m power cable, 15-pin VGA video cable, PC audio cable,
    remote control, batteries, quick start guide, user guide (multi-language)
  • WARRANTY
    Please see:
    www.viewsoniceurope.com/UK/Support/warranty.htm
  • AUDIO
    Speaker: 2 x 3 watt SRS WOW (virtual surround-sound)
  • CONNECTOR
    Digital: 1 x HDMI (HDCP)
    Power: 3-pin plug (CEE22)
    Composite Video Input: 1 x RCA (CVBS)
    Component Video Input: 1 x RCA set (YPbPr/YCbCr)
    Audio Input: 1 x RCA Audio set L/R for S-video/composite
    1 x RCA Audio set L/R for component
    1 x 3.5mm mini stereo jack for PC/HDMI
    S-Video: 1 x 4-pin mini DIN jack
    Headphone: 1 x 3.5mm mini stereo jack
    SCART: 1 x SCART2 (CVBS In/Out, RGB In, Audio In/Out)
    Tuner: 1 x Coax RF (PAL/SECAM)
    PC: 1 x 15-pin mini D-sub
  • POWER
    Voltage: AC 100–240V, 50/60Hz (auto switch), internal, fanless power supply
    Consumption: <90 watt (max.)
  • CONTROLS
    Basic: Power, source, menu, channel up/down, volume up/down
    OSD: Picture Menu (contrast, brightness, colour, sharpness, tint, preset, reset),
    Audio Menu (bass, treble, balance, SRS surround), PIP/POP Menu (dual
    mode, position, video source, audio source), TV Channel Menu (auto
    search, manual search), Setup Menu (OSD language [English, French,
    Spanish, German, Italian, Finnish, Swedish, Russian], OSD timeout, OSD
    background, sleep timer, blue screen, teletext language), OSD/power lock
  • OPERATING CONDITIONS
    Temperature: 5 °C – 35 °C
    Humidity: 10%–85% (non condensation)
  • WEIGHT
    Net: 6.9kg (with base), 5.9kg (without base)
  • VESA MOUNT COMPLIANT
    VESA® FDMI 100mm x 100mm, M6 10mm screws
  • TELETEXT
    Yes (1000 pages)
  • VIDEO INPUT
    PAL, SECAM, NTSC3, SD (480i/p, 576i/p), HD (720p, 1080i)
