Key Features
  • 3rd generation laser phosphor technology with a lifespan of up to 30,000 hours
  • 4,000 ANSI Lumens and 1080p resolution for clear images in any environment
  • High native contrast ratio powered by a 0.65” DMD chip and DLP technology
  • Up to a 300" ultra-large screen with a lower cost-per-inch
  • Installation flexibility: 1.3x optical zoom, H/V keystone, and 360° projection
  • Centralized LAN control for efficient management

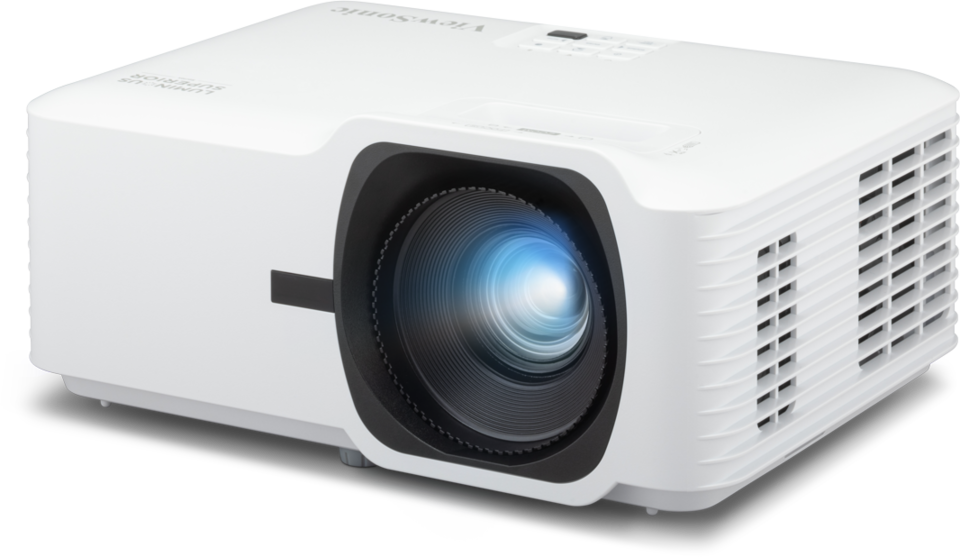

LSD401HD
Product Description
The LS401HD is part of ViewSonic’s Luminous Superior Series, a lamp-free projector lineup designed for commercial and educational environments. It delivers ultra-large projections up to 300” in sharp 1080p Full HD resolution, leveraging high native contrast from a 0.65” DMD chip with DLP technology. Powered by 3rd-generation laser phosphor technology, it offers 4,000 ANSI Lumens brightness and a remarkable lifespan of up to 30,000 hours. Its lamp-free design ensures eco-friendliness and cost-efficiency by reducing power consumption. With features like a 1.3x optical zoom, H/V keystone correction, and 360° projection, the LS401HD supports flexible installation. Centralized LAN control simplifies management, making it an excellent choice for boardrooms, lecture halls, and public spaces.

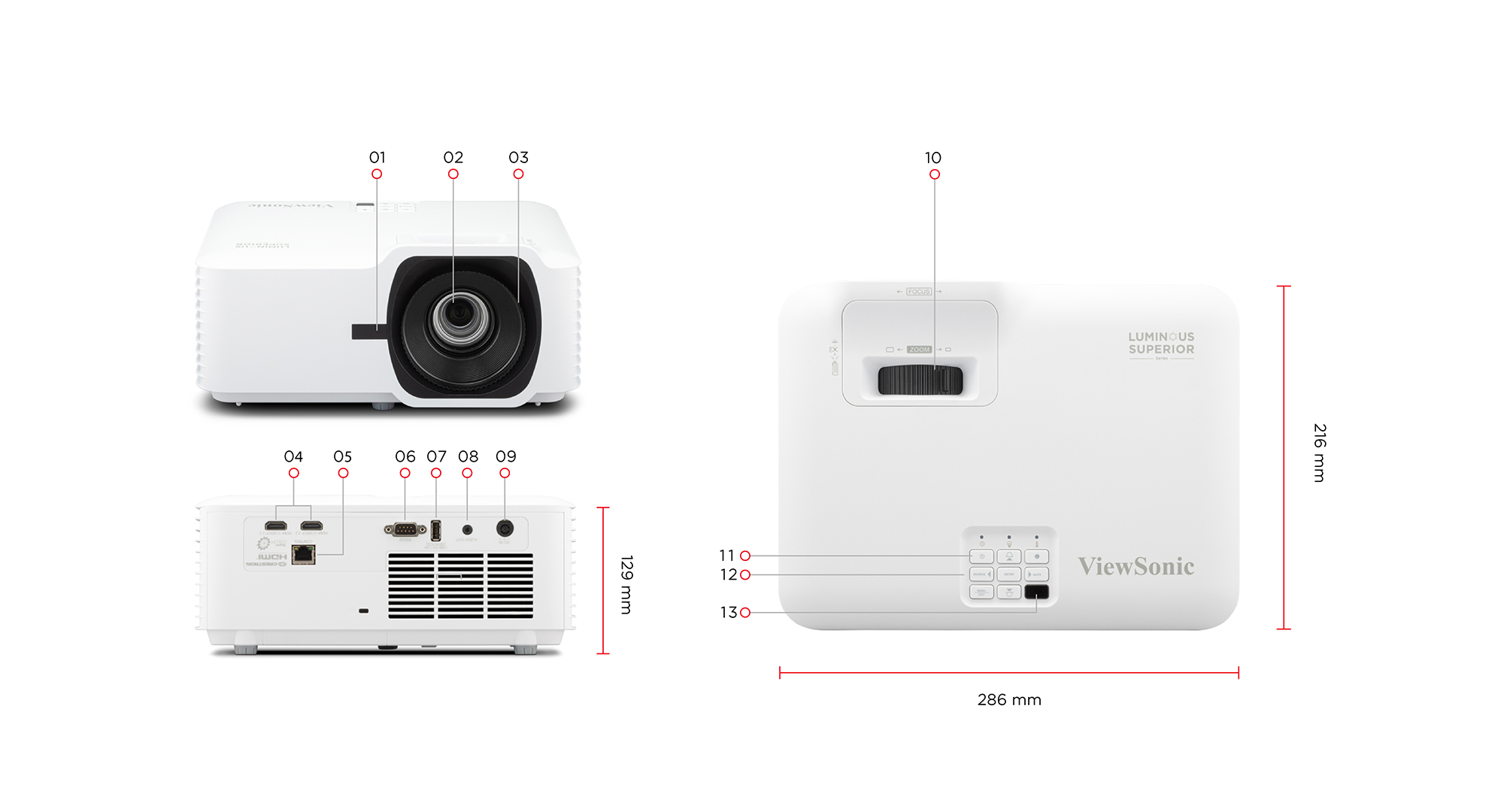

  1. Front IR
  2. Lens
  3. Focus Ring
  4. HDMI 2.0 / HDCP 2.2 x2
  5. RJ45
  6. RS232
  7. USB-A (5V/1.5A, Service)
  8. Audio Out
  9. DC In
  10. Zoom Ring
  11. Power Button
  12. Keypad
  13. Top IR
Visit Us
  • www.viewsonic.com
  • SPECIFICATION
    Projection System: 0.65" 1080P
    Native Resolution: 1920x1080
    Brightness: 4000 (ANSI Lumens)
    Brightness (Center Lumens): 4400
    Contrast Ratio: 3000000:1
    Display Color: 1.07 Billion Colors
    Light Source Type: Laser Phosphor
    Light Source Life (hours) with Normal Mode: 20000
    Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
    Lens: F=2.43-2.78, f=16.90-21.61mm
    Projection Offset: 132%+/-10%
    Throw Ratio: 1.13-1.47
    Optical Zoom: 1.3X
    Digital Zoom: 0.8x-2.0x
    Image Size: 30"-300"
    Throw Distance: 0.75-9.76m
    (100"@2.50m)
    Keystone: H:+/-30° , V:+/-30°
    Audible Noise (Normal): 32dB
    Audible Noise (Eco): 27dB
    Input Lag: 16.7ms
    Resolution Support: VGA(640 x 480) to 4K UHD(3840 x 2160)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
    Horizontal Frequency: 15K-135KHz
    Vertical Scan Rate: 24-120Hz
  • INPUT
    HDMI: 2
    (HDMI 2.0, HDCP 2.2)
  • OUTPUT
    Audio-out (3.5mm): 1
    Speaker: 15W
    USB Type A (Power): 1 (5V/ 1.5A)
  • CONTROL
    RS232 (DB 9-pin male): 1
    RJ45 (LAN control): 1
    USB Type A (Services): 1
    (share with USB A Output)
  • OTHERS
    Power Supply Voltage: Power adaptor:
    Input: 100~240V
    Output: 19.5VDC / 9.23A
    Power Consumption: Normal: 143W
    Standby: <0.5W
    Operating Temperature: 0~40℃
    Carton: Brown
    Net Weight: 3.00kg
    Gross Weight: 4.50kg
    Dimensions (WxDxH) with Adjustment Foot: 286x216x129mm
    Packing Dimensions: 400x280x155mm
    OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, Arabic, Vietnamese, Hungarian, Norsk, total 23 languages
    User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages
  • STANDARD ACCESSORY
    Power Cord: 1
    Remote Control: 1
    QSG: Yes
    Warranty Card: Yes (CN Only)
  • OPTIONAL ACCESSORY
    Wall/Ceiling Mount: PJ-WMK-007
    Carry Bag: PJ-CASE-008
