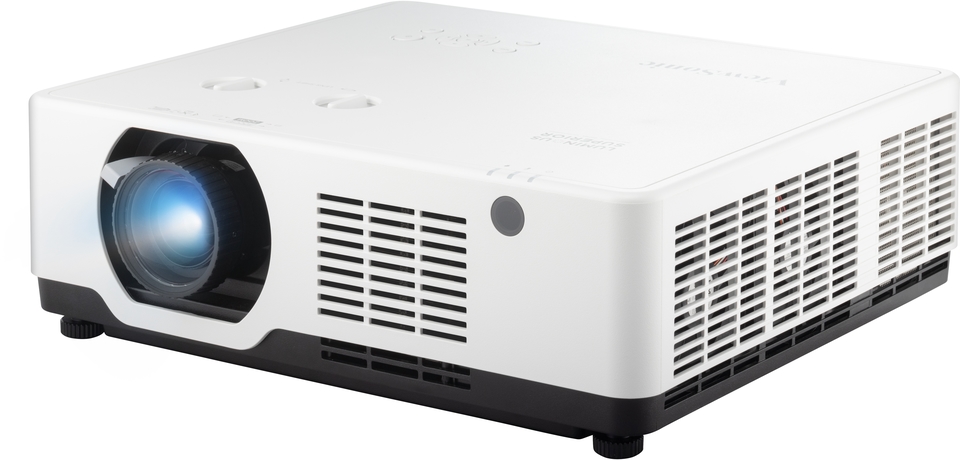

Projector
LSC601-4K
Key Features
- 4K HDR professional-quality visuals
- 6,000 ANSI Lumens offering bright images in any environment
- Up to a 300" ultra-large screen with a lower cost-per-inch
- Supports a 21:9 aspect ratio, ideal for Microsoft Teams Rooms
- Installation flexibility: H/V lens shift, 1.6x optical zoom, and H/V keystone correction
- 2nd generation laser phosphor technology with a lifespan up to 30,000 hours
- Centralized LAN control for efficient management
Product Description
The LSC601-4K is a lamp-free, high-brightness projector designed for commercial, educational, and public spaces. Equipped with 4K resolution and HDR/HLG support, it delivers professional-quality presentations and stunning visuals. Utilizing 2nd generation laser phosphor technology, this projector offers 6,000 ANSI Lumens of brightness for up to 30,000 hours and can project an ultra-large screen up to 300”. Ideal for modern workplaces, its 21:9 aspect ratio is optimized for Microsoft Teams Rooms applications, enhancing collaborative environments. Equipped with features like H/V lens shift, 1.6x optical zoom, H/V keystone correction, and 360° projection capabilities, the LSC601-4K offers flexible setup possibilities. Additionally, its comprehensive LAN control ensures seamless integration into existing device management networks.
- Zoom Ring
- Focus Ring
- Front IR
- S/PDIF
- USB-A (5V/2A)
- HDMI 2.0/HDCP 2.2
- USB-A (5V/2A)
- RS232
- Audio Out
- Rear IR
- RJ45
- HDBaseT
- AC In
- LED Indicator
- Keypad
- Lens Shift Control Knob x2
- Power Button
Visit Us
- www.viewsonic.com
-
SPECIFICATION
Projection System: 3LCD (3x0.64" with MLA) Native Resolution: WUXGA with 4K Enhancement Brightness: 6000 (ANSI Lumens) Brightness (Center Lumens): 6500 Contrast Ratio: 3000000:1 Display Color: 1.07 Billion Colors Light Source Type: Laser Phosphor Light Source Life (hours) with Normal Mode: 20000 Light Source Life (hours) with SuperEco Mode: 30000 (Eco) Lens: F=1.5-2.08, f=17.2-27.7mm Projection Offset: 0%+/-5% Throw Ratio: 1.2-2.0 Optical Zoom: 1.6X Digital Zoom: 1.0x-2.0x Image Size: 30"-300" Throw Distance: 0.80-13.35m
(100"@2.66m)Keystone: H:+/-25° , V:+/-30° Lens Shift V. Range: +66%, 0% Lens Shift H. Range: +29%, -29% Audible Noise (Normal): 37dB Audible Noise (Eco): 26dB Input Lag: 32ms Resolution Support: VGA(640 x 480) to 4K(3840 x 2160) HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p Horizontal Frequency: 15K-135KHz Vertical Scan Rate: 24-85Hz -
INPUT
HDMI: 2
(HDMI 2.0, HDCP 1.4/2.2)Audio-in (3.5mm): 1 USB Type A: 2 (5V/2A) HDBaseT: 1 RJ45 Input (Internet): Yes -
OUTPUT
Audio-out (3.5mm): 1 Audio-out (HDMI ARC): 1
(Share with HDMI Input)S/PDIF: 1 Speaker: 16W USB Type A (Power): 2
(USB2.0 - 5V/2A,
share with USB A Input) -
CONTROL
RS232 (DB 9-pin male): 1 RJ45 (LAN control): 1
(share with RJ45 Internet)USB Type A (Services): 1
(share with USB A Output) -
OTHERS
Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
(AC in)Power Consumption: Normal: 325W
Standby: <0.5WOperating Temperature: 0~40℃ Carton: Brown Net Weight: 7.9kg Gross Weight: 10.10kg Dimensions (WxDxH) with Adjustment Foot: 405x358x137mm Packing Dimensions: 510x498x260mm OSD Language: English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Vietnamese, Thai, total 23 languages User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages -
STANDARD ACCESSORY
Power Cord: 1 Remote Control: 1 QSG: Yes Air Filter: Yes Warranty Card: Yes (CN Only) -
OPTIONAL ACCESSORY
Air Filter: Yes Wall/Ceiling Mount: PJ-WMK-007
