Key Features
  • Innovative Harman Kardon audio with a redesigned multimedia sound bar ​​
  • USB-C for plug-and-play connectivity via a single cable​​
  • Responsive 8-Mic Array​​
  • Wireless presentation and intuitive screen casting​​
  • Centralized remote management system via myViewBoard Manager​

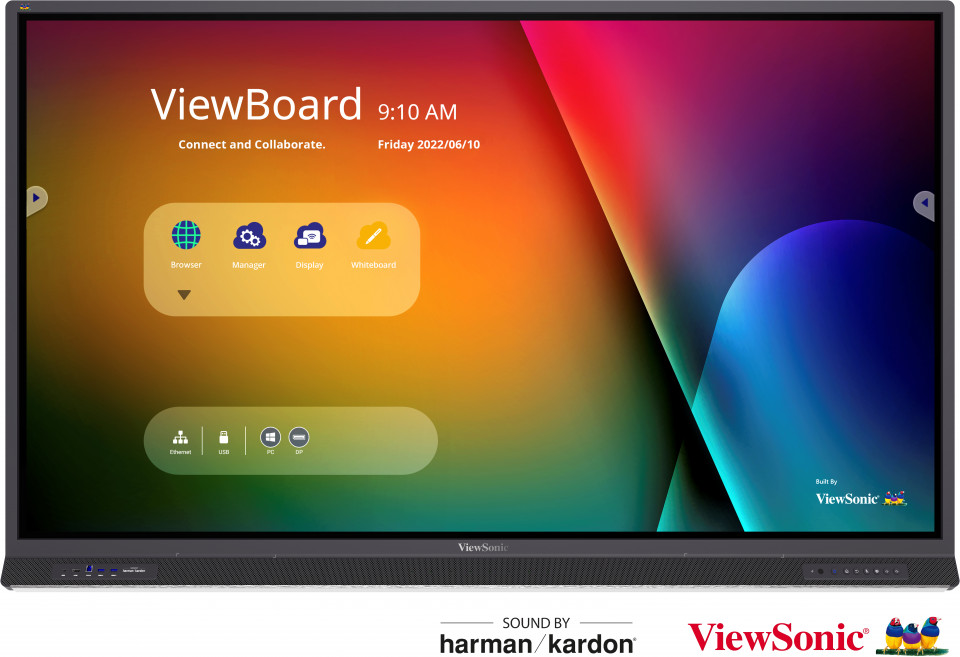

ViewBoard IFP7552-1BH
Product Description
The ViewBoard 52-1BH Series is a 4K UHD interactive display with user-centric design features and collaboration tools for today’s workspace. Equipped with two 20W front-facing Harman Kardon speakers and a 40W subwoofer, it delivers pristine sound quality for impressive and immersive presentations. The ViewBoard 52-1BH has been designed for online meetings and boasts a complete and responsive 8-mic array for crystal clear communication. Team members can seamlessly connect and control the meeting's flow with a single-cable solution for instant connectivity and an adapted design for easy access to shortkeys and I/O ports. The naturally smooth writing experience provided by the dual-pen capability, 33-point touch, Ultra Fine Touch, and Palm Awareness technology opens endless opportunities for group collaboration and discussions. Complete with a browser-based remote management system, the ViewBoard 52-1BH Series delivers a market-leading interactive whiteboard solution for presentations, meetings, and IT management.​
  1. USB-C
  2. HDMI In
  3. TOUCH
  4. USB 3.0 x2
  5. 8-Microphone Array
  6. Front-Facing Speakers
  7. Menu Controls
  8. OPS Slot
  9. Wi-Fi Module Slot
  10. USB 3.0 X 2
  11. USB 2.0
  12. TOUCH
  13. DP In
  14. HDMI In X 2
  15. VESA® Wall Mount 600x400mm
  16. Subwoofer
  17. HDMI OUT
  18. LAN
  19. SPDIF
  20. VGA
  21. Audio In
  22. Earphone
  23. RS232
Visit Us
  • www.viewsonic.com
  • DISPLAY
    Panel Size: 75"
    Panel Type: TFT LCD Module with DLED Backlight
    Display Area (mm): 1649.644(H) x 927.936(V)
    Aspect Ratio: 16:9
    Resolution: UHD 3840x2160(Pixels)
    Colors: 1.07B colors (10bit)
    Brightness: 450 nits (typ.)
    Contrast Ratio: 1200:1 Typ. , 5000:1 Max.(DCR enable)
    Response Time: 8ms
    Viewing Angles: H = 178, V = 178 typ.
    Backlight Life: 50,000 Hours (Typ.)
    Surface Treatment: Hardness: 9H with Anti-Fingerprint coating & Anti-Glare coating
    Disclaimer: 50,000 hours backlight life at 8 hours of use per day
  • PLATFORM
    Processor: ARM Cortex A73*4
    RAM: 8GB
    Storage: 64GB
  • TOUCH
    Type/ Tech: UFT (Ultra Fine Touch) Technology
    Touch Resolution: 32767 x 32767
    Touch Point: Windows: 33 points touch, Android: 20 points touch
  • INPUT
    HDMI: x2 (3840x2160@60Hz, HDCP2.2, CEC, Front x1, Side x1), x1 (3840x2160@60Hz, HDCP2.2, CEC, ARC, Side x 1)
    RGB / VGA: x1 (1920x1080 @60Hz)
    DisplayPort: x1 (3840x2160 @60Hz)
    Audio: x1 (PC audio in)
    RS232: x1
    OPS: module slot x 1
    WiFi: module slot x 1
  • OUTPUT
    HDMI: x1 (on demand)
    Audio: x1 (Earphone out)
    SPDIF: x1 (optical)
  • LAN
    RJ45: x1
  • USB
    Type A: USB 2.0 x1(Side x1), USB 3.0 x4 (Front x2, Side x2, SmartPort™ USB)
    Type B: x2, for touch
    Type C: x1 (USB3.0, DP1.2 Alt Mode, 100M Ethernet, 60W PD)
  • SPEAKERS
    20W x 2 + 40W x 1 subwoofer
  • MICROPHONE
    built-in 8-array microphone
  • TOP CAMERA PLATE
    Yes
  • EMBEDDED OS
    Android 9 (Android 11 upgradable)
  • BUNDLE SOFTWARE
    Basic Annotation Software: myViewBoard WhiteBoard for Android
    Pro Annotation Software: myViewBoard WhiteBoard for Windows (embedded in VPC)
    Wireless Presentation: ViewBoard Cast & myViewBoard Display
  • SPECIAL FEATURES
    All-in-one USB port: USB 3.0 x 4
    Simple LAN sharing between IFP and slot-in device: 10/100/1000M for Android and PC
    Light Sensor: Yes
  • POWER
    Voltage: 100-240VAC +/- 10% Wide Range
    Consumption: On: 149.97W(typ.) / Off: <0.5W
  • ERGONOMICS
    Wall Mount (VESA® ): 800 x 400
  • OPERATING CONDITIONS
    Temperature (º C): 0°C to 40°C
    Humidity: 20% ~ 80% RH Non-Condensing
  • DIMENSIONS (W X H X D)
    Physical (inch / mm): 1720.1 (W) x 1069.6 (H) x 118.4 (D) mm, 67.72 (W) x 42.11 (H) x 4.66 (D) inch
    Packaging (inch / mm): 1880 (W) x 1160 (H) x 280 (D) mm, 74.02 (W) x 45.67 (H) x 11.02 (D) inch
  • WEIGHT
    Net (lb / kg): 125.22 lb / 56.8 kg
    Gross (lb / kg): 158.95 lb / 72.1 kg
  • REGULATIONS
    EMC/CE, CB, RoHS & DOC, REACH, WEEE, ErP. EEI
  • PACKAGE CONTENTS
    1. Power cable(3 meters)  2. Remote control 3. USB Type-C cable (1.5 meters) 4. USB Touch cable (3 meters, USB2.0) 5. Touch pen x 2 6. Quick Start Guide + Compliance statement 7. RS232 adapter 8. Clamp x 5 9. Camera Plate 10. Screw x 8 (camera 2+2, wall mount 4) 11. HDMI cable (3 meters) 12. Eraser 13. 13. AAA Battery x 2
  • COMPATIBLE SLOT-IN PC
    VPC12-WPO/VPC2C-O/VPC25-O/VPC27-O series
