Digital Signage

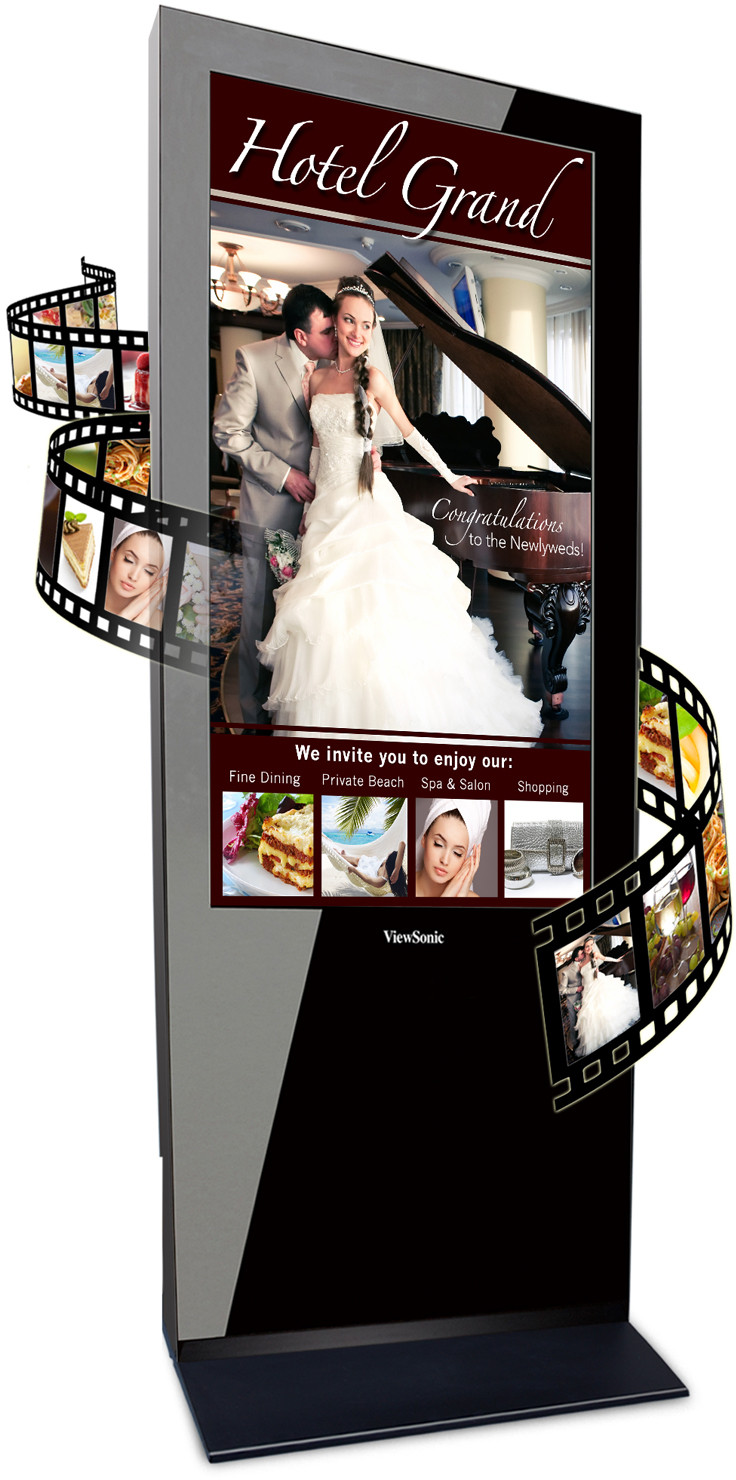

EP5502
Key Features
Product Description
ViewSonic’s new ePoster products make it easy to replace those old backlit printed signs with new impactful video messaging on high definition digital posters. These sleek new displays feature versatile input connections for easy content uploading or adding your favorite media player. Information is disseminated through the ePoster’s video connectors via or media player or USB thumb drive. ViewSonic’s new ePoster products are available in various sizes and slim profiles fit in beautifully with their limited footprint. Great for announcing special promotions, computergenerated information or communicating multimedia with photos, audio, signage, and video.
Visit Us
- www.viewsonic.com
-
COLORS
Black -
COMPATIBILITY
Photo Formats: JPEG Video Formats: MPEG 1/2/3, H.264, Xvid 1.00–AVI, MP4 Audio Formats: WMA, MP3, M4A (AA CC ) -
DIMENSIONS
Physical With Stand: 32.68" x 78.7" x 17.72" (830mm x 2000mm x 450mm) -
PACKAGE CONTENTS
ePoster, power cord, remote control with batteries, key, Quick Start
Guide, User Manual and Software on CD -
AUDIO
Speaker: 5W (x2) -
CONNECTOR
Network: Ethernet RJ-45 (10/100M) USB: 2.0 (x1) Card Reader: 2GB Compact Flash -
POWER
Consumption: Max 450W Save Mode (W): Off < 1W -
DISPLAY
Contrast Ratio: 5000:1 (typ) Brightness: 450 cd/m2 (typ) Type: Diagonal: 55" (139.7 cm) Resolution: 1920x1080 dots Color Depth: Over 16.7M color (depending on video card used) Response Time: 6.0ms (typ gray-to-gray) Viewing Angles: Up and down 178º, left and right 178º (typ) @ CR>10 -
WEIGHT
Gross: 297.6 lbs. (135 kg) Net: 264.5 lbs. (120 kg) -
OPERATING CONDITIONS
Humidity: 20–90% (non-condensing) Temperature: 32–104º F (0–50º C) -
CONNECTORS
HDMI, VGA, YPbPr, USB, A/V, RJ45 Pigtail -
STORAGE ENVIRONMENT
Humidity: 10–90% (non-condensing) Temperature: -4–140º F (-20–40º C) -
CONTENT MANAGEMENT
Operating System: MS Windows Software: Signage Manager Express -
MTBF
50,000 hrs.
