Key Features

EP1031r
Product Description

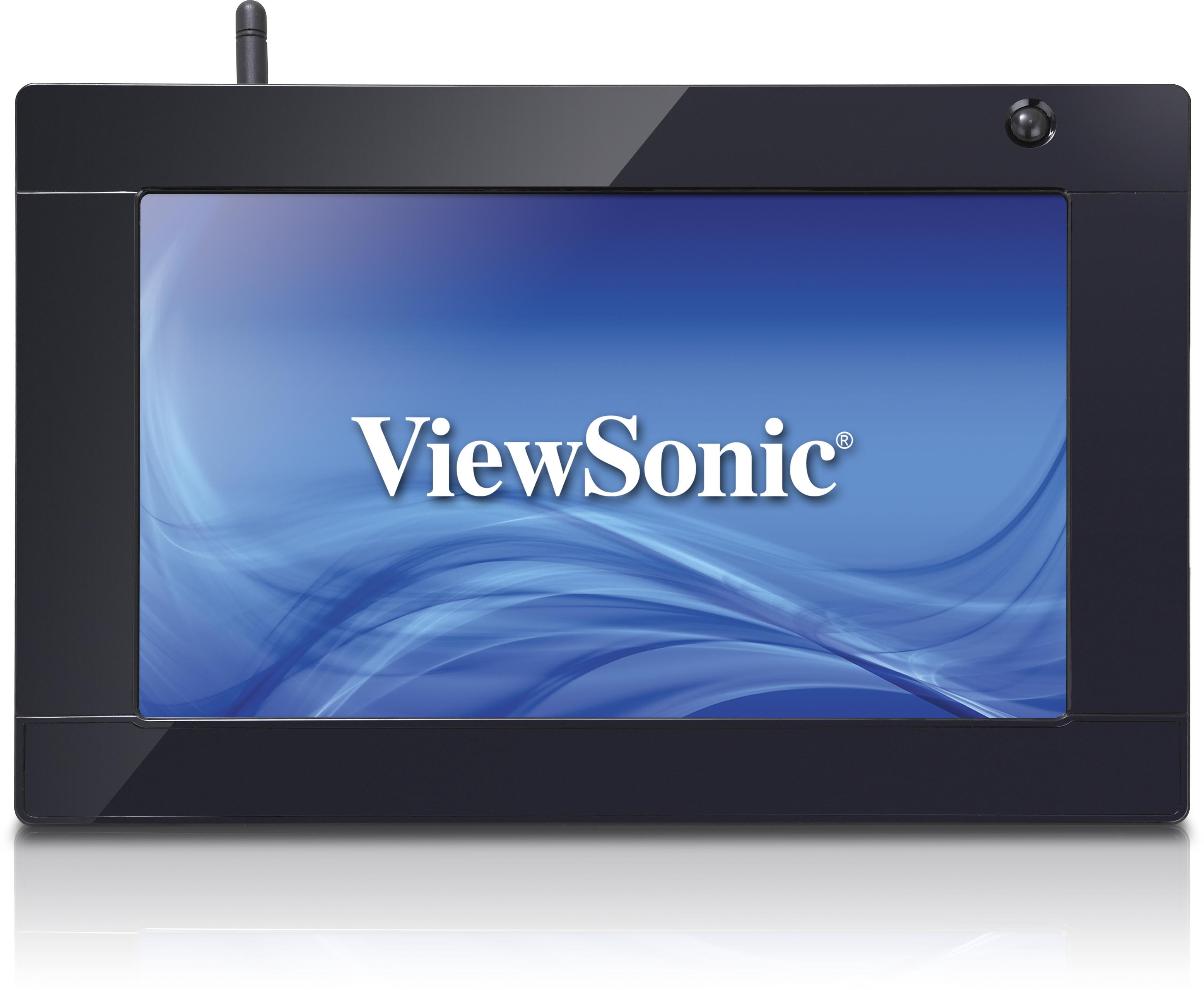

The ViewSonic EP1031r is a 10’’ wall-mounted multimedia all-in-one digital ePoster. It delivers eye-catching commercial messaging at retail POS, hotel lobbies and front desks, conference and exhibition venues, and other high-visibility locations. The EP1031r features wireless b/g/n network and LAN connectivity for easy loading of content, and supports Power over Ethernet (PoE) for convenient one-wire installation. Boasting an exclusive integrated motion sensor, 6 touch-screen control keys, and bundled Signage Manager Express software, the EP1031r effectively delivers customized messaging to target audiences. Its built-in media player, 4GB internal storage, and integrated speakers enable the playback of video clips, as well as photos and music, from a USB hard drive or SD/SDHC memory card. With VESA-mount compliance (75mm x 75mm), and W3C and SMIL compatibility, the EP1031r provides versatile options to display creative brand messaging.
Visit Us
  • www.viewsonic.com
  • COLORS
    Black
  • LCD
    Type: TFT LCD Module with LED Backlight
    Contrast Ratio: 500:1
    Viewing Angles: Top 45°/ Bottom 65°/ Left 65° / Right 65°
    Display Area: 219.6(W) x 131.76(H)
    Optimum Resolution: 800 x 480
    Response Time: 30ms
    Colour Support: 16.7M colors
    Size: 10.1’’ viewable
    Brightness: 300 cd/m2
    Backlight: LED
  • COMPATIBILITY
    HDMI: 720p@50/60, 1080i@50/60, 1080p@50/60
  • DIMENSIONS
    Physical (WxHxD): 10.94 x 7.32 x 1.57 (inches)/ 278 x 186 x 40 (mm)
    Packaging: 12.60 x 10.04 x 3.50 (inches)/ 320 x 255 x 89 (mm)
  • PACKAGE CONTENTS
    1. AC Adapter

    2. Ethernet Cable

    3. Standard 3.5mm to RCA AC cable

    4. Display stand and screws

    5. Hardware Quick Start Guide

    6. Software Quick Start Guide

    7. Documentation CD

    *Actual content may differ from market to market
  • WARRANTY
    1-year limited

    **Warranty offered may differ from market to market
  • CONNECTOR
    HDMI (input): x1
    Audio: x1
    LAN: x1
    SD: x1 (for expand storage)
    Speaker: 2-watt x2
  • POWER
    Voltage: 100-240VAC +/- 10% Wide Range
  • CONTROLS
    Physical: Touch button
  • OPERATING CONDITIONS
    Temperature: -4°F to 140°F (-20°C to 60°C)
    Humidity: 5% ~ 85% @ 40°C, non-condensing
    Altitude: <2000M
  • VESA® MOUNT
    75 x 75mm
  • WEIGHT
    Gross: 3.42 (lbs)/ 1.55 (kg)
    Net: 1.72 (lbs)/ 0.78 (kg)
  • INPUT
    USB Type A: x 2 (for content loading, F/W upgrade, Key board, Mouse)
    USB Type B (mouse control): x 1 (for F/W troubleshooting)
  • STORAGE / SHIPPING CONDITION
    Temperature: -4°F to 140°F (-20°C to 60°C)
    Humidity: 5% ~ 85% non-condensing
    Altitude: <2000M
  • POWER SAVING FUNCTION
    On: Max. : 12W
    Off (Suspend): <0.5 W
