Key Features

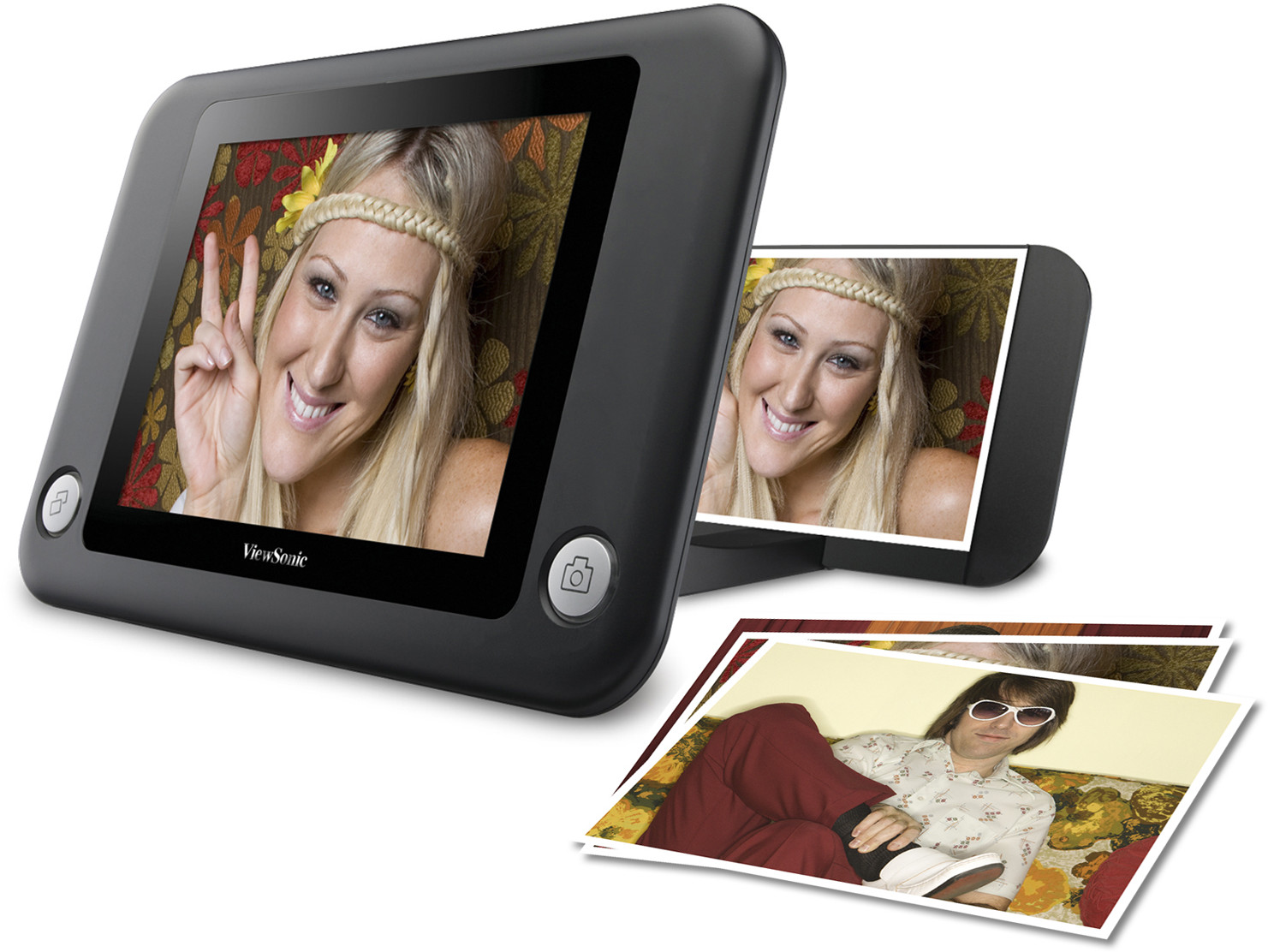

DPF8-CAM
Product Description
Visit Us
  • www.viewsonic.com
  • AUDIO
    Speakers: 0.5W x1 Mono
  • POWER
    Voltage: I Input: 100~240V AC, 50/60Hz; Output: DC 5V/1A
    Operating: Normal 3.65W Max 4.3W
    Standby: No standby mode
  • CONTROLS
    Basic: Power switch remote control
  • OPERATING CONDITIONS
    Temperature: 0~40°C
    Humidity: 80% RH
    Storage Temperature: -10~50°C
    Storage Humidity: 80% RH
  • MEMORY
    Internal: 128MB
    USB HD: FAT16/32
    Memory slot: SD, MMC, MS Pro, Max capcity 32GB
  • DISPLAY
    Contrast Ratio: 500:1(typ)/LED
    Brightness: 250 cd/m2 (typ)
    Type: TFT LCD, CMI Q08009-701
    Resolution: 800 x 600 RGB
    Viewing Angle: Vertical(T/B) 50/70(typ), Horizontal(L/R) 70/70 (typ)
  • BATTERY
    Not support
  • LANGUAGE
    15 Languages: (Default is English)
    English/ German / French / Italian /
    Spanish / Netherland/ Portugues/
    Simplified Chinese/ Traditional Chinese/ Korean/
    Japaness/ Tailand/ Russian / Turkey/ Sweden
  • CORE
    CPU: C10P
  • CONTENT FORMAT SUPPORTED
    Picture: jpeg
  • MAXIMUM COMPATIBLE FILE SIZE
    JPEG: 4608x3456 pixels, baseline
    Video Capacity: Slideshow mode: 2000 pcs
  • INTERFACE
    Input: Card slot (SD/MMC/MS) x1
    USB device x1
    Others: USB device x1
  • IMAGE CAPTURE
    Image Sensor: 5 Mega-pixels; 1/2.5” CMOS (2592x1944)
    Lens: Fix lens
    Focus Range: 19~23cm
    Aperture Range: F3.0
    White Balance: Auto
    Exposure Control: Auto
    Resolution: Best mode (5M) / Fine mode (3M)
