Key Features

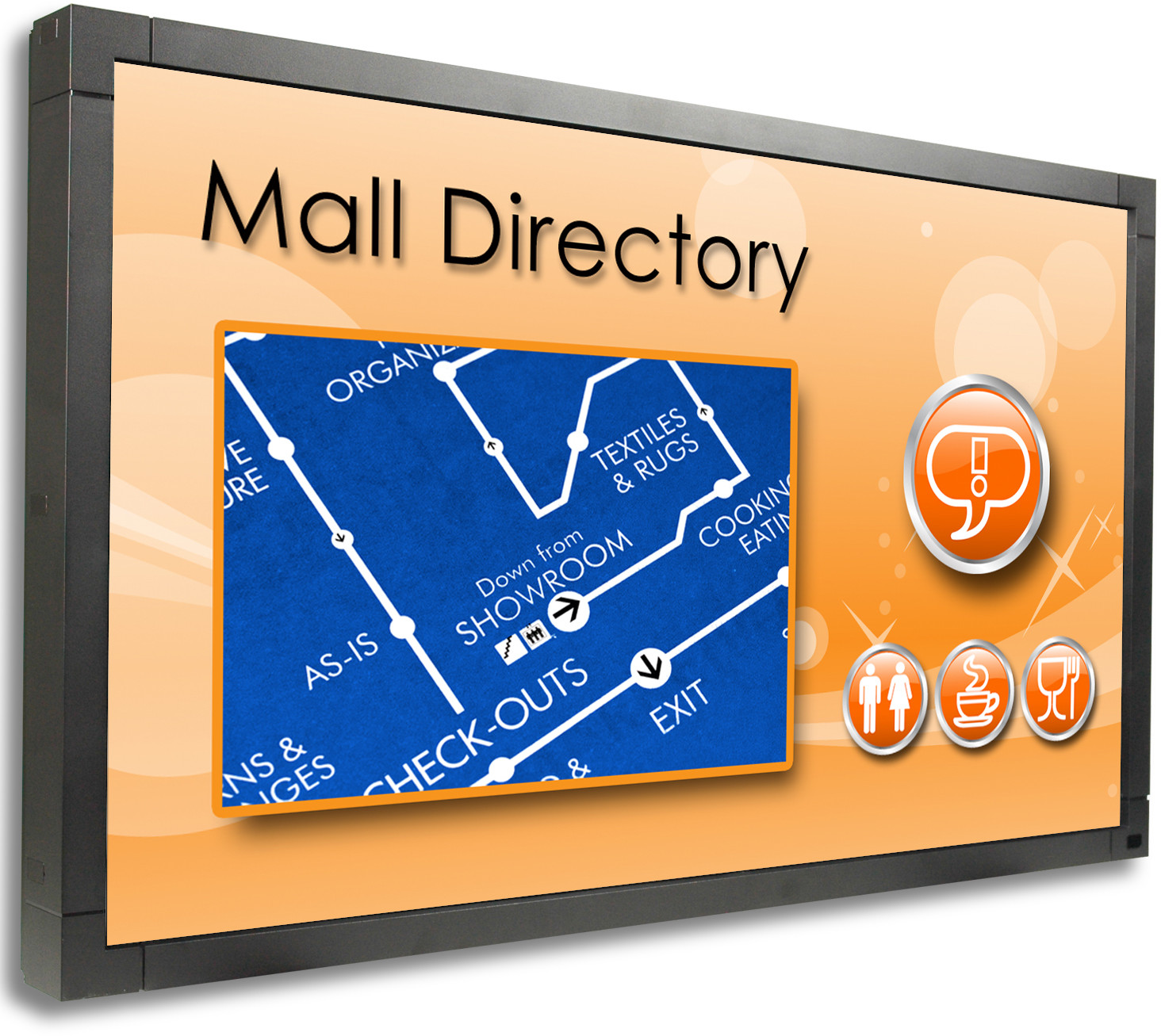

CDP4635
Product Description
ViewSonic’s new CDP4635 Full HD Commercial display features a FHD 1920 x 1080panel with 4000:1 contrast and Intel’s Open Pluggable Specification (OPS) for applications requiring an integrated media player. Additional features include versatile inputs – HDMI, DVI, VGA, S video and composite, YPbPr and built in 10W x 2 speakers. The CDP4635 will support up to a 5 x 5 display video wall with internal clock and scheduler. RS232 daisy chain and RJ45 are provided for automated remote control.
Visit Us
  • www.viewsonic.com
  • COLORS
    Black
  • LCD
    Type: 46" colour TFT active matrix, wide LCD
    Contrast Ratio: 4000:1 (typ)
    Viewing Angles: 178º horizontal, 178º vertical
    Brightness: 400 cd/m2 (typ)
    Display Area: 40" horizontal x 22.5" vertical; 46" diagonal
    Optimum Resolution: 1920x1080, 530mm dot pitch
    Response Time: 8ms
    Light Source: 50,000 hrs. (typ)
    Aspect Ratio: 16:9
    Panel Surface: Anti-glare, hard coating (3H)
  • DIMENSIONS
    Physical With Stand: 43" x 26.8" x 13"
    (1091.1mm x 681.7mm x 328.3mm)
    Physical Without Stand: 43" x 25.4" x4.7"
    (1091.1mm x 645.7mm x 120.1mm)
  • PACKAGE CONTENTS
    LCD display, power cable, remote control with batteries, User Guide CD
  • INPUT
    Video Input: HDMI, DVI, component, VGA, S-Video, composite
    Video Output: VGA, component, DVI
    Control Input/Output: RS-232/RJ45
  • INPUT SIGNAL
    TV/Video comp.: 480i, 480p, 720p, 1080i, 1080p
  • CONNECTOR
    Digital: HDMI, DVI
    Power: 3-pin plug
    Analog: 9-pin mini D-sub (VGA)
  • POWER
    Voltage: AC 100–240V (universal), 50–60Hz
    Consumption: 220W (typ)
  • CONTROLS
    Picture: Picture mode, contrast, brightness, colour temperature,
    temperature adjust, sharpness
    Front Panel: Power, Exit, +, –, Menu/Enter
    OSD: Languages, OSD H. position, OSD V. position, OSD timer
    Special: Aspect ratio, over scan, power save, image retention,
    auto adjustment, monitor ID, reset
    Audio: Volume, mute, audio source
    Diagnostic: Thermal, back light, ambient, 5V detect, 12 detect
    Input: VGA, DVI, HDMI, YPbPr
    VGA Setting: Auto adjustment, clock, phase, sharpness,
    H. position, V. position
  • WEIGHT
    Net With Stand: 58.1 lb. (26.5 kg)
    Net Without Stand: 57.3 lb. (22.6 kg)
    Gross With Stand: 68.3 lb. (31 kg)
  • OPERATING CONDITIONS
    Humidity: 20–80% (non-condensing)
    Temperature (landscape): 41–104ºF (5–40ºC)
    Temperature (portrait): 41–95ºF (5–35ºC)
  • RECYCLE/DISPOSAL
    The lamp in this product contains mercury. Please dispose of in
    accordance with local, state or federal laws.
  • AUDIO OUT
    Speakers: 2 x 10w
