Key Features
  • Embedded Android SOC supports Android apps
  • Computing expansion PC slot for Intel OPS
  • USB multimedia player
  • vController software
  • Supports HDMI CEC pass-through

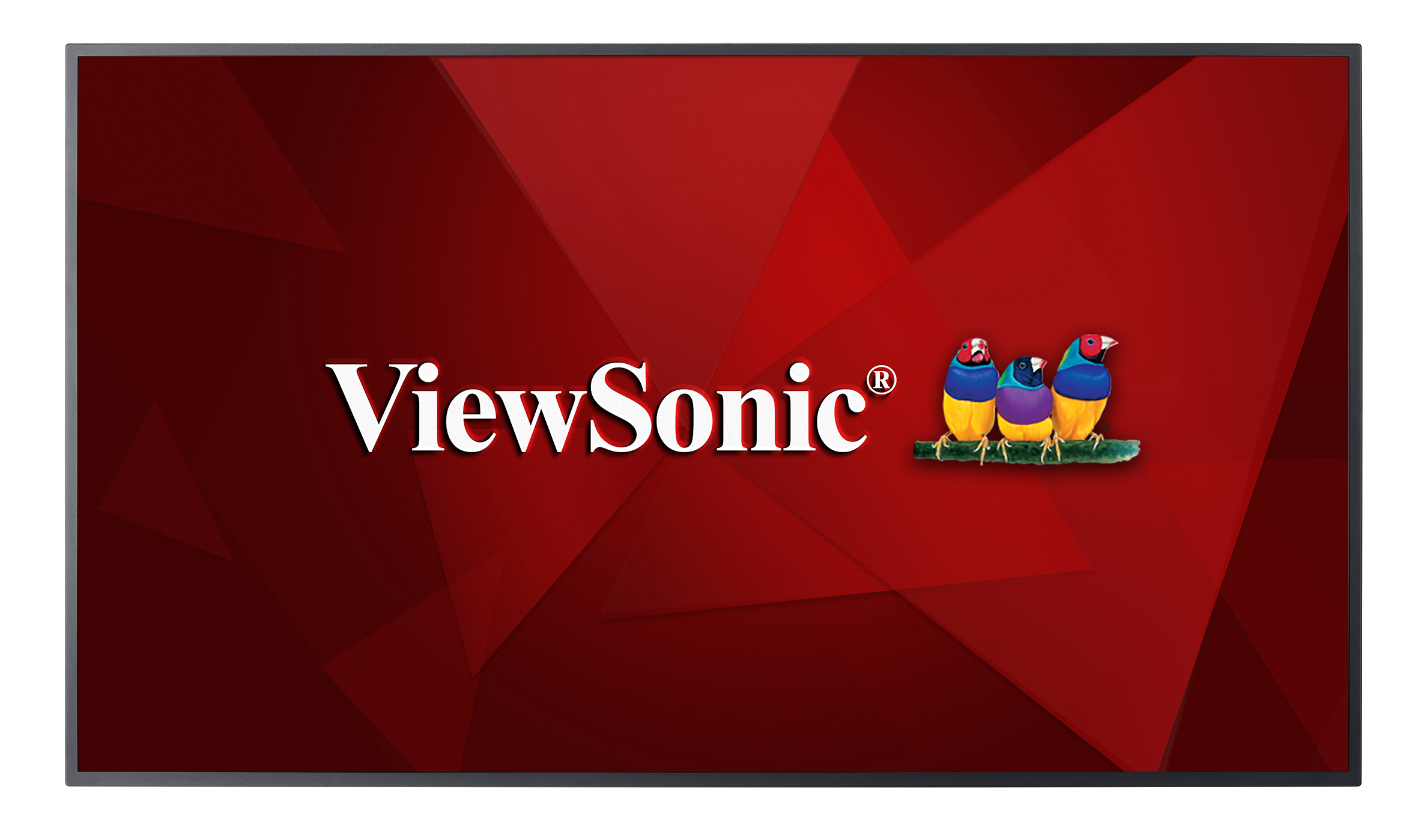

CDE6510
Product Description
The ViewSonic CDE6510 is a great value 65’’ 4K LED presenation display with high-reliability 16 hours per day/7 days a week operating time. A built-in browser offers a convenient method for displaying internet content without a PC. In addition to versatile connectivity options, including 4K DisplayPort, HDMI, VGA, USB, IR, RJ45, the display comes with a convenient USB multimedia playback function. With 3840 x 2160 resolution, 350-nit brightness with 178-degree wide viewing angles, and 2 x 10W stereo speakers, the slim-bezel CDE6510 delivers vivid images and remarkable sound for superior multimedia performance. The HDMI CEC pass-through support provides one control for multiple HDMI-connected devices while the free-bundled vController software makes remote display management easier via RSS232/RJ45 port. The display also comes equipped with Blue Light Filter technology to create a more comfortable viewing experience.
Visit Us
  • www.viewsonic.com
  • LCD PANEL
    Panel Size: 65"
    Type/ Tech: TFT LCD Module with DLED Backlight
    Display Area (mm): 1428.48 (H) x 803.52 (V)
    Aspect Ratio: 16:09
    Resolution: 3840x2160 @60Hz
    Colors: 1.07B colors
    Brightness: 350 nits (typ.)
    Contrast Ratio: 4000:1 (typ.)
    Response Time: 8 ms
    Viewing Angles: H = 178, V = 178 (typ.)
    Backlight: DLED
    Backlight Life: 30,000 Hours Min.
    Hardness: 3H
  • INPUT
    HDMI: x 4
    RGB / VGA: x 1
    DisplayPort: x 1
    Audio: x1 PC audio (3.5 mm)
    RS232: x 1
    PC Slot: x 1 (optional VPC12-WPO)
    IR: x 1
  • OUTPUT
    RS232: x 1
    IR: x 1
  • LAN
    RJ45: x 1
  • USB
    Type A: x 1 for 5V/2A
    2.0 Type A: x 2 (USB Playback)
    3.0 Type A: x 1 (USB Playback)
  • SPEAKERS
    10W x 2
  • COMPATIBILITY
    VGA: 1920 x 1080
    DisplayPort: 480i, 480p,720p,1080i,1080p, 4K2K@30Hz
    HDMI: 480i, 480p,720p,1080i,1080p, 4K2K@60Hz
  • POWER
    Voltage: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
    Consumption: Normal 165 W, Max 295 W
    EEI Rating: A
  • ERGONOMICS
    Wall Mount (VESA® ): 400 x 400mm ; Screw: M6*(10+X) mm. (X=thickness of wall mount plate)
  • OPERATING CONDITIONS
    Temperature (º C): 5°C to 40°C
    Humidity: 20% ~ 80% non-condensing
  • DIMENSIONS (W X H X D)
    Physical (mm / inch): 1458.7 x 938.8 x 540 mm / 57.43 x 36.96 x 21.26 in. (with Stand)
    Physical w/o Stand (mm / inch): 1458.7 x 834.7 x 81.6 mm / 57.43 x 32.86 x 3.21 in. (w/o Stand)
    Packaging (mm / inch): 1655 x 1078 x 280 mm / 65.16 x 42.44 x 11.02 in
  • WEIGHT
    Net (kg / lb): 28.9 kg / 63.71 lbs (with Stand)
    Net w/o Stand (kg / lb): 24.8 kg / 54.67 lbs (w/o stand)
    Gross (kg / lb): 34.84 kg / 76.80 lbs
  • WHAT'S IN THE BOX?
    1. CDE6510 presenation display
    2. Remote Control with batteries
    3. User manual CD wizard
    4. Quick Start Guide
    5. Power Cables
    6. RS232 cable
    7. RS232 daisy chain cable (2.4mm – 2.4mm)
    8. IR sensor cable
