Key Features

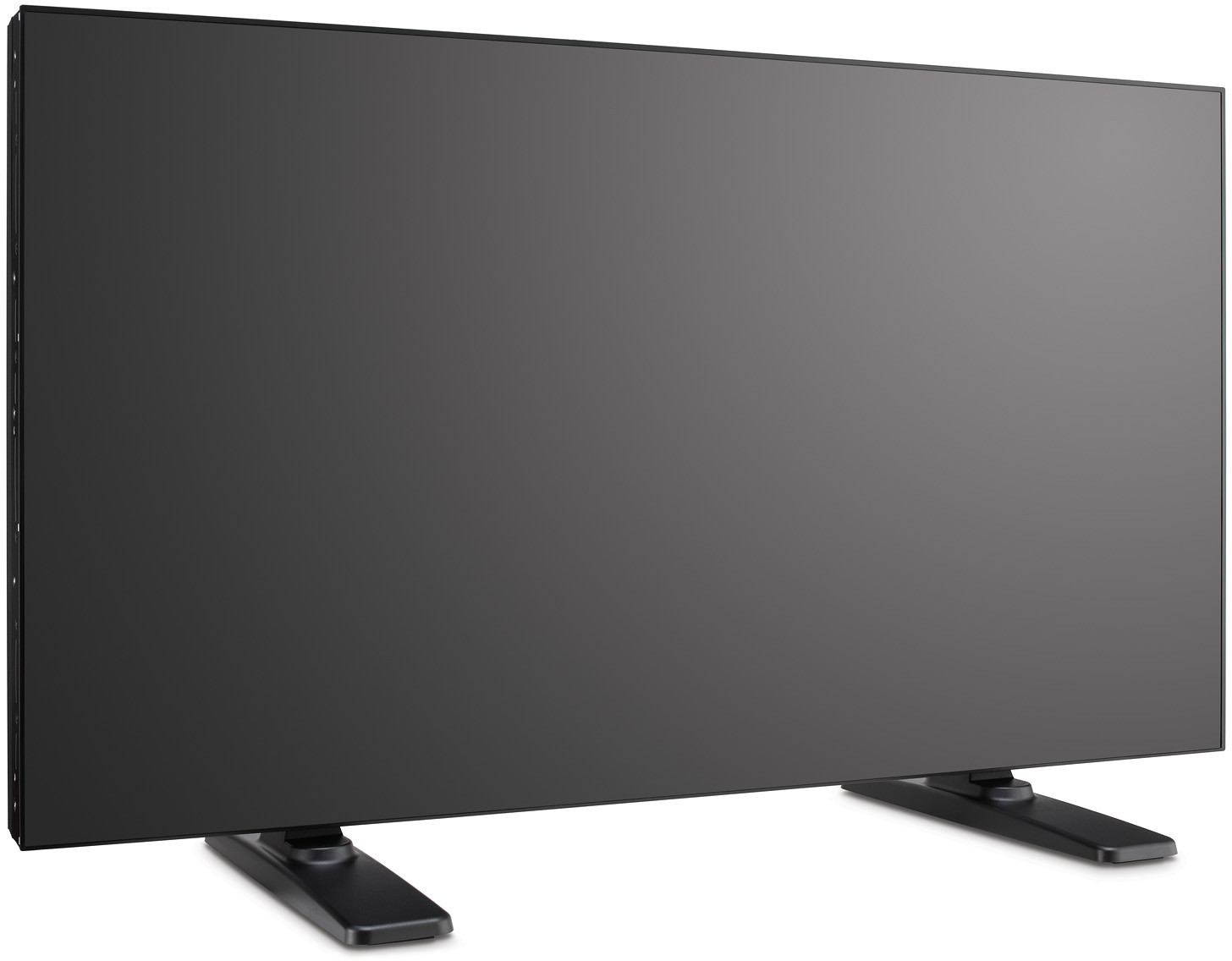

CD4636
Product Description
ViewSonic’s 46" CD4636 Commercial Display is designed for use in educational, retail, public and commercial signage applications. Super slim bezel is great for display wall applications. High Definition resolutions provides a clear view in any installation. Generous screen size and super slim bezel make messages stand out in a big way. Multiple connectivity and resolutions provide you with lots of options for showing a diverse set of digital signage content; from video, to internet pages, PowerPoint, Flash, and much more with ultimate HD clarity. Display your vivid graphics and stunning video beautifully with this large, bright and high contrast screen.
Visit Us
  • www.viewsonic.com
  • COLORS
    Black
  • LCD
    Type: 46" color TFT active matrix, wide LCD
    Contrast Ratio: 3000:1 (typ)
    Viewing Angles: 178º horizontal, 178º vertical
    Brightness: 450 cd/m2 (typ)
    Display Area: 40" horizontal x 22.5" vertical; 46" diagonal
    Optimum Resolution: 1366x768, 600mm dot pitch
    Response Time: 8ms
    Light Source: Long life, 50,000 hrs. (typ)
    Aspect Ratio: 16:9
    Panel Surface: Anti-glare, hard coating (3H)
  • DIMENSIONS
    Physical With Stand: 40.4" x 24.8" x 16" (1025.25mm x 650mm x 405mm)
    Physical Without Stand: 40.4" x 22.8" x 4.8" (1025.25mm x 579.8mm x 120.8mm)
  • PACKAGE CONTENTS
    LCD display, power cable, remote control with batteries,
    User Guide CD
  • AUDIO
    Amplifier: 7-watt / 8 ohm
  • INPUT
    Video Input: HDMI, DVI, component, VGA, S-Video, composite
    Video Output: VGA, component, DVI
    Control Input/Output: RS-232
  • INPUT SIGNAL
    TV/Video comp.: 480i, 480p, 720p, 1080i, 1080p
  • CONNECTOR
    Digital: HDMI, DVI
    Power: 3-pin plug
    Analog: 15-pin mini D-sub (VGA)
  • POWER
    Voltage: AC 100-240V (universal), 50-60Hz
    Consumption: 232W (typ)
  • CONTROLS
    Picture: Picture mode, contrast, brightness, color temperature,
    temperature adjust, sharpness
    Front Panel: Power, Exit, +, –, Menu/Enter
    Screen: Auto adjustment, clock, phase, sharpness,
    H. position, V. position
    Audio: Volume, mute, audio source
  • VESA® MOUNT
    VESA 100mm x 100mm, 12 holes
  • WEIGHT
    Gross: without stand - 76.5 lb. (34.7 kg)
    Net With Stand: 69.8 lb. (31.7 kg)
    Net Without Stand: 69.0 lb. (31.7 kg)
  • OPERATING CONDITIONS
    Humidity: 20-85% (non-condensing)
    Temperature: 41-104ºF (0-40ºC) - Landscape
    41-95ºF (0-35ºC) - Portrait
  • WARRANTY
    Three-year limited warranty on parts, labor and backlight
  • RECYCLE/DISPOSAL
    The lamp in this product contains mercury. Please
    dispose of in accordance with local, state or federal laws.
