Key Features

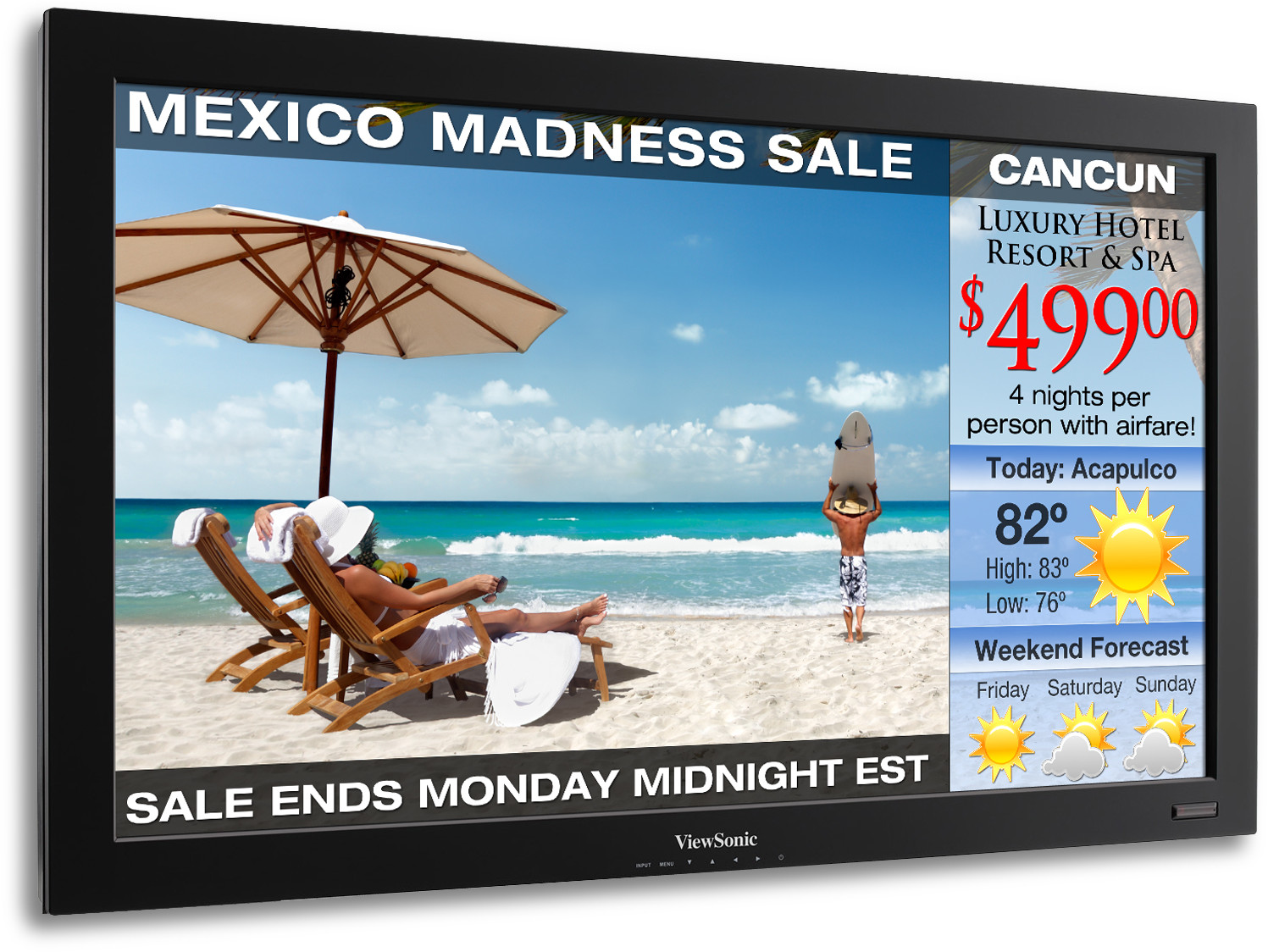

CD3225
Product Description
ViewSonic’s 32" CD3225 Commercial Display is designed for use in educational, retail, public and commercial signage applications. Full 1080p resolution and nearly 178º horizontal and vertical viewing angles provide a clear view in any installation. Multiple connectivity and resolutions provide many options for showing a diverse set of digital signage content; from movies, to internet pages, PowerPoint, Flash, and much more with ultimate HD clarity. Display your vivid graphics and stunning video beautifully with this bright and high contrast commercial display.
Visit Us
  • www.viewsonic.com
  • COLORS
    Black
  • LCD
    Type: 32" color TFT active matrix, wide LCD
    Contrast Ratio: 5000:1 (typ)
    Viewing Angles: 178º horizontal, 178º vertical
    Brightness: 450 cd/m2 (typ)
    Display Area: 27.48" horizontal x 15.47" vertical; 31.5" diagonal
    Optimum Resolution: 1920x1080, 0.36375mm dot pitch
    Response Time: 8ms
    Light Source: Long life, 50,000 hrs. (typ)
    Aspect Ratio: 16:9
    Panel Surface: Anti-glare
  • DIMENSIONS
    Physical (WxHxD): 29.2" x 18.6" x 5.1" (775.6mm x 472.6mm x 128mm)
    Packaging: 33.6" x 26.5" x 13.9" (855mm x 675mm x 355mm)
  • AUDIO
    Speaker: 6Wx2
  • INPUT
    Audio: 3.5mm jack
    Video Input: HDMI, DVI, VGA, S-Video, CVBS
    Control Input/Output: RS-232/RS-232
  • CONNECTOR
    Digital: HDMI, DVI
    Power: 3-pin plug
    Analog: 15-pin mini D-sub (VGA)
  • POWER
    Voltage: AC 100–240V (universal), 50–60Hz / DC 24V, 4.1A
    Consumption: 100W (typ)
  • CONTROLS
    Picture: Pictue Mode, Contrast, Brightness, Color, Tint, Sharpness,
    Backlight, DCR, Color Temperature
    Audio: Volume, Mute
    Front Panel: Input, Menu, Up, Down, Left, Right, Power
    OSD: Aspect Ratio, PIP, Video Source, Auto Adjustment, Clock,
    Frequency, Phase, H. Possition, V. Position, 3D Comb, Blue Screen
    Special: Language, Overscan, Power Save, Set Monitor ID, Image
    Rentaton, Auto Adjsutment, Reset All Setting, Diagnostic
  • VIDEO SIGNAL
    Video: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
  • WEIGHT
    Net: 35.3 lb. (16 kg)
  • OPERATING CONDITIONS
    Humidity: 20–80% (non-condensing)
    Temperature (landscape): 32–104ºF (0–40ºC)
    Temperature (portrait): 41–95ºF (5–35ºC)
