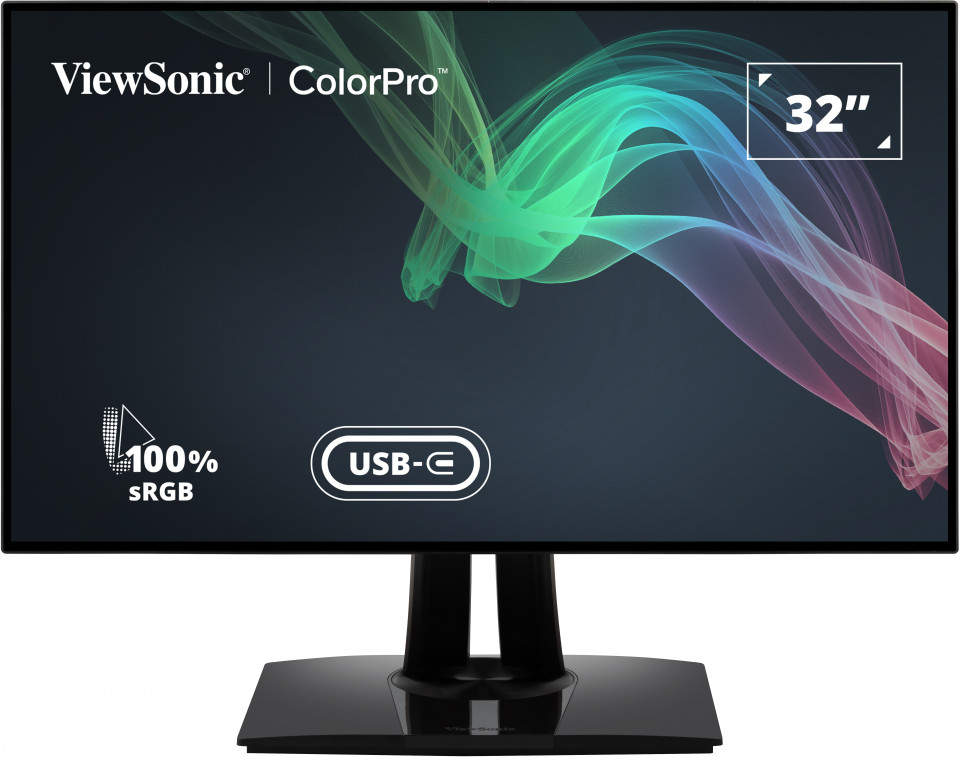

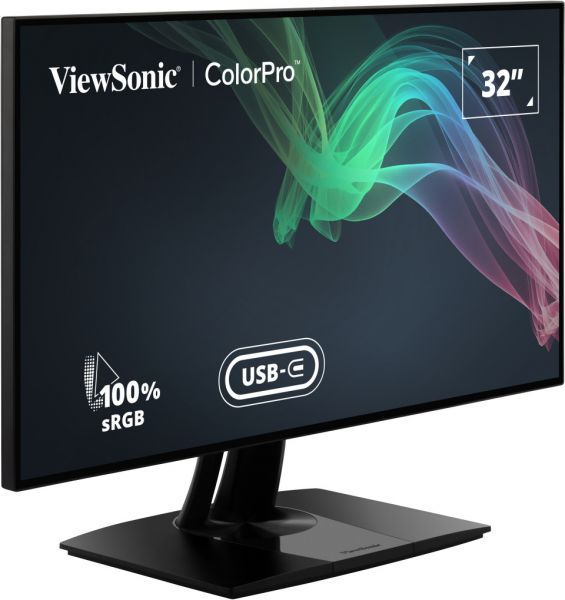

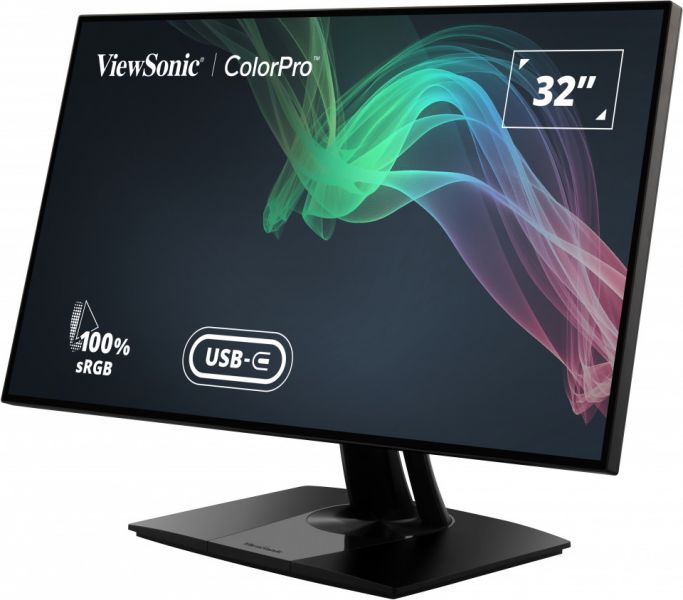

Name: VP3268A-4K
Brand: ViewSonic
SKU: VP3268A-4K

PRODUCT GALLERY

SPECIFICATIONS

Display
Display Size (in.): 32
Viewable Area (in.): 31.5
Panel Type: IPS Technology
Resolution: 3840 x 2160
Resolution Type: UHD (Ultra HD)
Static Contrast Ratio: 1,300:1 (typ)
Dynamic Contrast Ratio: 20M:1
High Dynamic Range: HDR10
Light Source: LED
Brightness: 350 cd/m² (typ)
Colors: 1.07B
Color Space Support: 10 bit (8 bit + A-FRC)
Aspect Ratio: 16:9
Response Time (Typical GTG): 5ms
Response Time (GTG w/OD): 5ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 60
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: Adobe RGB: 80% size / 77% coverage (Typ)
DCI-P3: 80% size / 80% coverage (Typ)
EBU: 107% size / 97% coverage (Typ)
REC709: 108% size / 100% coverage (Typ)
SMPTE-C: 117% size / 100% coverage (Typ)
NTSC: 77% size (Typ)
sRGB: 108% size / 100% coverage (Typ)
Pixel Size: 0.182 mm (H) x 0.182 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max): 3840x2160
Mac® Resolution (max): 3840x2160
PC Operating System: Windows 10 certified; macOS tested
Mac® Resolution (min): 3840x2160
Connector
USB 3.2 Type A Down Stream: 2
USB 3.2 Type B Up Stream: 1
USB 3.2 Type C Up Stream; DisplayPort Alt mode : 1 (90W power charger)
3.5mm Audio Out: 1
HDMI 2.0 (with HDCP 2.2): 2
DisplayPort: 1
Power in: 3-pin Socket (IEC C14 / CEE22)
Ethernet LAN (RJ45): 1

Audio
Internal Speakers: 5Watts x2
Power
Eco Mode (Conserve): 31W
Eco Mode (optimized): 35.2W
Consumption (typical): 46W
Consumption (max): 51W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: Internal Power Supply
Additional Hardware
Kensington Lock Slot: 1
Cable Organization: Yes
Controls
Physical Controls: Key 1, Key 2, Key 3, Key 4, Key 5, Key 6 (power)
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%

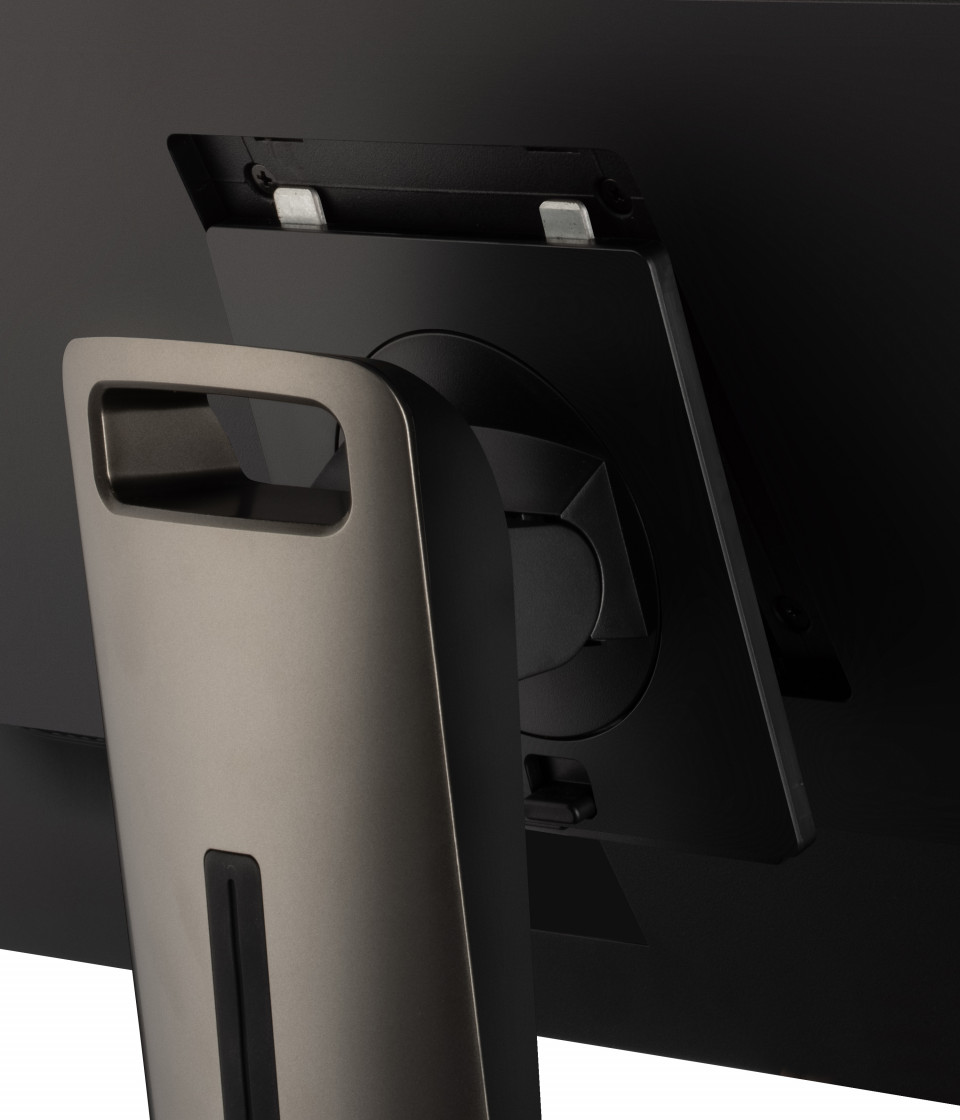

Wall Mount
VESA Compatible: 100 x 100 mm
Input Signal
Frequency Horizontal: 15 ~ 135KHz
Frequency Vertical: 24 ~ 75Hz
Video Input
Digital Sync: TMDS - HDMI (v2.0), PCI-E - DisplayPort (v1.4), Micro-Packet - Type C

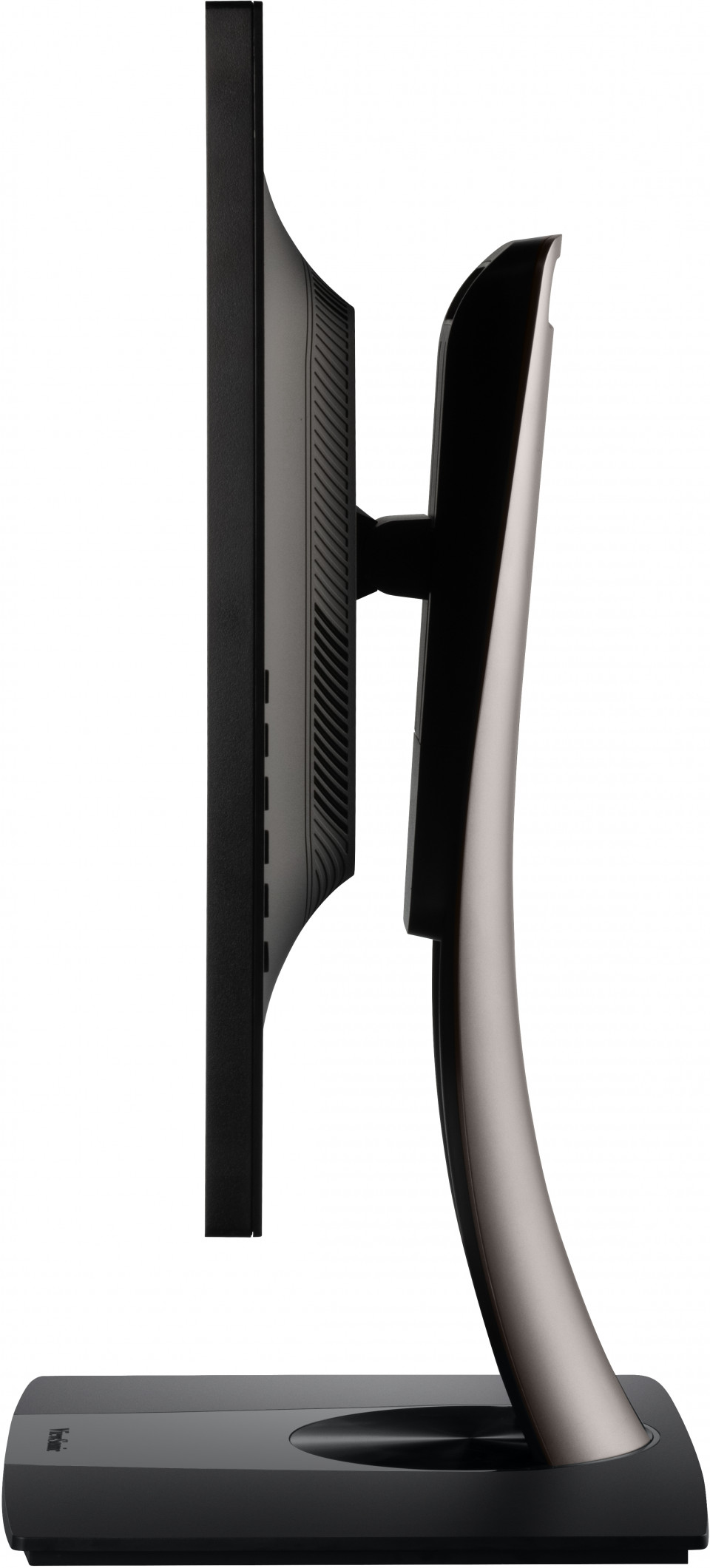

Ergonomics
Height Adjust (mm): 130
Swivel: 120º

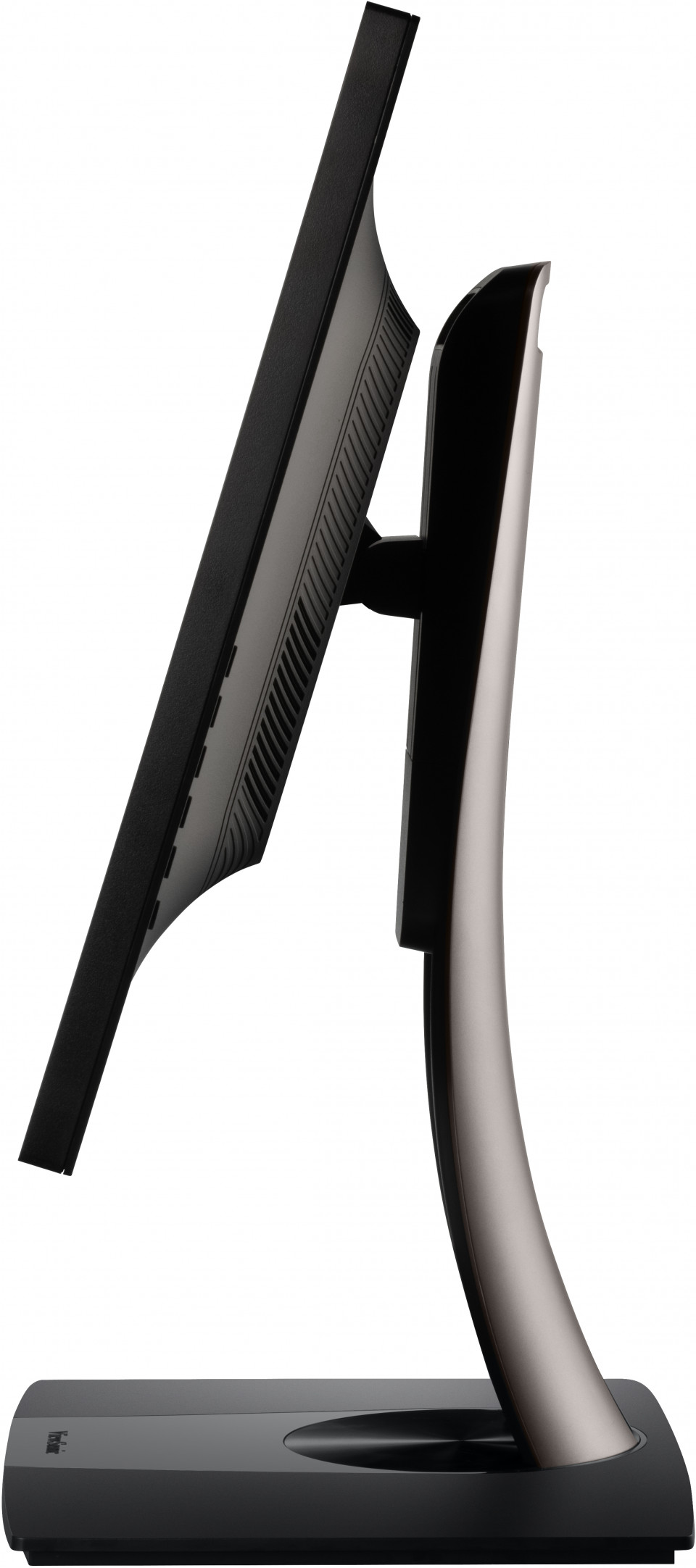

Tilt (Forward/Back): -5º / 21º

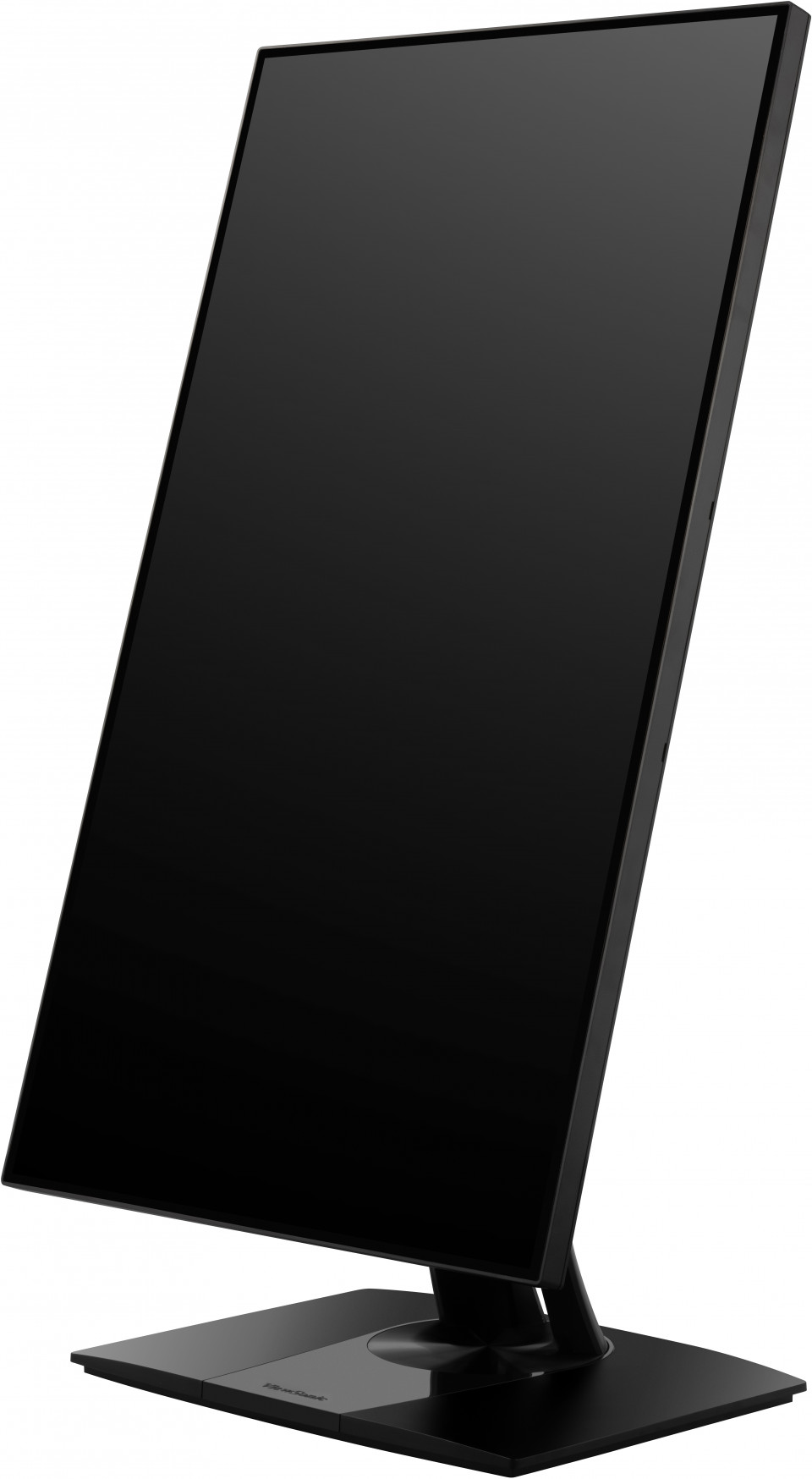

Pivot (Right/Left): 90º / 90º
Weight (imperial)
Net (lbs): 23.5
Net Without Stand (lbs): 15
Gross (lbs): 36.2
Weight (metric)
Net (kg): 10.7
Net Without Stand (kg): 6.8
Gross (kg): 16.4
Dimensions (imperial) (wxhxd)
Packaging (in.): 32.9 x 22.6 x 12.6
Physical (in.): 28.1 x 19.92~25.04 x 10.4
Physical Without Stand (in.): 28.1 x 16.1 x 2.1
Dimensions (metric) (wxhxd)
Packaging (mm): 835 x 575 x 320
Physical (mm): 714 x 506.08~636.08 x 265
Physical Without Stand (mm): 714 x 410 x 53
General
PACKAGE CONTENTS: VP3268A-4K x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v2.0; Male-Male) x1, USB Type-C Cable (Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
Power Management: Energy Star standards, EPEAT
