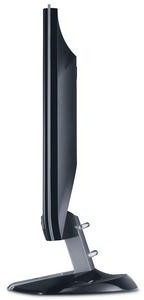

ViewSonic VX1935wm 19" WIDE SCREEN LCD WITH CLEARMOTIV™ 5MS BROADCAST QUALITY VIDEO

LCD

Tipo:	19” Wide TN colour TFT active matrix WXGA LCD
Ratio de contraste:	700:1 (typ.)
Ángulos de visión:	130° horizontal, 120° vertical (at 10:1) 150° horizontal, 140° vertical (at 5:1)
Brillo:	300cd/m²
Área de visualización:	41.0cm horizontal x 25.6cm vertical; 48.3cm diagonal
Resolución óptima:	1440 x 900@60Hz
Tiempo de respuesta:	5ms (off-on-off) (typ.)
Fuente de luz:	Long life, 40000 hrs. (min.)
Superficie del panel:	Anti-glare (3H)
Tamaño del píxel:	0.285mm
Gama de colores:	16.2M colours (6-bit+2-bit FRC)v
Frecuencia de píxel:	136.5MHz

COMPATIBILIDAD

PC: VGA up to 1440 x 900 non-interlaced

Mac®: Power Mac™ up to 1440 x 900 non-interlaced
DIMENSIONES

An x Al x P mm: 450 x 434 x 210 (with stand)
450 x 341 x 76 (without stand)
545 x 515 x 162 (packaging)
NORMATIVAS

CE, CB, ISO13406-2 (pixel failure class II), GOST-R+Hygienic, MPR II,
SASO, Energy Star, ENERGY, WEEE, RoHS
CONTENIDO DE LA CAJA

LCD Monitor, power cable, D-sub video cable, DVI cable, audio cable, Quick Start
Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language)
GARANTÍA

Please see: www.viewsoniceurope.com/UK/Support/warranty.htm
AUDIO

Altavoces: 2 x 1.5 watt integrated speakers
ENTRADA

Syncronización: H/V separate (TTL), composite, sync on green

Digital: DVI-D (TMDS, 100 ohms)

Analógico: RGB analogue (0.7 Vp-p, 75 ohm)

Frecuencia: DVI-D (TMDS, 100 ohms)
CONECTIVIDAD

Analógico: 15-pin mini D-Sub (detachable cable)

Digital: 24-pin DVI-D (detachable cable)

Audio: 3.5mm stereo audio line-in

Alimentación: 3-pin AC plug (CEE22)
ALIMENTACIóN

Voltaje: AC 100–240V, 50/60Hz (auto switch), internal power supply

Consumo: 35 watt (typ.), <1 watt in power save mode

CONTROLES

Básico:

Power, menu [1], up, down, select [2]

Menú en pantalla:

Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), audio
(volume, mute), ViewMatch® colour adjust (sRGB, 9300K, 7500K, 6500K, 5400K,
user RGB), information (resolution, H/V frequency, pixel clock, model number,
serial number, website), manual image adjust (H/V position, H size, fine tune,
sharpness), setup menu (language, resolution notice, OSD position, OSD timeout,
OSD background), OSD/power lock, memory recall

PESO

Neto: 5.6kg (with stand)
4.7kg (without stand)

Bruto: 5.6kg (with stand)
4.7kg (without stand)
GESTIÓN DE ENERGÍA

Meets MPR II and Energy Star® standards
SEGURIDAD

Kensington® security port
MONTAJE EN LA PARED

VESA FDMI 100mm x 100mm
ERGONOMÍA

Inclinación: 35 watt (typ.), <1 watt in power save mode
CONDICIONES DE FUNCIONAMIENTO

Humedad: 20%–85% (non-condensation)

Temperatura: 0°C–40°C

PC:	VGA up to 1440 x 900 non-interlaced
Mac®:	Power Mac™ up to 1440 x 900 non-interlaced

Syncronización:	H/V separate (TTL), composite, sync on green
Digital:	DVI-D (TMDS, 100 ohms)
Analógico:	RGB analogue (0.7 Vp-p, 75 ohm)
Frecuencia:	DVI-D (TMDS, 100 ohms)

Analógico:	15-pin mini D-Sub (detachable cable)
Digital:	24-pin DVI-D (detachable cable)
Audio:	3.5mm stereo audio line-in
Alimentación:	3-pin AC plug (CEE22)

Voltaje:	AC 100–240V, 50/60Hz (auto switch), internal power supply
Consumo:	35 watt (typ.), <1 watt in power save mode

Neto:	5.6kg (with stand) 4.7kg (without stand)
Bruto:	5.6kg (with stand) 4.7kg (without stand)

Humedad:	20%–85% (non-condensation)
Temperatura:	0°C–40°C
