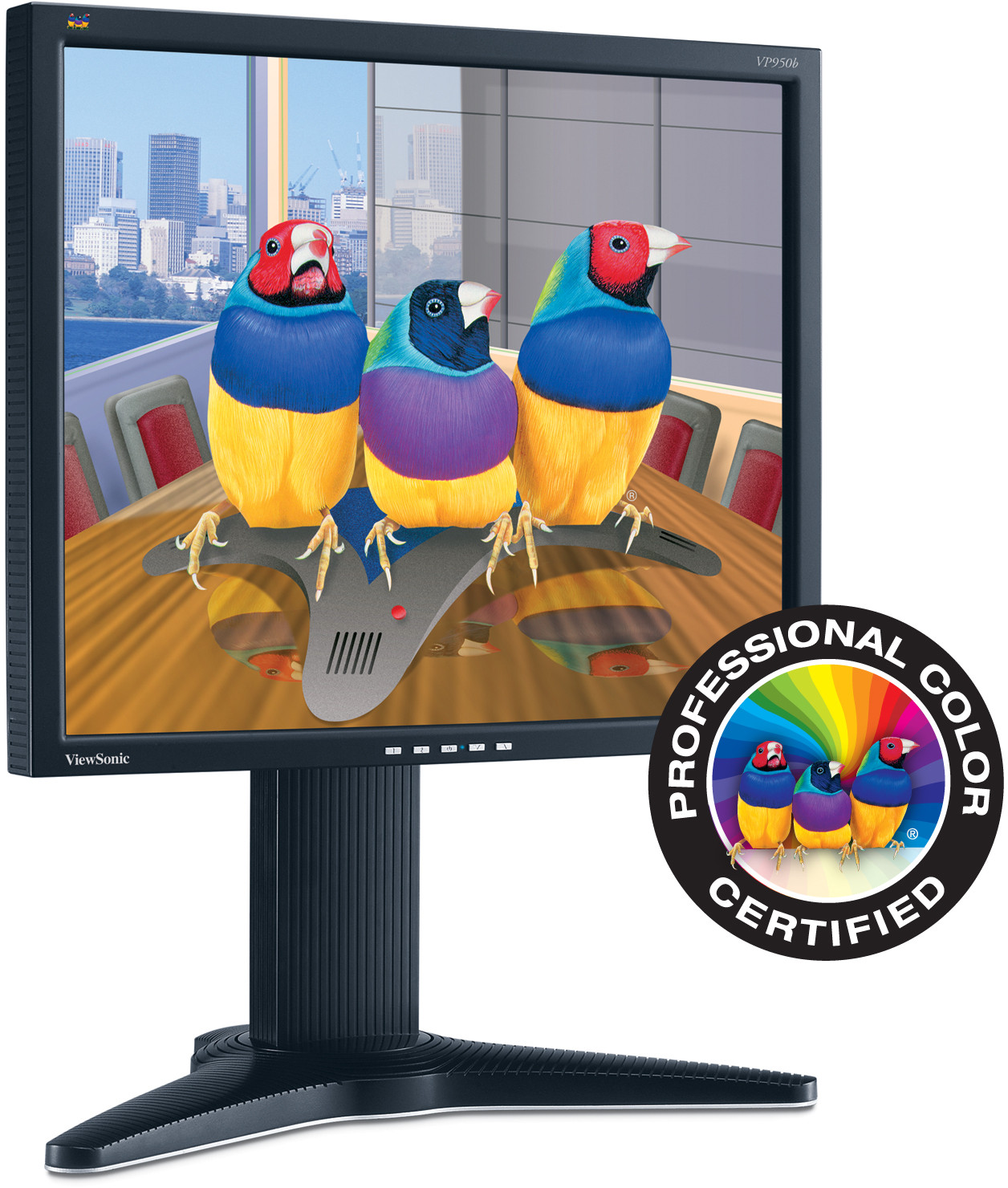

Pantalla LCD
VP950b
Caraterísticas principales
Descripción del producto
ViewSonic’s 48 cm / 19" VP950b LCD is a professional-grade display with 98% NTSC colour capability for richer, more natural colours across the entire colour spectrum. It is ideal for medical imaging, where precise colour rendition is vital to diagnosis. Graphics production, film and financial professionals will also find this display perfectly suited to their needs. 2000:1 DYNAMIC CONTRAST RATIO (typ.) and ultra-fast ClearMotiv 2ms response time (GtoG) deliver SUPERIOR FRONT-OF-SCREEN PERFORMANCE. The VP950b offers extensive ergonomic adjustments including height adjust, tilt, 120º swivel and pivot, and even a quick release stand. Certified for Windows Vista, this display is also HDCP compatible and features OptiSync digital/ analogue inputs plus 4 USB PORTS TO DELIVER A VERSATILE AND FLEXIBLE professional package. Step into a world of amazing colour and accuracy with the VP950b.
Visita
- www.viewsonic.com
-
COLORS
Black -
LCD
Tipo: 48 cm / 19" TN colour TFT active matrix SXGA LCD Ratio de contraste: 800:1 (typ.), 2000:1 DCR (typ.) Ángulos de visión: 170° horizontal, 160° vertical (at 10:1)
170° horizontal, 170° vertical (at 5:1)Brillo: 280cd/m2 (typ.) Área de visualización: 37.6cm horizontal x 30.1cm vertical, 48.3cm diagonal Resolución óptima: 1280 x 1024@60Hz Tiempo de respuesta: 2ms (grey-to-grey), 5ms (off-on-off, typ.) Fuente de luz: Long life, 50000 hrs. (typ.) Superficie del panel: Anti-glare (3H) Tamaño del píxel: 0.294mm Gama de colores: 16.7M colours supported (6-bit+2-bit HI FRC) Frecuencia de píxel: 140MHz Gama de colores: Wide colour gamut, 98% of NTSC -
COMPATIBILIDAD
PC: VGA up to 1280 x 1024 non-interlaced Mac®: Power Mac™ up to 1280 x 1024 non-interlaced -
DIMENSIONES
Físicas con la base: 412 x 391-510 x 279 Físicas sin la base: 412 x 331 x 63 Embalaje (LxAxP): 470 x 523 x 195 -
NORMATIVAS
TCO’03, CE, CB, GS, ERGO, ISO 13406-2 (pixel failure class II), UL,
cUL, GOST-R, Hygienic, FCC-B (ICES), ICES-003B, NOM, SASO, ENERGY, ENERGY STAR, C-Tick, KTL/MIC, BSMI, PSB, TUV-S/IRAM/UL-AR S Mark, MPR II, CCC, Green Mark, EPEAT, WEEE, RoHS -
CONTENIDO DE LA CAJA
LCD Monitor, power cable, 15-pin VGA video cable, DVI-D cable, USB cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers)
(multi-language) -
CONECTIVIDAD
Analógico: 15-pin mini D-sub (detachable cable) Digital: 24-pin DVI-D (detachable cable) (HDCP enabled) Alimentación: 3-pin plug (CEE22) USB: 1 x upstream (4-pin Typ B)/4 x downstream (4-pin Typ A), USB 2.0 -
ALIMENTACIóN
Voltaje: AC 100–240V, 50–60Hz (Auto-Switch), internal power supply Consumo: 40 watt (typ., without USB peripheral connected), <1 watt in power save mode -
CONTROLES
Básico: Power, menu [1], up, down, select [2] Menú en pantalla: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D),
ViewMatch® colour adjust (sRGB, 9300K, 7500K, 6500K, 5000K, user RGB),
information (resolution, H/V frequency, pixel clock, model number, serial
number), manual image adjust (H/V position, H size, fine tune, sharpness, DCR [on/off], response time [standard, advanced, ultra-fast]), setup menu
(language, resolution notice, OSD position, OSD timeout, OSD background, OSD pivot), auto white balance, OSD/power lock -
CONDICIONES DE FUNCIONAMIENTO
Temperatura: 0° to 40° Humedad: 10% to 90% (non-condensation) -
PESO
Neto con la base: 5.6kg Neto sin la base: 4.4kg Bruto: 7.5 kg -
ENTRADA DE VíDEO
Frecuencia: Fh: 24-82kHz, fv: 50-85Hz Syncronización: H/V separated (TTL), composite, sync on green Analógico: RGB analogue (0.7/1.0 Vp-p , 75 ohms) Digital: DVI-D (HDCP enabled, TMDS, 100 ohms, DDC/CI) -
GESTIÓN DE ENERGÍA
Meets TCO’03 and ENERGY STAR standards -
SEGURIDAD
Kensington security port -
MONTAJE EN LA PARED
VESA FDMI 100mm x 100mm -
ERGONOMÍA
Inclinación: Down 5°, up 20° Giratoria: 120° (60° left/right) Ajuste de altura: 0~120mm Pivote: 0°~90°
