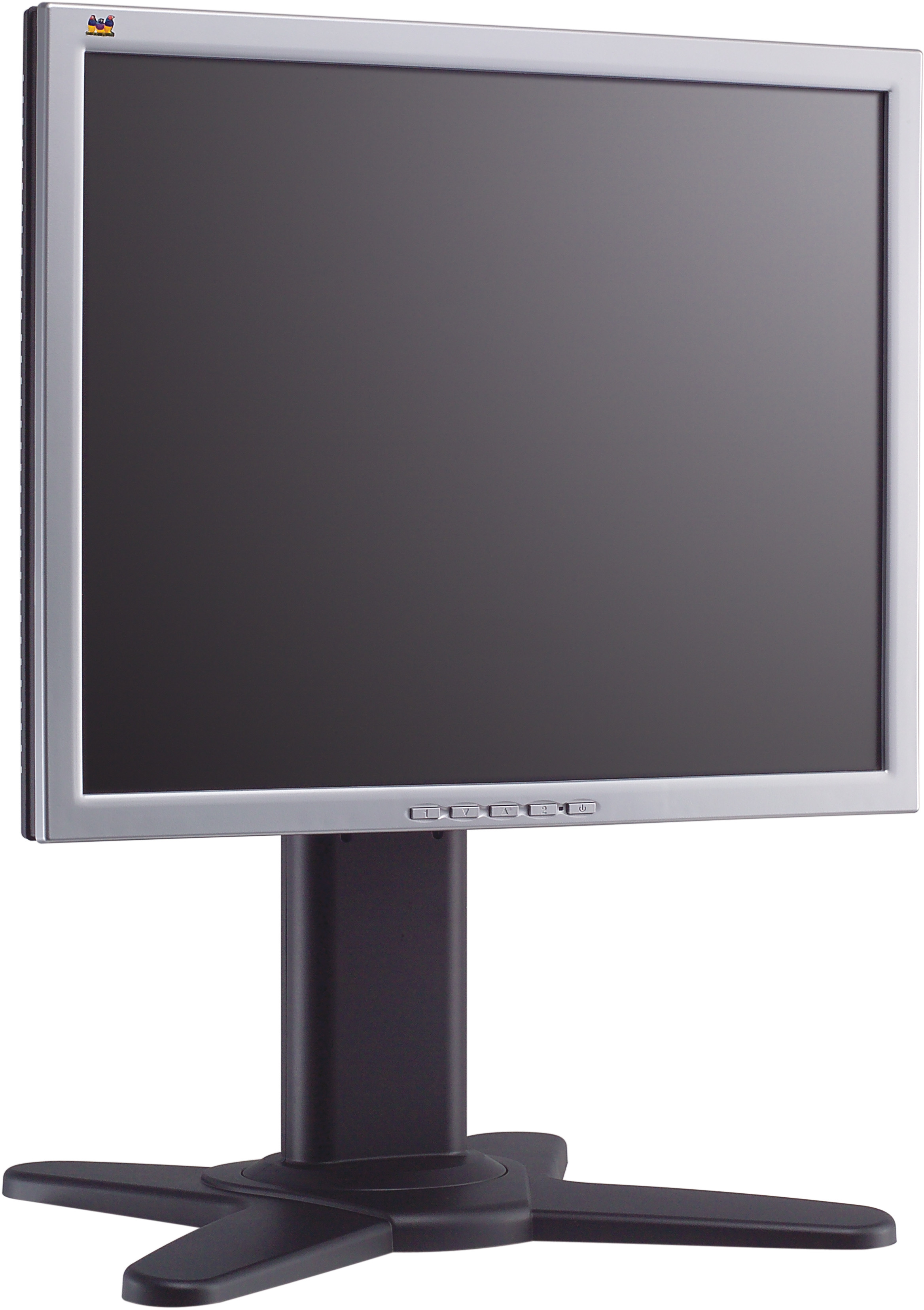

ViewSonic VP730 ERGONOMIC 17" LCD MONITOR WITH PERFECT SUITE

LCD

Tipo:	43cm / 17" TN colour TFT active matrix SXGA LCD
Ratio de contraste:	700:1 (typ.)
Ángulos de visión:	140° horizontal, 130° vertical (at 10:1) 160° horizontal, 160° vertical (at 5:1)
Brillo:	300cd/m² (typ.)
Área de visualización:	338mm (horizontal) x 270mm (vertical), 43.2cm diagonal
Resolución óptima:	1280 x 1024
Tiempo de respuesta:	8ms (typ.)
Superficie del panel:	Anti-glare
Tamaño del píxel:	0.264mm
Ancho de banda:	135MHz
Gama de colores:	16.2M colours (6-bit+2-bit FRC)

COMPATIBILIDAD

PC: Compatible from VGA up to 1280 x 1024 non-interlaced (max. 75Hz)

Mac®: Power Mac™ up to 1280 x 1024 (max. 75Hz)
DIMENSIONES

An x Al x P mm: 372 x 342–477 x 279 (with stand)
308 x 372 x 56 (without stand)
NORMATIVAS

TCO´03, ISO 13406-2 (pixel failure class II), UL, cUL, FCC-B (ICES), CB, CE, ICES-003B,NOM, ENERGY, Energy Start,
GOST-R, Hygienic, SASO, KTL/MIC, BSMI, CCC, PSB, C-TICK, WEE
CONTENIDO DE LA CAJA

LCD display, power cable, 15-pin VGA video cable, DVI cable, Quick Start Guide, ViewSonic Wizard CD-ROM
(User Guide/drivers/Perfect-Suite software), portrait/pivot CD-ROM software
GARANTÍA

Please see: www.viewsoniceurope.com/UK/Support/warranty.htm
ENTRADA

Syncronización: H/V separated (TTL), composite, sync on green

Digital: DVI-D (TMDS, 100 ohms)

Analógico: RGB analogue (0.7/1.0 Vp-p , 75 ohms)

Frecuencia: Fh: 24-82kHz, fv: 50-85Hz
CONECTIVIDAD

Analógico: 2 x 15-pin mini D-sub (detachable cable)

Digital: Digital DVI-D (detachable cable)

Alimentación: 3-pin plug (CEE22)
ALIMENTACIóN

Voltaje: AC 100–240V, 50–60Hz (Auto-Switch), internal power supply

Consumo: 35 watt (max.), ≤ 1 watt in suspend mode

CONTROLES

Básico:

Meets TCO’03, ENERGY and Energy Star standards

Menú en pantalla:

Auto image adjust, contrast, brightness, input select (D-sub 1, D-sub 2,
DVI), colour adjust (sRGB, 9300K, 7500K, 6500K, 5400K, 5000K, user
RGB), information (resolution, H/V frequency, pixel clock, model
number, serial number), manual image adjust (H/V position, H size, fine
tune, sharpness), setup menu (language, resolution notice, OSD
position, OSD timeout, OSD background, OSD pivot), auto white
balance, OSD/power lock, memory recall

CONDICIONES DE FUNCIONAMIENTO

Temperatura: 0°C to 40°C

Humedad: 10% to 90% (non-condensing)
PESO

Neto: 5.7kg (w/stand); 3.4 kg (without stand)
ERGONOMÍA

Inclinación: Down 5°, up 20°

Giratoria: 270° (135° left/right)

Ajuste de altura: 0~135mm

Pivote: 0°~90°

PC:	Compatible from VGA up to 1280 x 1024 non-interlaced (max. 75Hz)
Mac®:	Power Mac™ up to 1280 x 1024 (max. 75Hz)

Syncronización:	H/V separated (TTL), composite, sync on green
Digital:	DVI-D (TMDS, 100 ohms)
Analógico:	RGB analogue (0.7/1.0 Vp-p , 75 ohms)
Frecuencia:	Fh: 24-82kHz, fv: 50-85Hz

Analógico:	2 x 15-pin mini D-sub (detachable cable)
Digital:	Digital DVI-D (detachable cable)
Alimentación:	3-pin plug (CEE22)

Voltaje:	AC 100–240V, 50–60Hz (Auto-Switch), internal power supply
Consumo:	35 watt (max.), ≤ 1 watt in suspend mode

Temperatura:	0°C to 40°C
Humedad:	10% to 90% (non-condensing)

Inclinación:	Down 5°, up 20°
Giratoria:	270° (135° left/right)
Ajuste de altura:	0~135mm
Pivote:	0°~90°
