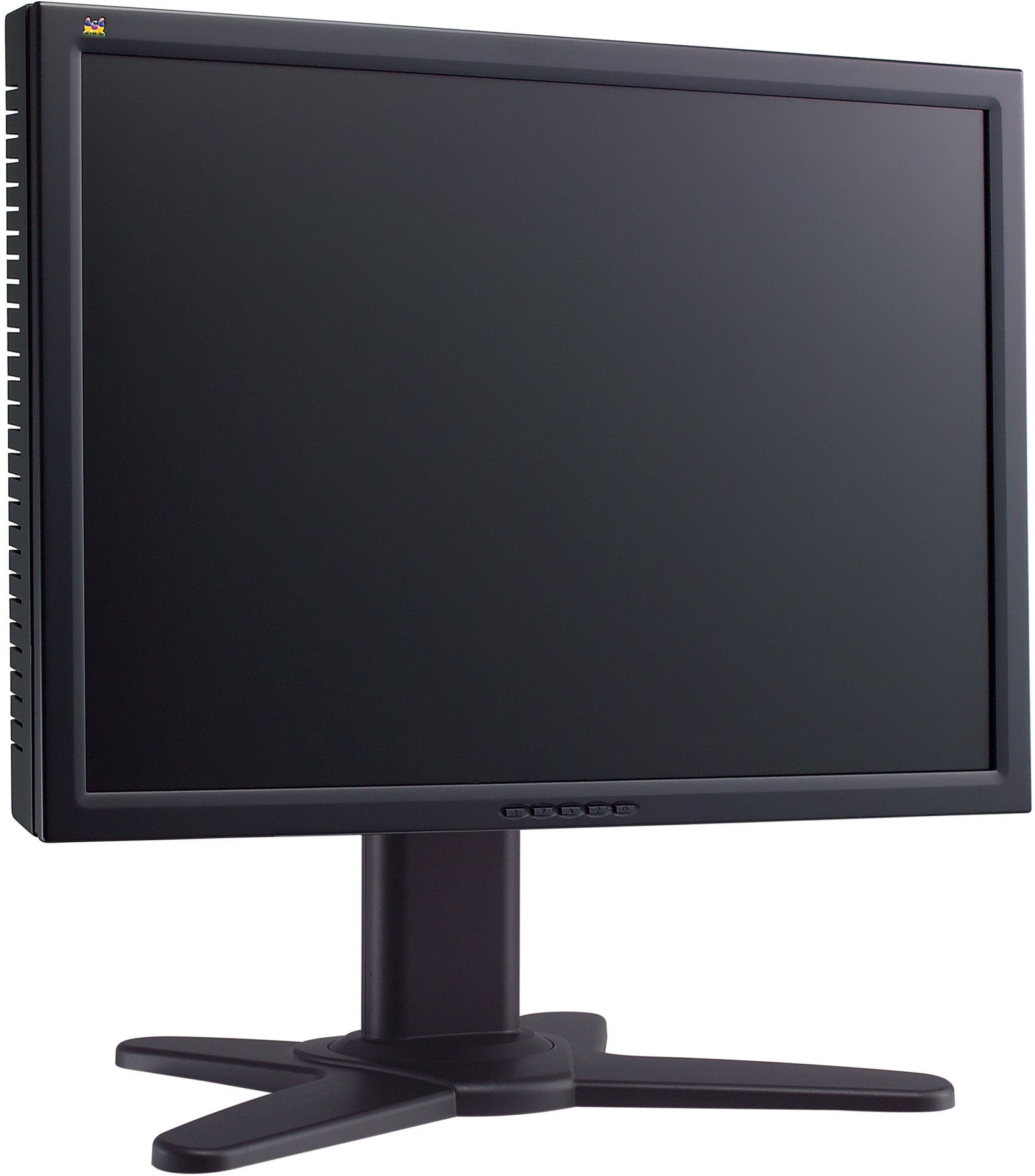

ViewSonic VP2330wb ERGONOMIC 23" LCD MONITOR WITH PERFECT SUITE

COLORS

Black

LCD

Tipo:	Thin Edge™ - Ideal for multi monitor setups
Ratio de contraste:	800:1 (typ.)
Ángulos de visión:	170° horizontal, 170° vertical (at 10:1) 170° horizontal, 170° vertical (at 5:1)
Brillo:	250cd/m² (typ.)
Superficie de cristal:	Anti-glare
Área de visualización:	49.5cm (horizontal) x 30.9cm (vertical), 58.4cm diagonal
Resolución óptima:	1920 x 1200
Tiempo de respuesta:	8ms (grey-to-grey), 16ms (off-on-off)
Tamaño del píxel:	0.258mm
Ancho de banda:	165MHz
Gama de colores:	16.7M colours (8-bit)

COMPATIBILIDAD

PC: Compatible from VGA up to 1920 x 1200 non-interlaced (max. 60Hz)

Mac®: Power Mac™ up to 1920 x 1200 (max. 60Hz)
DIMENSIONES

An x Al x P mm: 542 x 404 – 539 x 295 (w/stand)
542 x 354 x 110 (w/o stand)
NORMATIVAS

TCO´99,ISO 13406-2 (pixel failure class II),UL,
cUL, FCC-B (ICES), CB, CE, ICES-003B, NOM, ENERGY, Energy Star, GOST-R,
Hygienic, SASO, KTL/MIC, BSMI, CCC, PSB, C-TICK, WEEE, RoHS
CONTENIDO DE LA CAJA

LCD display, power cable, 15-pin VGA video cable, DVI cable, USB cable,
Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers),
PerfectSuite™ CD-ROM
GARANTÍA

Please see:
www.viewsoniceurope.com/UK/Support/warranty.htm
ENTRADA

Syncronización: H/V separated (TTL)

Analógico: RGB analogue (0.7/1.0 Vp-p , 75ohms)

Frecuencia: Fh: 24–96kHz, fv: 50–85Hz

Digital: H/V separated (TTL), composite, sync on green
CONECTIVIDAD

Analógico: 15-pin mini D-sub (detachable cable)

Digital: 29-pin Digital DVI-I (analogue and digital) (detachable cable)

USB: 1x upstream (4-pin Typ B)/4x downstream (4-pin Typ A)
ALIMENTACIóN

Voltaje: AC 100–240V, 50/60Hz (Auto-Switch), external power supply

Consumo: 80 watt (typ.), <4 watt in power save mode

CONTROLES

Básico:

Soft power, menu [1] , down, up, select [2]

Menú en pantalla:

Auto image adjust, contrast, brightness, input select (D-sub, DVI-A, DVI-D),
colour adjust (sRGB, 9300K, 7500K, 6500K, 5400K, 5000K, user RGB),
information (resolution, H/V frequency, pixel clock, model number, serial
number), manual image adjust (PIP [PIP, PIP position, PIP swap], H/V position,
H size, fine tune, sharpness), setup menu (language, resolution notice, input
priority, OSD position, OSD timeout, OSD background, OSD pivot), auto
white balance, OSD/power lock, memory recall

CONDICIONES DE FUNCIONAMIENTO

Temperatura: 0°C to 40°C

Humedad: 10% to 90% (non-condensing)
PESO

Neto: 7.8kg (w/stand); 4.9kg (w/o stand)
GESTIÓN DE ENERGÍA

Meets TCO’99, ENERGY and Energy Star standards
ERGONOMÍA

Inclinación: Down 5°, up 20°

Giratoria: 270° (135° left/right)

Ajuste de altura: 0~ ≥ 135mm

Pivote: 270° (135° left/right)
