Pantalla LCD
VP2250wb
Caraterísticas principales
Descripción del producto

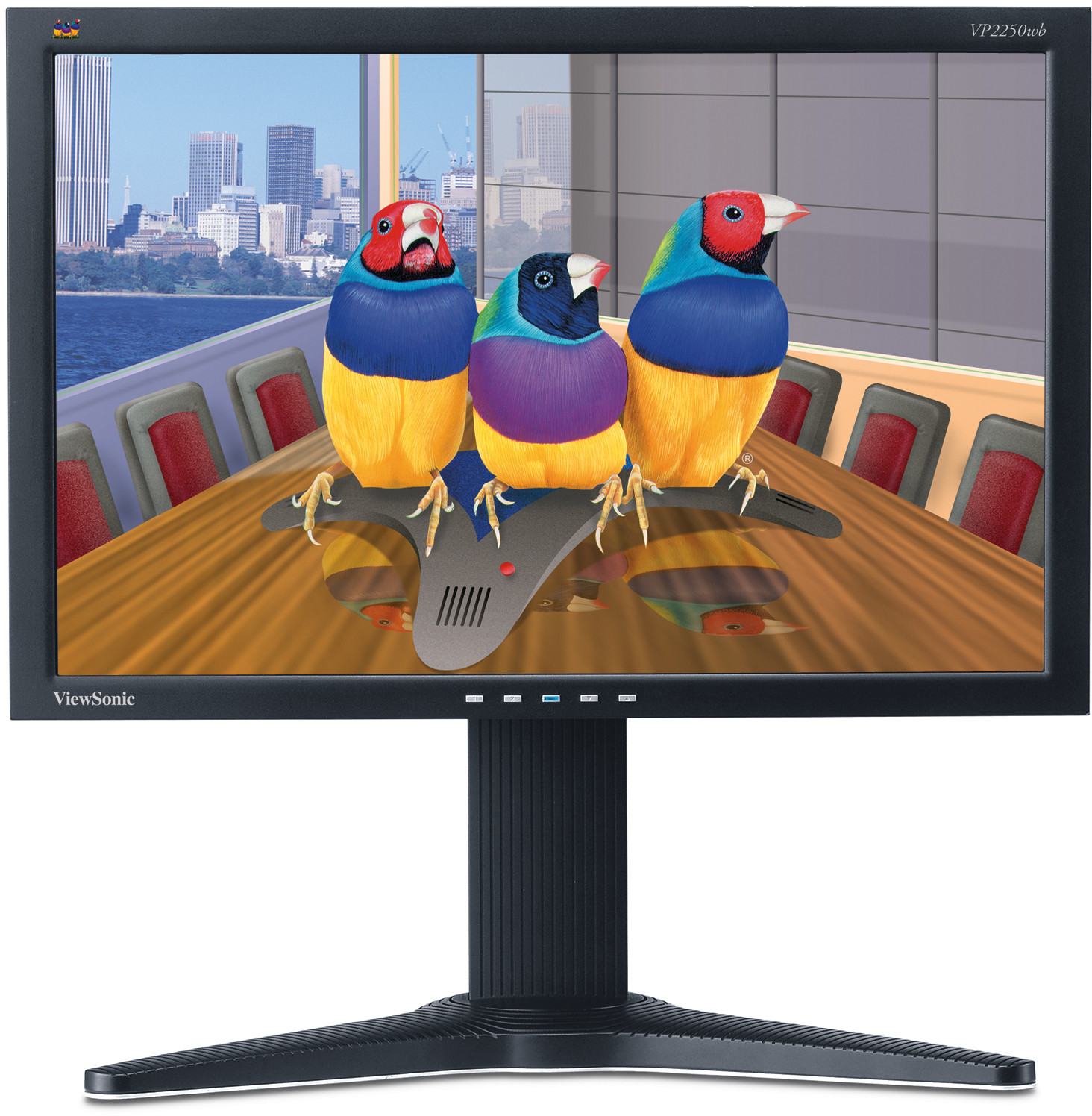

ViewSonic’s 55 cm / 21.6" VP2250wb widescreen LCD is a professional- grade display with 106% NTSC colour capability for richer more natural colours. Ideal for graphics production, financial and medical professionals where precise colour rendition is vital to the job. The VP2250wb features 3000:1 DYNAMIC CONTRAST RATIO (typ.) and ultra-fast ClearMotiv 2ms (grey-to-grey) response time for SUPERIORFRONT-OF-SCREEN PERFORMANCE. Designed with the discriminating professional in mind, this display offers extensive ergonomic adjustments including height adjust, tilt, 120º swivel and pivot, and even a quick release stand. Certified for Windows Vista, this display is also HDCP compatible and features OptiSync digital/analogue inputs plus 4 USB ports to deliver a versatile and flexible professional package. Step into a world of amazing colour and accuracy with the VP2250wb.
Visita
- www.viewsonic.com
-
COLORS
Black -
LCD
Tipo: 55 cm / 21.6" TN colour active matrix WSXGA+ Ratio de contraste: 1000:1 (typ.), 3000:1 DCR (typ.) Ángulos de visión: 160° horizontal, 160° vertical (at 10:1)
170° horizontal, 170° vertical (at 5:1)Brillo: 300cd/m² (typ.) Área de visualización: 46.5cm horizontal x 29.1cm vertical, 54.9cm diagonal Resolución óptima: 1680 x 1050@60Hz Tiempo de respuesta: 2ms (grey-to-grey), 5ms (off-on-off, typ) Fuente de luz: Long life, 40000 hrs. (typ.) Superficie del panel: Anti-glare (3H) Tamaño del píxel: 0.276mm Gama de colores: 16.7M colours supported (6-bit+2-bit HI FRC) Frecuencia de píxel: 205MHz (analogue), 165MHz (digital) Gama de colores: Wide colour gamut: 106% NTSC -
COMPATIBILIDAD
PC: VGA up to 1920 x 1080 (1080p) non-interlaced,
1680 x 1050@60Hz (native reslution) preferredMac®: Power Mac™ up to 1920 x 1080 (1080p) non-interlaced,
1680 x 1050@60Hz (native resolution) preferred -
DIMENSIONES
Físicas con la base: 510 x 388-508 x 309 Físicas sin la base: 510 x 334 x 66 Embalaje (LxAxP): 590 x 493 x 271 -
NORMATIVAS
TCO’03, CE, CB, GS, ERGO, ISO 13406-2 (pixel failure class II), UL, cUL, GOST-R, Hygienic, FCC-B (ICES), ICES-003B, NOM, SASO, ENERGY STAR®, C-Tick, KTL/MIC, BSMI, PSB, TUV-S/IRAM/UL-AR S Mark, MPR II, CCC, WEEE, RoHS -
CONTENIDO DE LA CAJA
LCD Monitor, power cable, 15-pin VGA video cable, DVI-D cable, USB cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language) -
CONECTIVIDAD
Analógico: 15-pin mini D-sub (detachable cable) Digital: 1 x 24-pin DVI-D (detachable cable) (HDCP enabled) Alimentación: Power 3-pin plug (CEE22) USB: 1 x upstream (4-pin Typ B)/4 x downstream (4-pin Typ A), USB 2.0 -
ALIMENTACIóN
Voltaje: AC 100–240V, 50–60Hz (Auto-Switch), internal power supply Consumo: 50 watt (typ., without USB peripherals connected), <1 watt in power save mode -
CONTROLES
Básico: Power, menu [1], up, down, select [2], main power switch Menú en pantalla: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), ViewMatch® colour adjust (sRGB, 9300K, 7500K, 6500K, 5000K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness, DCR [on/off], response time [standard, advanced, ultra-fast], colour space [RGB, YUV]), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background, OSD pivot), auto white balance, OSD/power lock -
CONDICIONES DE FUNCIONAMIENTO
Temperatura: 0° to 40° Humedad: 10% to 90% (non-condensation) -
PESO
Neto con la base: 7.3kg Neto sin la base: 4.9kg Bruto: 9.6kg -
ENTRADA DE VíDEO
Frecuencia: Fh: 24-95kHz, Fv: 50-85Hz Syncronización: H/V separated (TTL), composite, sync on green Analógico: RGB analogue, (0.7/1.0 Vp-p, 75 ohms) Digital: DVI-D (HDCP enabled, TMDS, 100 ohms, DDC/CI) -
GESTIÓN DE ENERGÍA
Meets TCO’03 and ENERGY STAR standards -
SEGURIDAD
Kensington security port -
MONTAJE EN LA PARED
VESA FDMI 100mm x 100mm -
ERGONOMÍA
Inclinación: Down 5°, Up 20° Giratoria: 120° (60°left/60° right) Ajuste de altura: 0~120mm Pivote: 0°–90°
