Pantalla LCD

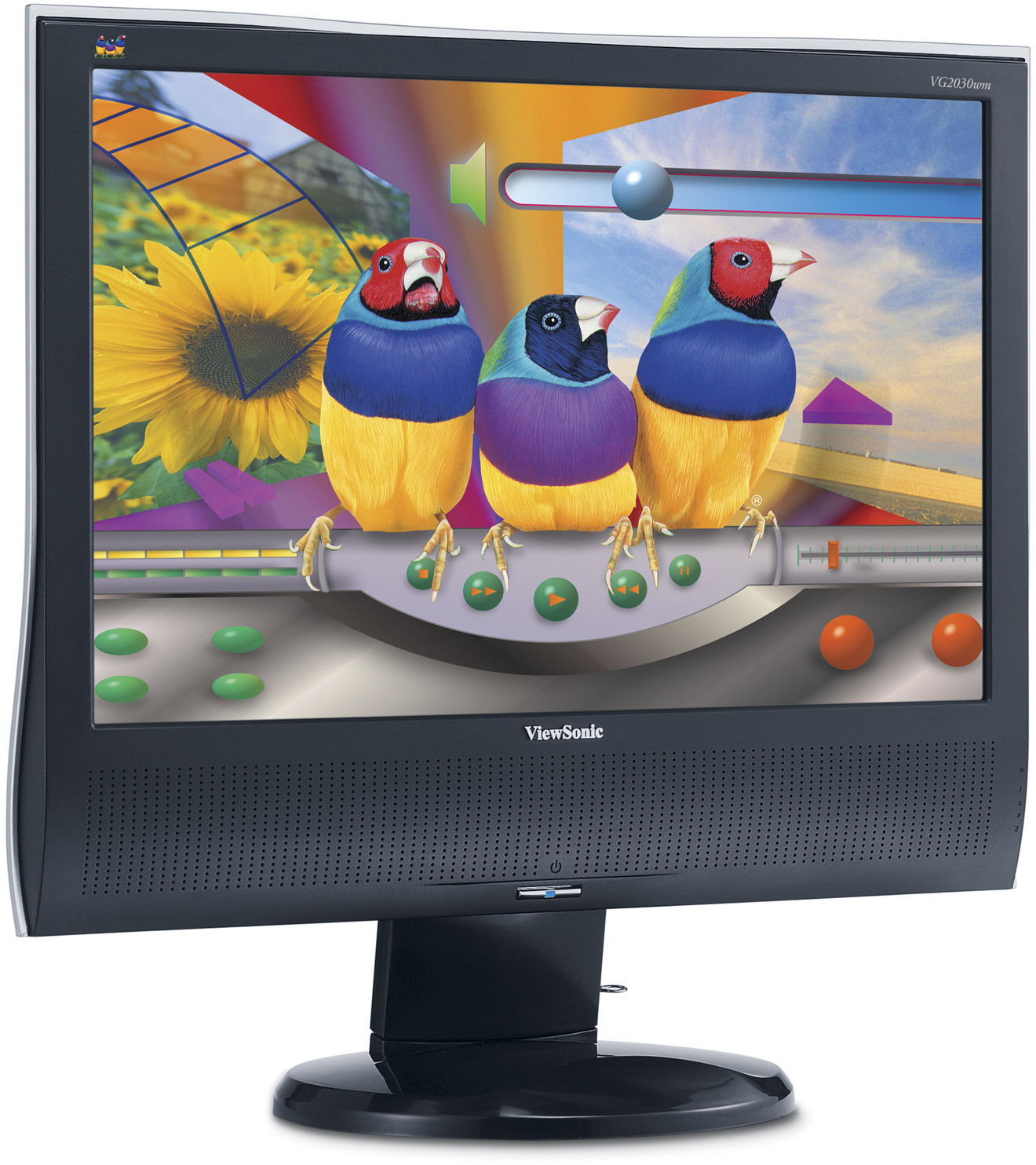

VG2030wm
Caraterísticas principales
Descripción del producto
The ViewSonic 20” VG2030wm features 16:10 WIDESCREEN format with 1680 x 1050 optimum resolution and ERGONOMIC HEIGHT ADJUSTMENT. View two documents side-by-side or work in two applications simultaneously to improve productivity. High 300cd/m²brightness and ultra-high 800:1 contrast ratio produce bright, crisp, detailed images. Graphics professionals love the FAST 5MS RESPONSE TIME that delivers blur-free, full motion video. Digital and analogue inputs ensure maximum connectivity options while height adjustment, tilt and 360° swivel settings guarantee the best possible viewing position ensuring you’ll work comfortably for hours. Further, built-in stereo speakers provide multimedia performance without desk clutter. The VG2030wm is the stand-out price/performance choice, offering lifestyle enjoyment and workplace productivity in a single stunning package.
Visita
- www.viewsonic.com
-
COLORS
Black -
LCD
Tipo: 20” Wide TN colour TFT active matrix WSXGA+ LCD Ratio de contraste: 800:1 (typ.) Ángulos de visión: 160° horizontal, 160° vertical (at 10:1)
170° horizontal, 170° vertical (at 5:1)Brillo: 300cd/m² (typ.) Área de visualización: 43.3cm horizontal x 27.1cm vertical; 51.1cm diagonal Resolución óptima: 1680 x 1050@60Hz Tiempo de respuesta: 5ms (off-on-off) (typ.) Fuente de luz: Long life, 60000 hrs. (typ.) Superficie del panel: Anti-glare Tamaño del píxel: 0.258mm Gama de colores: 16.7M colours (6-bit+Hi FRC) Frecuencia de píxel: 165MHz -
COMPATIBILIDAD
PC: VGA up to 1680 x 1050 non-interlaced Mac®: Power Mac™ G3/G4/G5 up to 1680 x 1050 non-interlaced -
DIMENSIONES
Físicas con la base: 493 x 477-557 x 230 Físicas sin la base: 493 x 388 x 70 Embalaje (LxAxP): 565 x 545 x 273 -
NORMATIVAS
TCO'03, GS, ERGO, ISO 13406-2 (pixel failure class II), CB, CE, GOST-R, UL, cUL, FCC-B, ICES-003, NOM, SASO, Energy Star, C-Tick, MIC, BSMI, PSB, MPR II, CCC, WEEE, RoHS -
CONTENIDO DE LA CAJA
LCD Monitor, power cable, 15-pin VGA video cable, audio cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language) -
AUDIO
Altavoces: 2 x 2 watt integrated stereo speakers x 1.5-watt -
CONECTIVIDAD
Analógico: 15-pin mini D-sub (detachable cable) Digital: 24-pin DVI-D (detachable cable) Alimentación: 3-pin AC plug (CEE22) Audio: 3.5mm stereo audio line-in -
ALIMENTACIóN
Voltaje: AC 100–240V, 50/60Hz (auto switch), internal power supply Consumo: 43 watt (typ.), <1 watt in power save mode -
CONTROLES
Básico: Power, menu [1], up, down, select [2], mute Menú en pantalla: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), audio adjust (volume, mute), ViewMatch® colour adjust (sRGB, 9300K, 7500K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall -
CONDICIONES DE FUNCIONAMIENTO
Temperatura: 3°C – 35°C Humedad: 20% – 80% (non-condensation) -
PESO
Neto con la base: 7.0kg Bruto: 9.2kg -
ENTRADA DE VíDEO
Frecuencia: Fh: 24–82kHz, Fv: 50–85Hz Syncronización: H/V separate (TTL), sync on green Analógico: RGB analogue (0.7 Vp-p , 75 ohm) Digital: DVI-D (TMDS, 100 ohm) -
GESTIÓN DE ENERGÍA
Meets TCO’03 and Energy Star® standards -
SEGURIDAD
Kensington® security port -
MONTAJE EN LA PARED
VESA FDMI 100mm x 100mm -
ERGONOMÍA
Inclinación: Down 5°, Up 20° Giratoria: 360° swivel base Ajuste de altura: 0 ~ 80mm
