Pantalla LCD
VG1930wm
Caraterísticas principales
Descripción del producto

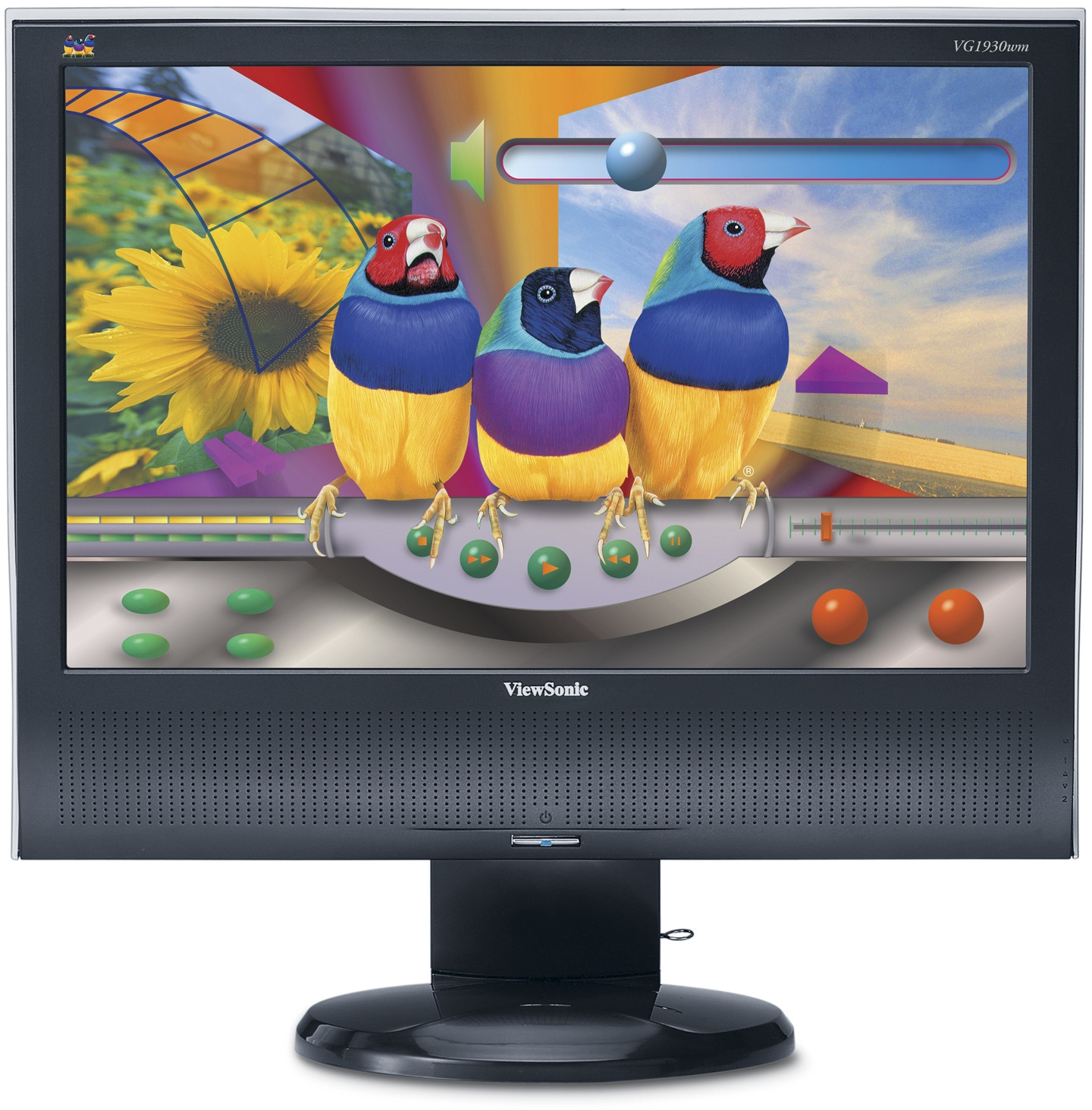

ViewSonic’s 19” VG1930wm combines WIDESCREEN and multimedia performance with ergonomic flexibility. Improve productivity and save time with widescreen versatility. Display multiple pages, larger spreadsheets and more on a single screen without the need to swap. HEIGHT ADJUSTMENT, tilt and 360° swivel features allow the user to set the ergonomic position of the monitor to generate the best possible viewing position. Enjoy high brightness and contrast levels for rich, precise, detailed images and razor sharp text, whilst DIGITAL AND ANALOGUE inputs ensure maximum connectivity options. Built-in stereo-speakers deliver high quality audio performance. The elegantly designed VG1930wm widescreen monitor is the ideal business LCD.
Visita
- www.viewsonic.com
-
COLORS
Black -
LCD
Tipo: 19” Wide TN colour TFT active matrix WXGA+ LCD Ratio de contraste: 700:1 (typ.) Ángulos de visión: 160° horizontal, 160° vertical (at 10:1)
170° horizontal, 170° vertical (at 5:1)Brillo: 300cd/m² (typ.) Área de visualización: 41.0cm horizontal x 25.6cm vertical; 48.3cm diagonal Resolución óptima: 1440 x 900@60Hz Tiempo de respuesta: 5ms (off-on-off) (typ.) Fuente de luz: Long life, 40000 hrs. (typ.) Superficie del panel: Anti-glare Tamaño del píxel: 0.285mm Frecuencia de píxel: 135MHz -
COMPATIBILIDAD
PC: VGA up to 1440 x 900 non-interlaced Mac®: Power Mac™ G3/G4/G5 up to 1440 x 900 -
DIMENSIONES
Físicas con la base: 460 x 434–514 x 230 Físicas sin la base: 460 x 352 x 61 Embalaje (LxAxP): 560 x 525 x 282 -
NORMATIVAS
TCO'03, GS, ERGO, ISO 13406-2 (pixel failure class II), CB, CE, GOST-R, UL, cUL, FCC-B, ICES-003, SASO, ENERGY STAR®, C-Tick, BSMI, PSB, Argentina TUV-S/IRAM/UL-AR S Mark ,MPR II, VCCI, CCC, WEEE, RoHS -
CONTENIDO DE LA CAJA
LCD display, VGA cable, power cable, audio cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language) -
AUDIO
Altavoces: 2 x 1.5 watt integrated speakers Amplificador: 1.5-watt @ THD < 8% -
CONECTIVIDAD
Analógico: 15-pin mini D-sub (detachable cable) Digital: 24-pin DVI-D (detachable cable) Alimentación: 3-pin AC plug (CEE22) Audio: 3.5mm stereo audio line-in -
ALIMENTACIóN
Voltaje: AC 100–240V, 50/60Hz (auto switch), internal power supply Consumo: 35 watt (typ.), <1 watt in power save mode -
CONTROLES
Básico: Power, menu [1], up, down, select [2], mute, volume up/down Menú en pantalla: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), View Match® colour adjust (sRGB, 9300K, 7500K, 6500K, 5400K), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), memory recall -
CONDICIONES DE FUNCIONAMIENTO
Temperatura: 0°C–40°C Humedad: 10%–90% (non-condensing) -
PESO
Neto con la base: 5.4kg Bruto: 6.9kg -
ENTRADA DE VíDEO
Frecuencia: Fh: 24~82kHz, Fv: 50~75Hz Syncronización: H/V separated (TTL) (screen-on-screen) Analógico: RGB analogue (0.7 Vp-p, 75 ohm) Digital: DVI-D (TMDS, 100 ohm) -
GESTIÓN DE ENERGÍA
Meets TCO’03 and ENERGY STAR® standards -
SEGURIDAD
Kensington® security port -
MONTAJE EN LA PARED
VESA FDMI 75mm x 75mm -
ERGONOMÍA
Inclinación: Down 5°, Up 20° Giratoria: 360° swivel base Ajuste de altura: 0~80mm
