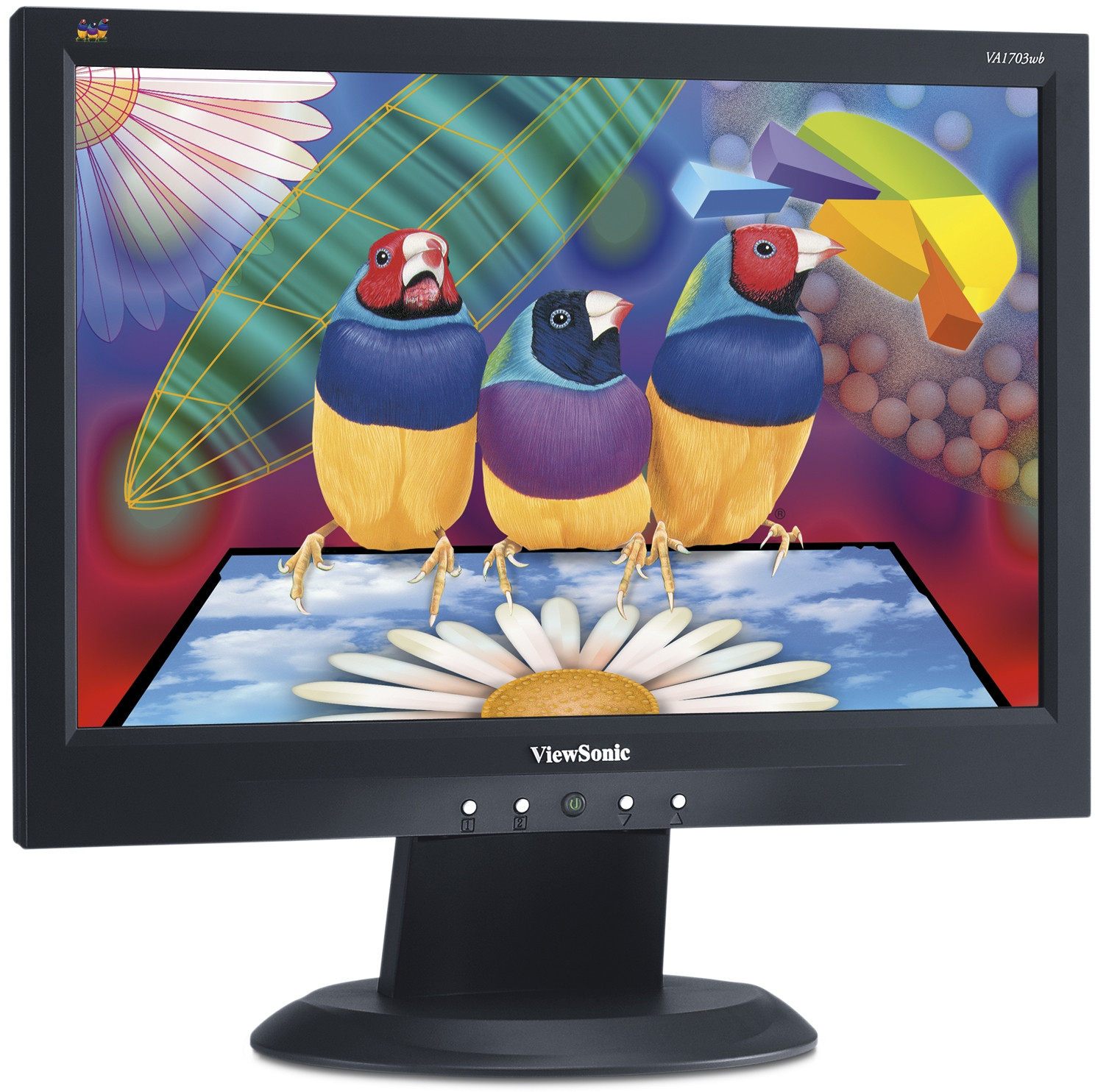

ViewSonic VA1703wb 17” WIDESCREEN LCD MONITOR VA SERIES WITH 8MS VIDEO RESPONSE TIME

Caraterísticas principales

Descripción del producto

ViewSonic's 17” VA1703wb LCD brings panoramic widescreen to everyone. The 16:10 wide aspect ratio and high 1440 x 900 resolution provide AMPLE SPACE FOR MULTIPLE DOCUMENT WINDOWS, side-by-side full-page layouts, and immersive gaming that virtually surrounds the user. With ClearMotiv® video response, you get to enjoy extreme clarity, amazing colour and stunning brightness.The VA1703wb delivers on ViewSonic's tradition of BRILLIANT IMAGE QUALITY AND RELIABLE PERFORMANCE all at an attractive price. It's the easy choice for gamers, home/small office users and corporate professionals.

Visita

www.viewsonic.com

COLORS

Black

LCD

Tipo:	17” Wide TN colour TFT active matrix WXGA+ LCD
Ratio de contraste:	500:1 (typ.)
Ángulos de visión:	150° horizontal, 130° vertical (at 10:1) 160° horizontal, 150° vertical (at 5:1)
Brillo:	250 cd/m² (typ.)
Área de visualización:	36.7cm horizontal x 23.0cm vertical, 43.2cm diagonal
Resolución óptima:	1440 x 900@60Hz
Tiempo de respuesta:	8ms (off-on-off) (typ.)
Fuente de luz:	Long life, 30000 (min.)
Superficie del panel:	Anti-glare (3H)
Tamaño del píxel:	0.255mm
Gama de colores:	262k colours supported (6-bit)
Frecuencia de píxel:	135MHz

COMPATIBILIDAD

PC: VGA up to 1440 x 900 non-interlaced

Mac®: Power Mac™ G3/G4/G5 up to 1440 x 900 non-interlaced
DIMENSIONES

Físicas con la base: 407 x 375 x 210

Físicas sin la base: 407 x 293 x 63

Embalaje (LxAxP): 456 x 420 x 156

NORMATIVAS

GS, ERGO, ISO 13406-2 (pixel failure class II), CE, CB, GOST-R+Hygienic (3 copies), UL, cUL, FCC-B (ICES), ICES-003B, NOM, SASO, ENERGY, ENERGY STAR, C-Tick, MIC, BSMI, PSB, MPR II, VCCI, CCC, WEEE, RoHS

CONTENIDO DE LA CAJA

LCD Monitor, power cable, 15-pin VGA video cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers) (multi-language)
CONECTIVIDAD

Analógico: 15-pin mini D-sub (detachable cable)

Alimentación: 3-pin AC plug (CEE22)
ALIMENTACIóN

Voltaje: AC 100–240V, 50/60Hz (auto switch), internal power supply

Consumo: 25 watt (typ.), <1 watt in power save mode

CONTROLES

Básico:	Power, menu [1], up, down, select [2]
Menú en pantalla:	Auto image adjust, contrast, brightness, ViewMatch® colour adjust (sRGB, 9300K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall

CONDICIONES DE FUNCIONAMIENTO

Temperatura: 0°C – 40°C

Humedad: 10% – 80% (non-condensation)
PESO

Neto con la base: 3.2kg

Neto sin la base: 2.9kg

Bruto: 4.0kg
ENTRADA DE VíDEO

Frecuencia: Fh: 24–82kHz, Fv: 50–75 Hz

Syncronización: H/V separated (TTL)

Analógico: RGB analogue (0.7/1.0 Vp-p, 75 ohm)
GESTIÓN DE ENERGÍA

Meets MPR II and ENERGY STAR standards
SEGURIDAD

Kensington security port
MONTAJE EN LA PARED

VESA FDMI 75mm x 75mm
ERGONOMÍA

Inclinación: Down 5°, Up 20°

PC:	VGA up to 1440 x 900 non-interlaced
Mac®:	Power Mac™ G3/G4/G5 up to 1440 x 900 non-interlaced

Físicas con la base:	407 x 375 x 210
Físicas sin la base:	407 x 293 x 63
Embalaje (LxAxP):	456 x 420 x 156

Analógico:	15-pin mini D-sub (detachable cable)
Alimentación:	3-pin AC plug (CEE22)

Voltaje:	AC 100–240V, 50/60Hz (auto switch), internal power supply
Consumo:	25 watt (typ.), <1 watt in power save mode

Temperatura:	0°C – 40°C
Humedad:	10% – 80% (non-condensation)

Frecuencia:	Fh: 24–82kHz, Fv: 50–75 Hz
Syncronización:	H/V separated (TTL)
Analógico:	RGB analogue (0.7/1.0 Vp-p, 75 ohm)

Neto con la base:	3.2kg
Neto sin la base:	2.9kg
Bruto:	4.0kg
