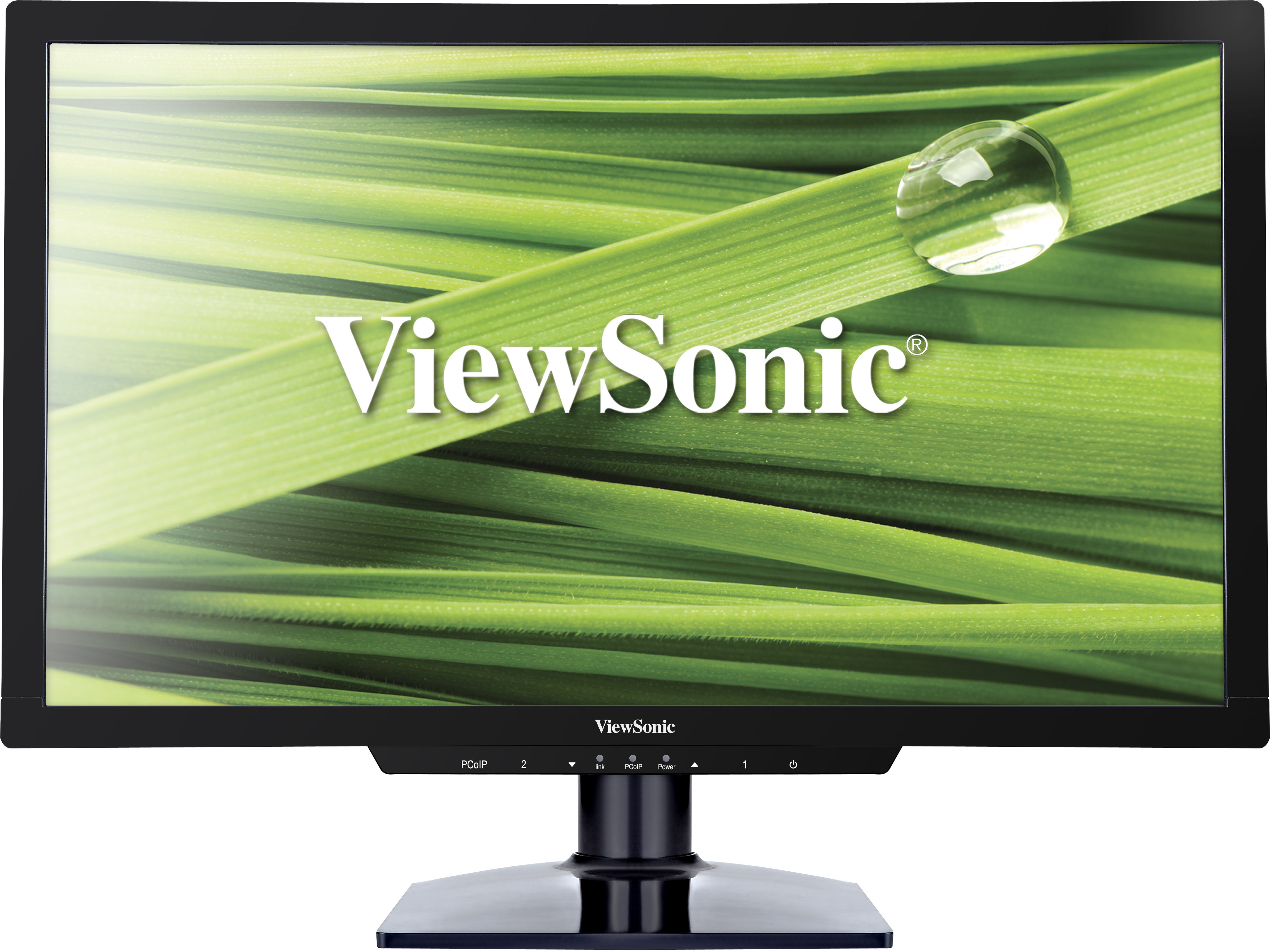

ViewSonic SD-Z225 Perfect Solution for a Seamless Desktop Experience

Caraterísticas principales

Descripción del producto

The ViewSonic® SD-Z225 22" (21.5" viewable) zero client monitor is based on Teradici™ Tera 2321, with hardware accelerated PCoIP™ support. The SD-Z225 zero client is the perfect solution for companies seeking a seamless desktop experience, with ultra-high security and reliability in networks based on VMware ® technology. The SD-Z225 is a true zero client and features no local memory or moving parts for the ultimate in energy savings and reliability. The VMware-certified design guarantees performance and compatibility in your network. With the additional DVI output, flexible support is provided for dual monitor productivity. The eco-friendly design with LED display uses up to 80% less energy consumption than standard PCs.

Visita

www.viewsonic.com

LCD

Tipo:	24" (23.6" viewable) Wide Colour TFT Active Matrix LED
Área de visualización efectiva:	170º horizontal, 160º vertical
Ratio de contraste:	1000:1 (typ.)
Área de visualización:	20.5" horizontal x 11.5" vertical; 23.6" diagonal
Resolución óptima:	1920 x 1080
Tiempo de respuesta:	5ms (typ.)
Superficie del panel:	Anti-glare, hard-coating (3H)
Brillo:	250 cd/m2 (typ.)
Relación de contraste dinámico:	20,000,000:1
Retroiluminación:	White-light LED
Vida útil de retroiluminación:	30,000 hours (min.)

COMPATIBILIDAD

PC: PC compatibles (VGA up to 1920x1080 non-interlaced)

Mac®: Up to 1920x1080

DIMENSIONES

Físicas con la base:	22.3 x 15.5 x 7.5 in. / 566.4 x 392.7 x 189.9 mm
Físicas sin la base:	22.3 x 13.6 x 1.9 in. / 566.4 x 345.4 x 48 mm
Embalaje:	24.8 x 18.4 x 6.2 in. / 630 x 467 x 158 mm

CONECTIVIDAD

Entrada de vídeo:	15-pin mini D-sub (VGA)
Salida de vídeo:	DVI-I (x1)
USB:	USB 2.0 (x4)
Auriculares:	3.5mm mini jack (x1)
Red:	RJ45 (x1)
Entrada de línea:	3.5mm mini jack (x1)
Alimentación:	External power adapter
Entrada micrófono:	3.5mm mini jack (x1)

ALIMENTACIóN

Voltaje: AC 100-240 V (universal), 50/60 Hz

Consumo: 28W (typ)

CONTROLES

Básico:	PCoIP, 2, Down, Up, 1, Power
Menú en pantalla:	Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Colour Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall (See user guide for full OSD functionality)

CONDICIONES DE FUNCIONAMIENTO

Temperatura: 32–95ºF (0–35ºC)

Humedad: 15–90% (non-condensing)
PESO

Neto con la base: 11.2 lb. / 5.1 kg

Neto sin la base: 8.6 lb. / 3.9 kg
MEMORIA

Almacenamiento: None

System: DDR3 512MB @ 1066MHz
ENTRADA DE VíDEO

Analógico/Digital: RGB analog (0.7 / 1.0 Vp-p, 75 ohms)

Frecuencia: Fh: 24~82kHz, Fv: 50~75Hz

Syncronización: Separate Sync
SOPORTE DE PROTOCOLOS

VMware PCoIP
ERGONOMÍA

Inclinación: Forward 5º / Back 20º
SOFTWARE

Protocols: VMware PCoIP
COMUNICACIóN

Red Ethernet: 10/100/1000 MB
GRÁFICO

Chipset: None

Resolución: 1920 x 1200 (for single display)
AUDIO

Altavoces: 2-watt (x2)
NÚCLEO

PROCESADOR: Teradici Tera2321

Image Performance: 50Mpps (DVI out)

PC:	PC compatibles (VGA up to 1920x1080 non-interlaced)
Mac®:	Up to 1920x1080

Temperatura:	32–95ºF (0–35ºC)
Humedad:	15–90% (non-condensing)

Neto con la base:	11.2 lb. / 5.1 kg
Neto sin la base:	8.6 lb. / 3.9 kg

Analógico/Digital:	RGB analog (0.7 / 1.0 Vp-p, 75 ohms)
Frecuencia:	Fh: 24~82kHz, Fv: 50~75Hz
Syncronización:	Separate Sync

PROCESADOR:	Teradici Tera2321
Image Performance:	50Mpps (DVI out)

Voltaje:	AC 100-240 V (universal), 50/60 Hz
Consumo:	28W (typ)

Almacenamiento:	None
System:	DDR3 512MB @ 1066MHz

Chipset:	None
Resolución:	1920 x 1200 (for single display)
