Wichtigste Eigenschaften

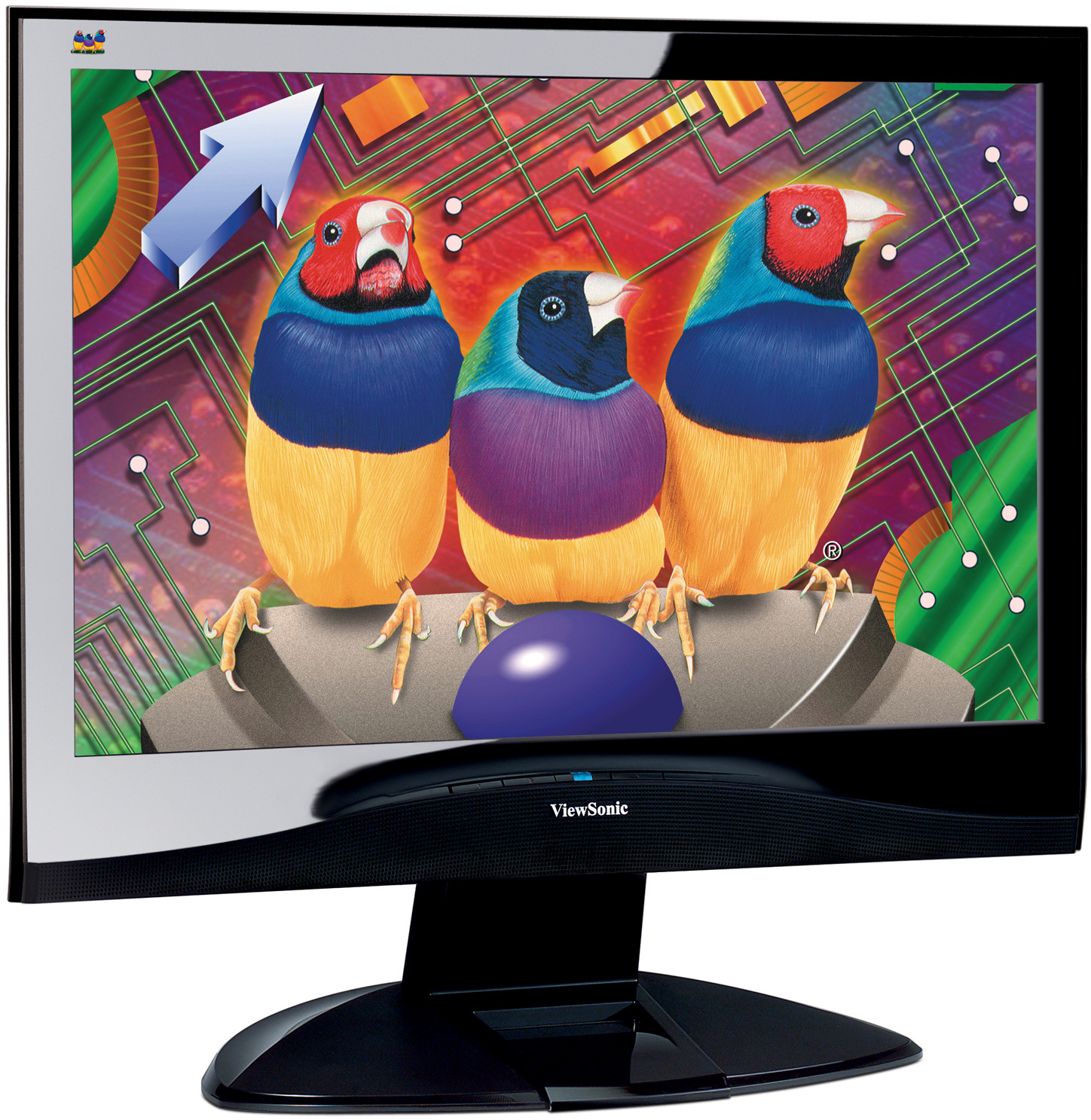

VLED221wm
Produktübersicht
ViewSonic’s 56 cm / 22" VLED221wm widescreen LCD features a mercury-free LED backlight that requires less power than a standard 56 cm / 22" LCD yet produces exceptionally brilliant colour and crystal-clear images. OptiColor 118% NTSC and Super-HD 1680 x 1050 resolution deliver the deepest colour rendition, while the 16:10 widescreen panel allows users to work in two documents or applications side-by-side. Unmatched 12000:1 Dynamic Contrast Ratio (typ.) further supports the VLED221wm’s excellent front-of-screen performance with the blackest blacks and whitest whites. OptiSync digital and analogue inputs and integrated speakers expand this display’s multimedia versatility. Gamers, movie fans, graphic designers and home offi ce users will love the performance and style of the VLED221wm.
Besuchen Sie uns
  • www.viewsonic.com
  • COLORS
    Black
  • LCD
    Typ: 56 cm / 22"Wide TN colour TFT active matrix WSXGA+ LCD
    Kontrastverhältnis: 1000:1 (typ.), 12000:1 DCR (typ.)
    Betrachtungswinkel: 170° horizontal, 160° vertical (at 10:1)

    170° horizontal, 170° vertical (at 5:1)
    Helligkeit: 250cd/m² (typ.)
    Anzeigefläche: 47.4cm horizontal x 29.6cm vertical, 55.9cm diagonal
    Optimale Auflösung: 1680 x 1050@60Hz
    Reaktionszeit: 5ms (off-on-off) (typ.)
    Lichtquelle: LED backlight array
    Panel-Oberfläche: Anti-glare (3H)
    Pixelabstand: 0.282mm
    Farbtiefe: 16.7M colours supported (6-bit+2-bit FRC)
    Pixeltakt: 170MHz
    Farbgamut: Wide colour gamut: 118% NTSC
  • KOMPATIBILITäT
    PC: VGA up to 1680 x 1050 non-interlaced
    Mac®: Power Mac™ up to 1680 x 1050 non-interlaced
  • ABMESSUNGEN
    Physisch mit Fuß: 524 x 482 x 244
    Physisch ohne Fuß: 524 x 355 x 64
    Verpackung (B x H x T): 575 x 522 x 150
  • ZERTIFIKATE
    CE, CB, RGO, ISO 13406-2 (pixel failure class II), UL, cUL, GOST-R+Hygienic, FCC-B, NOM, SASO, ENERGY STAR, C-Tick, BSMI, PSB, TUV-S/IRAM/UL-AR S Mark, MPR II, VCCI, CCC, WEEE, RoHS
  • LIEFERUMFANG
    LCD Monitor, power cable, 15-pin VGA video cable, DVI cable, audio cable, Quick Start Guide, ViewSonic Wizard CD-ROM (multi-language User Guides/drivers and SRS WOW HD software)
  • AUDIO
    Lautsprecher: 2 x 2.5 watt integrated stereo speakers with SRS WOW HD
  • ANSCHLüSSE
    Analog: 15-pin mini D-Sub (detachable cable)
    Digital: 24-pin DVI-D (detachable cable) (HDCP enabled)
    Stromversorgung: 3-pin AC plug (CEE22)
    Audioeingang: 3.5mm stereo audio line-in
  • STROMVERSORGUNG
    Spannung: AC 100–240 V, 50–60 Hz (auto switch), internal power supply
    Verbrauch: 36 watt (typ.), <1 watt in power save mode
  • BEDIENUNGSELEMENTE
    Grundausstattung: Power, menu [1], select [2], up, down
    OSD: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), Audio adjust (volume, mute), ViewMatch® colour adjust (sRGB, 9300K, 7500K, 6500K, 5000K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language [11 options], resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall
  • BETRIEBSBEDINGUNGEN
    Temperatur: 5°C – 35°C
    Feuchtigkeit: 20% – 80% (non-condensation)
  • GEWICHT
    Netto mit Fuß: 6.0kg
    Netto ohne Fuß: 4.8kg
    Verpackung: 7.5kg
  • VIDEOEINGANG
    Frequenz: Fh: 30–82kHz, Fv: 50–75Hz
    Synchronisierung: H/V separate (TTL), composite, sync on green
    Analog: RGB analogue (0.7/1.0 Vp-p, 75 ohm, DDC/CI)
    Digital: DVI-D (HDCP enabled, TMDS, 100 ohm, DDC/CI)
  • ENERGIEVERWALTUNG
    Meets ENERGY STAR standards
  • SICHERHEIT
    Kensington® security port
  • WANDHALTERUNG
    VESA FDMI 100mm x 100mm
  • ERGONOMIE
    Neigung: Down 5°, Up 17°
